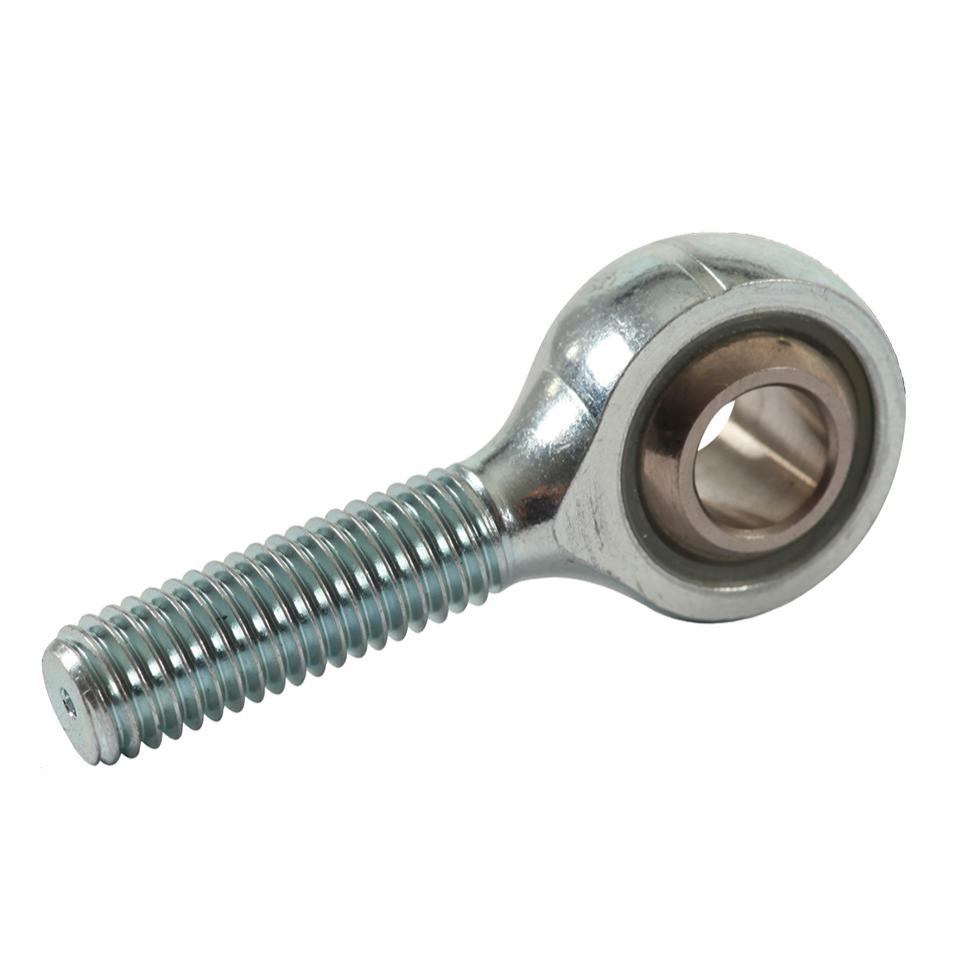

MBL-M20 Dunlop Left Hand Metric Steel / Bronze Male Rod End M20x2.50 Thread 20mm Bore

In stock
SKU: MBL-M20-DUNLOP
MBL-M20 Dunlop Maintenance required steel / bronze lined left hand metric male rod end M20x2.50 thread 20mm bore
£20.52 inc.VAT
£17.10 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor Dunlop
  • SKU MBL-M20-DUNLOP
  • Inside diameter (d) 20mm
Description Delivery Returns
MB Series is our 3-piece standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. An oil impregnated sintered bronze race is also available for some sizes or if quantity justifies production,
suitable for high precision motion transfer applications and extended wear life.

Material Specifications:
Housing: Steel 230M07PB and forged 080M46, zinc plated and clear trivalent passivate. Race: Bronze SAE660. Ball: Bearing steel 100Cr6, hardened and electroless nickel plated. Stud: Steel 230M07PB zinc plated and clear trivalent passivate.

Temperature Range
-34 to +149 degrees

Possible Applications
Medium/heavy industrial/mechanical applications
Construction equipment
Agricultural equipment
Recreational vehicles
Precision equipment

Specification
ELV and RoHS compliant

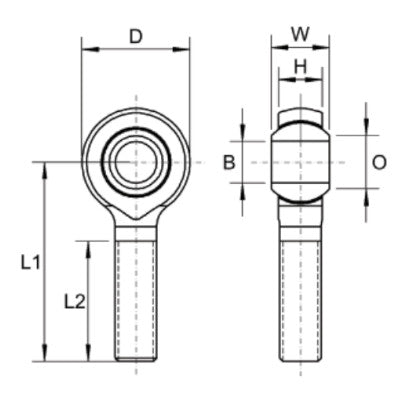

Product Dimensions
Bore Size: 20mm
Thread: M20x2.50
W: 25mm
H: 18.00mm
D: 50mm
L1: 78mm
L2: 46mm
O: 24.50mm
Static load ratings (Newtons) radial: 28,640

Housing
Steel 230M07Pb (Sizes M03 - M12),
Forged 080M46 (Sizes M14 - M25),
Zinc Plated and Clear Trivalent Passivate

Race
Bronze SAE660

Ball
Bearing Steel 100Cr6, Hardened Electro-less Nickel Plated
