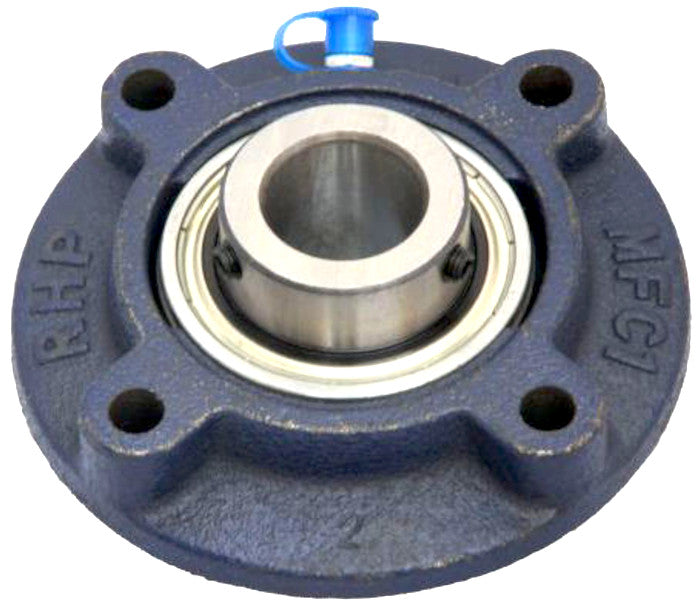

These bearing housings have a round flange which can be easily attached to a machine with four bolts.
Shaft diameter: 1 inch
RHP designation: MFC1
Basic bearing insert: 1030
Casting group: 1

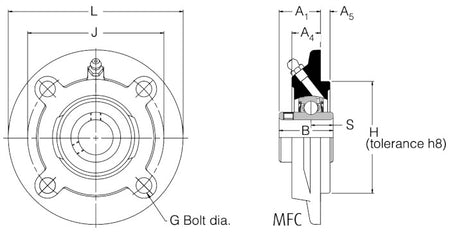

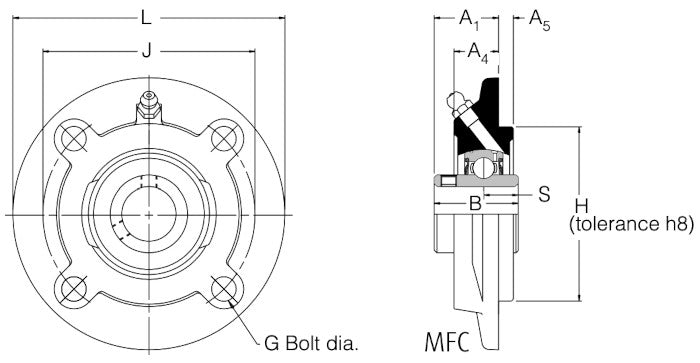

Dimensions (mm)
L: 111.1
H: 76.2
J: 92.1
G: 8
A1: 33.32
A4: 21.00
A5: 6.4
B: 38.10
S: 15.93
ISO Load ratings (newtons)
Dynamic: 19500
Static: 11300
Rec max speed: 5300 rev/min
Mass: 1.4 kg
