MSF100 RHP 4 Bolt Cast Iron Flange Bearing Unit 100mm Bore

In stock
SKU: MSF100-RHP
RHP Heavy Duty 4 Bolt Flange Bearing 100mm shaft diameter

$656.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor RHP
  • SKU MSF100-RHP
  • Inside diameter (d) 100mm
These bearing housings have square flange which can be easily attached to a machine with four bolts. Shaft diameter: 100mm RHP designation: MSF100 Basic bearing insert: 3095 Casting group: 13 Dimensions (mm) L: 267.5 H: 235.5 J: 211.12 G: 24 A: 83.5 A1: 126.95 A4:... Read full description ↓ Show less ↑
These bearing housings have square flange which can be easily attached to a machine with four bolts.

Shaft diameter: 100mm
RHP designation: MSF100
Basic bearing insert: 3095
Casting group: 13

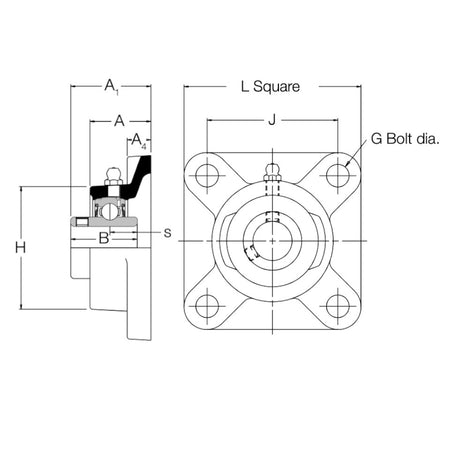

Dimensions (mm)
L: 267.5
H: 235.5
J: 211.12
G: 24
A: 83.5
A1: 126.95
A4: 32.00
B: 117.48
S: 49.31

ISO Load ratings (newtons)
Dynamic: 157000
Static: 122000

Rec max speed: 1600 rev/min

Mass: 24.7 kg
