MSF3.1/2 RHP 4 Bolt Cast Iron Flange Bearing Unit 3.1/2 inch Bore

In stock
SKU: MSF3.1/2-RHP
RHP Heavy Duty 4 Bolt Flange Bearing 3.1/2 inch shaft diameter

$512.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor RHP
  • SKU MSF3.1/2-RHP
  • Inside diameter (d) 88.9mm
These bearing housings have square flange which can be easily attached to a machine with four bolts. Shaft diameter: 3.1/2 inch RHP designation: MSF3.1/2 Basic bearing insert: 1090 Casting group: 12 Dimensions (mm) L: 213.5 H: 196.5 J: 171.45 G: 20 A: 61.7 A1: 100.76... Read full description ↓ Show less ↑
These bearing housings have square flange which can be easily attached to a machine with four bolts.

Shaft diameter: 3.1/2 inch
RHP designation: MSF3.1/2
Basic bearing insert: 1090
Casting group: 12

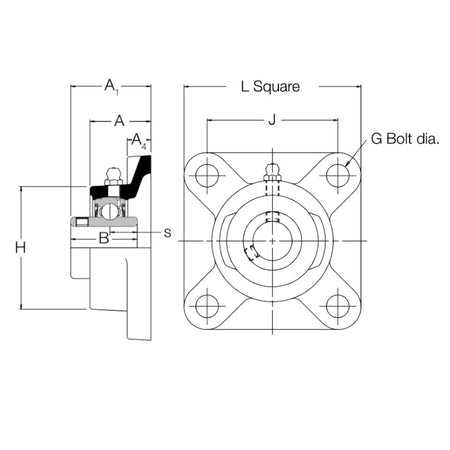

Dimensions (mm)
L: 213.5
H: 196.5
J: 171.45
G: 20
A: 61.7
A1: 100.76
A4: 26.0
B: 96.00
S: 39.74

ISO Load ratings (newtons)
Dynamic: 96000
Static: 71500

Rec max speed: 1900 rev/min

Mass: 13.2 kg
