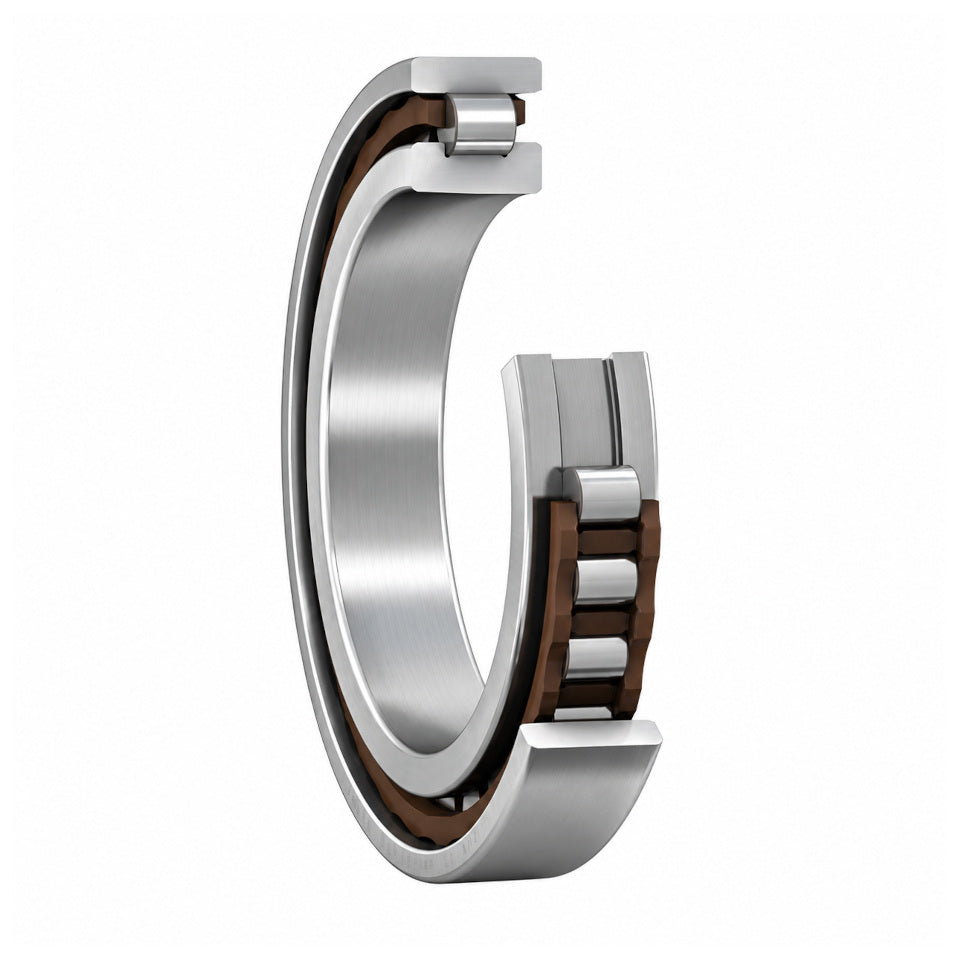

Available from Bearing King Ltd, the SKF N 1010 KPHA/SP is a single-row super precision cylindrical roller bearing featuring a tapered bore and an outer-ring-guided, carbon fibre reinforced PEEK cage.
With a 50 mm bore, 80 mm outside diameter and 16 mm width, this bearing is designed for high-speed precision applications, including machine tool spindles. Its N-type construction features two ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The K designation identifies a 1:12 tapered bore, while PHA specifies the outer-ring-guided, carbon fibre reinforced PEEK cage. SP denotes SKF’s super precision tolerance class.
Manufacturer: SKF
Part number: N 1010 KPHA/SP
Bearing type: Single-row cylindrical roller bearing

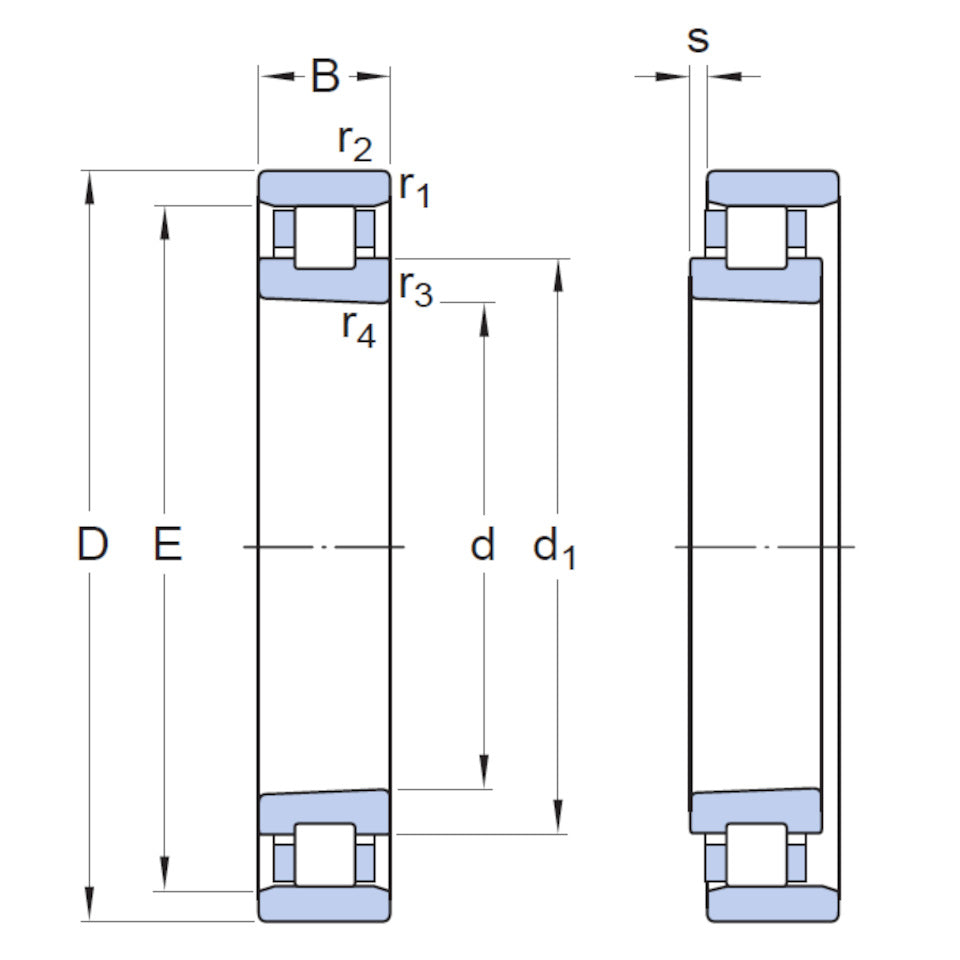

Bore diameter: 50 mm
Outside diameter: 80 mm
Width: 16 mm
Cage: Outer-ring-guided, carbon fibre reinforced PEEK (PHA)
Bore type: 1:12 tapered bore (K)
Precision: SKF super precision class (SP)
Basic dynamic load rating: 28.6 kN
Basic static load rating: 33.5 kN
Approximate weight: 0.260 kg
Order the SKF N 1010 KPHA/SP from Bearing King Ltd for applications requiring this specific combination of dimensions, tapered bore and precision.
