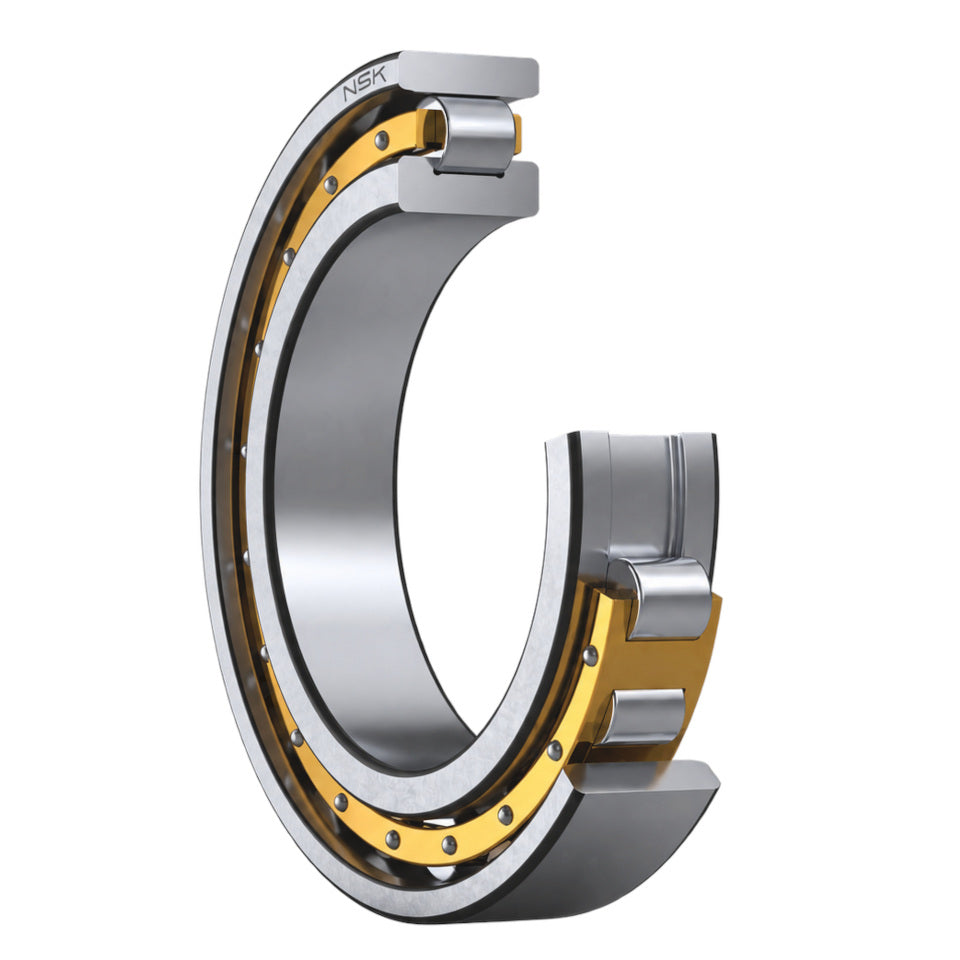

Available from Bearing King Ltd, the NSK N1010MRCCG5P4 is a single-row super precision cylindrical roller bearing featuring a roller-guided machined brass cage, special radial internal clearance and P4 precision accuracy.

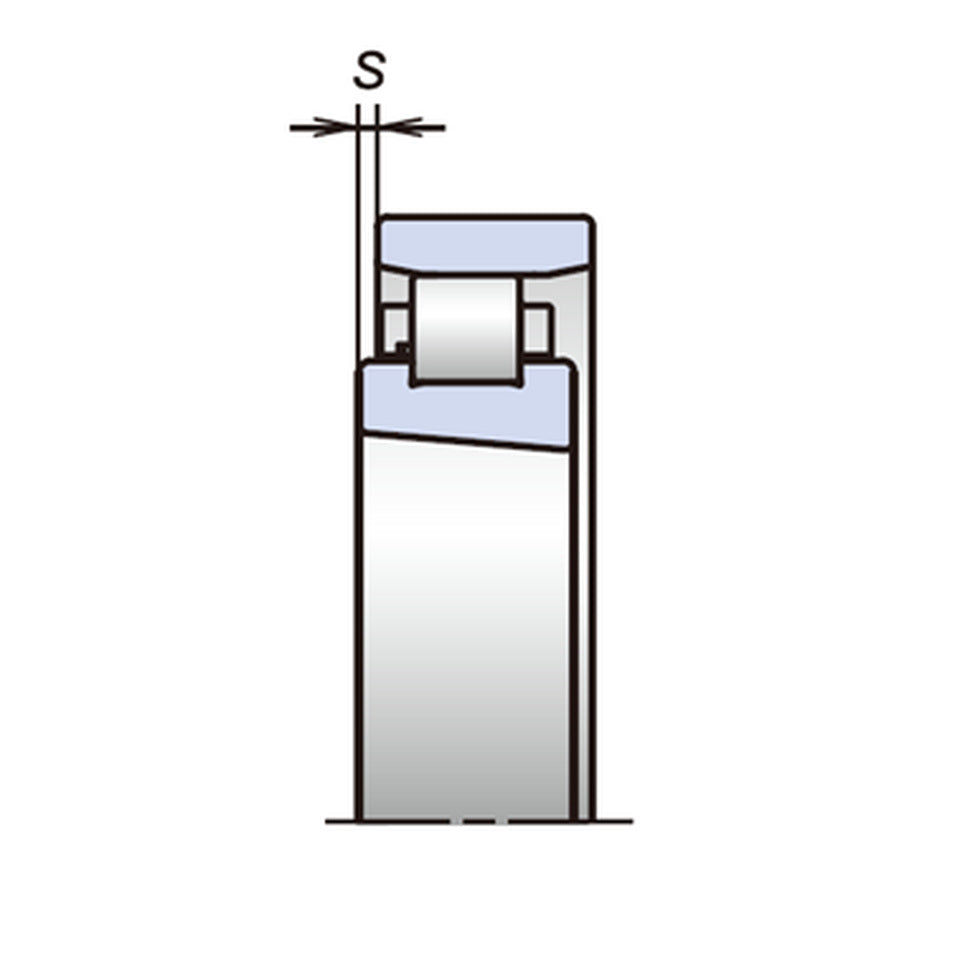

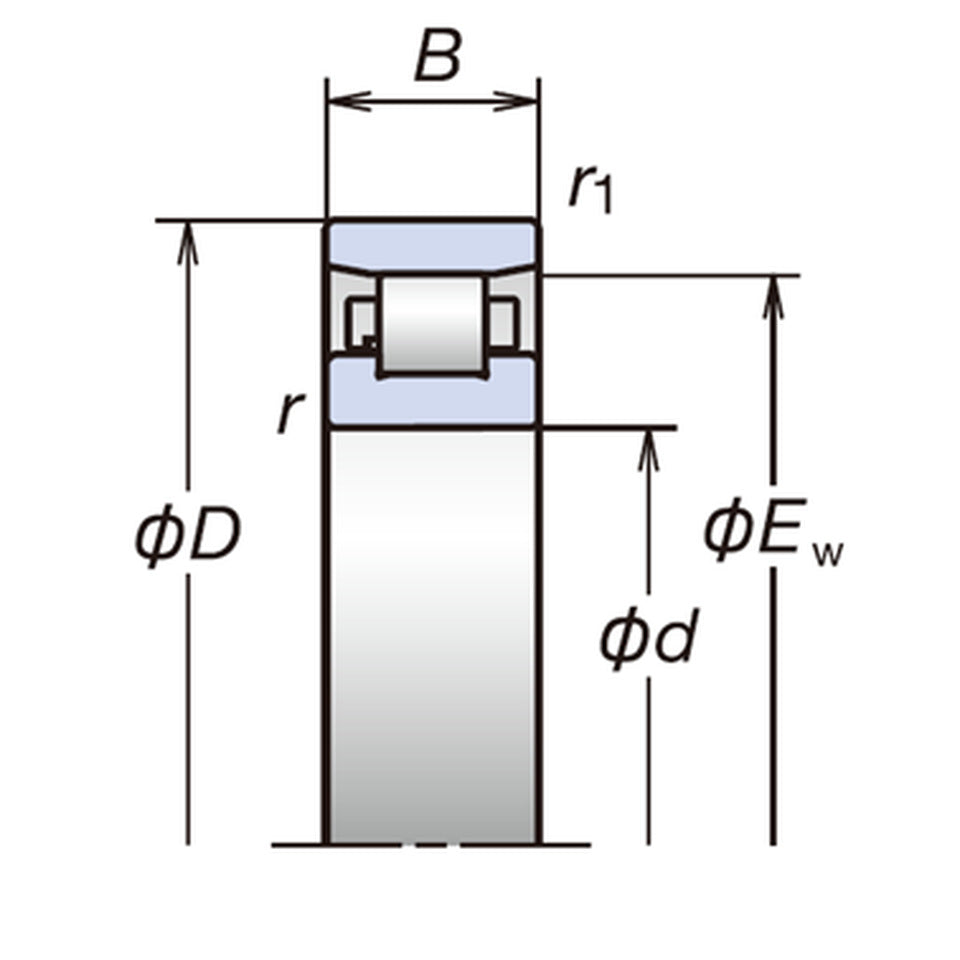

With a 50 mm bore, 80 mm outside diameter and 16 mm width, this bearing combines a compact design with a basic dynamic load rating of 37.0 kN. Its N-type construction features two ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The MR designation identifies the roller-guided machined brass cage, while CCG5 specifies a special median radial clearance of 5 microns. P4 denotes ISO precision class 4 for closely controlled dimensional and running accuracy.
Manufacturer: NSK
Part number: N1010MRCCG5P4
Bearing type: Single-row cylindrical roller bearing
Bore diameter: 50 mm
Outside diameter: 80 mm
Width: 16 mm
Cage: Roller-guided machined brass cage (MR)
Bore type: Cylindrical
Radial internal clearance: Special, 5 µm median (CCG5)
Precision: ISO class 4 (P4)
Basic dynamic load rating: 37.0 kN
Basic static load rating: 36.0 kN
Approximate weight: 0.286 kg
Order the NSK N1010MRCCG5P4 from Bearing King Ltd for applications requiring this specific combination of size, clearance and precision.
