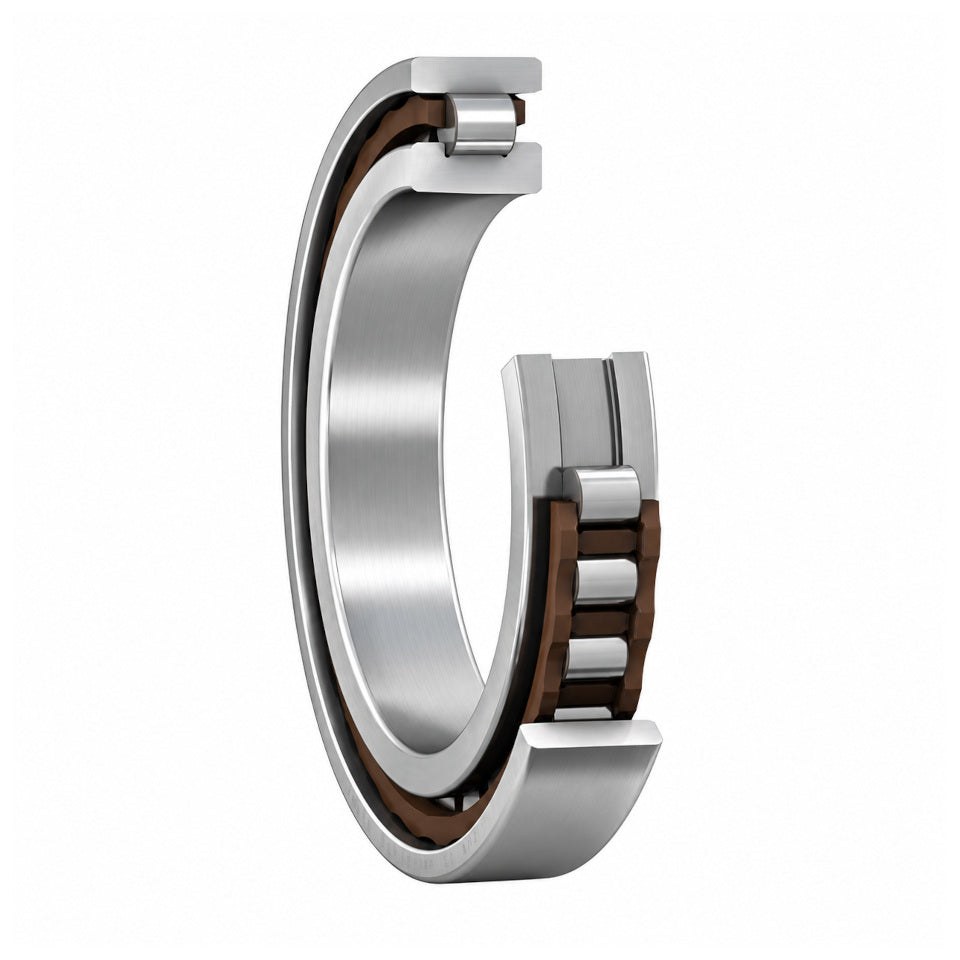

Available from Bearing King Ltd, the SKF N 1011 PHA/SPVR522 is a single-row super precision cylindrical roller bearing featuring a cylindrical bore and an outer-ring-guided PEEK cage.
With a 55 mm bore, 90 mm outside diameter and 18 mm width, this bearing is designed for high-speed precision applications, including machine tool spindles. Its N-type construction features two ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The PHA designation identifies the outer-ring-guided PEEK cage, while SP denotes SKF’s super precision tolerance class. VR followed by three digits identifies bearings with special final inspection and documentation, as specified by the VR522 suffix.
Manufacturer: SKF
Part number: N 1011 PHA/SPVR522
Bearing type: Single-row cylindrical roller bearing
Bore diameter: 55 mm
Outside diameter: 90 mm
Width: 18 mm
Cage: Outer-ring-guided PEEK (PHA)
Bore type: Cylindrical
Precision: SKF super precision class (SP)
Basic dynamic load rating: 37.4 kN
Basic static load rating: 44.0 kN
Approximate weight: 0.380 kg
VR522: Bearings with special final inspection and documentation
Order the SKF N 1011 PHA/SPVR522 from Bearing King Ltd for applications requiring this exact bearing designation.
