Available from Bearing King Ltd, the NSK N1011RXTPCCG12P4Y is a single-row super precision cylindrical roller bearing from the NSKROBUST range, featuring SHX heat-resistant steel, an outer-ring-guided PEEK resin cage and special radial internal clearance.

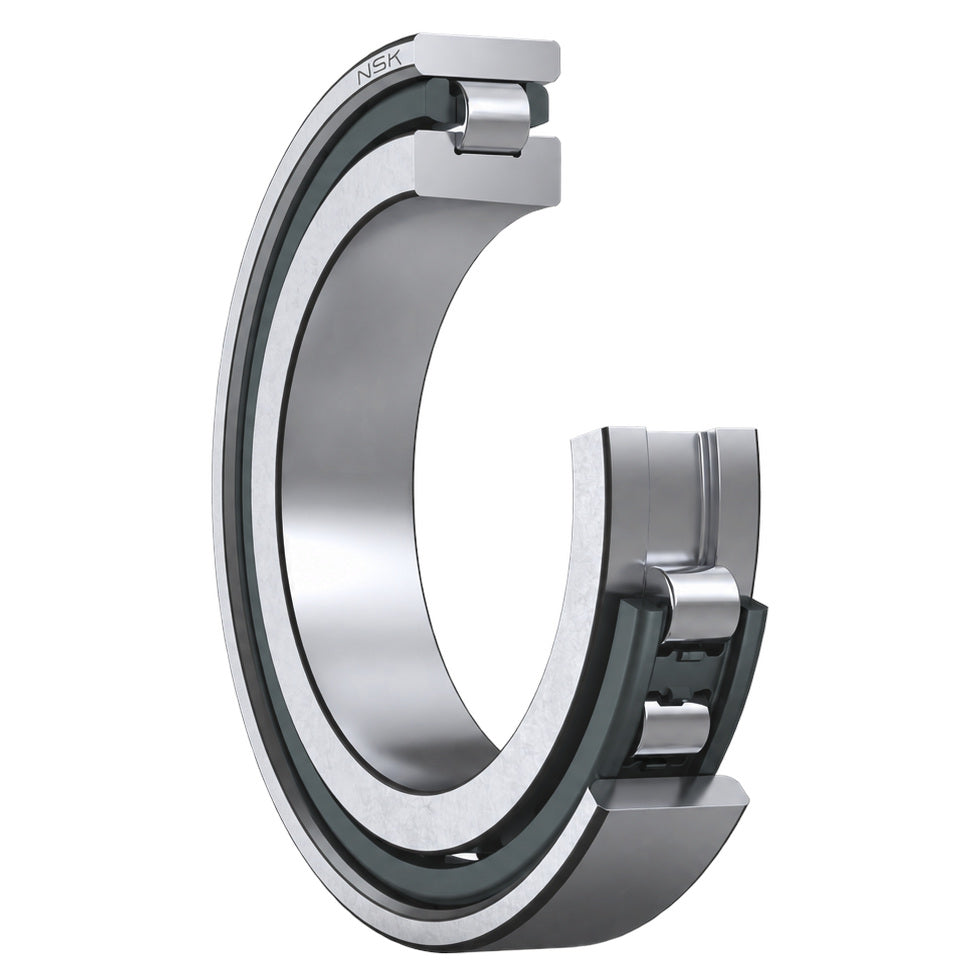

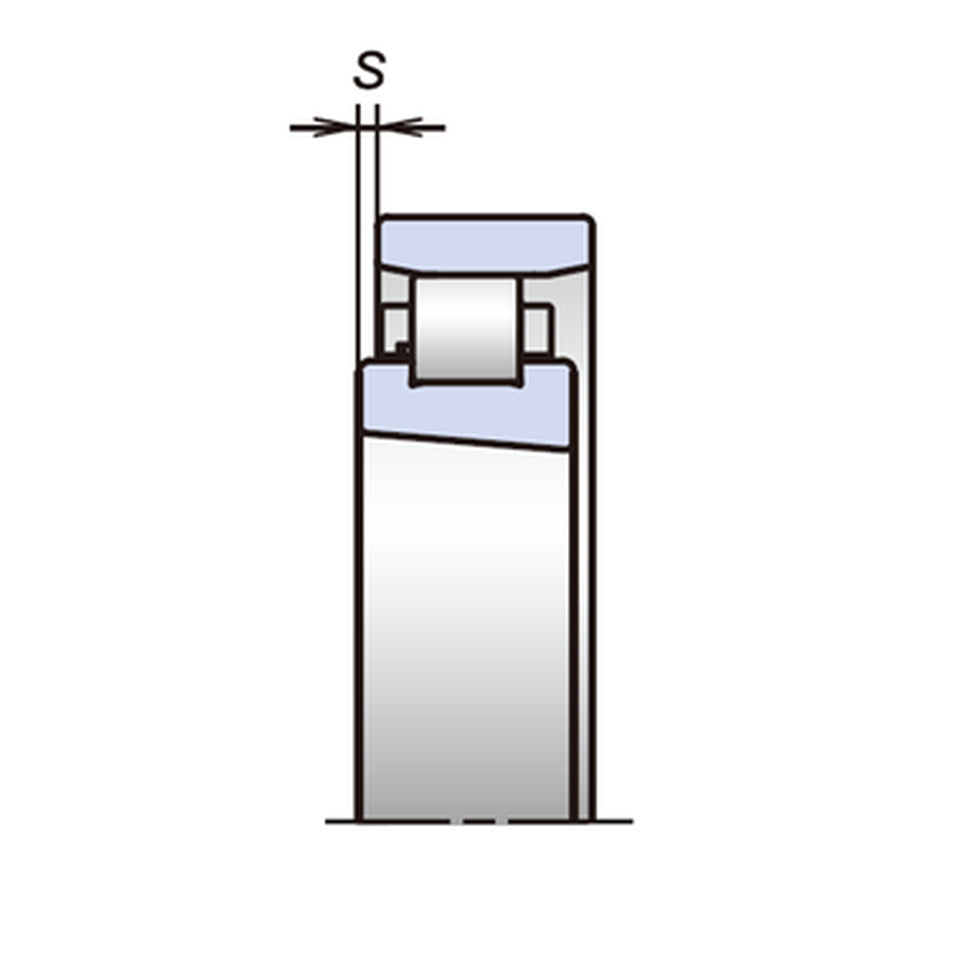

With a 55 mm bore, 90 mm outside diameter and 18 mm width, this bearing is designed for high-speed precision applications. Its N-type construction features two ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The RX designation identifies SHX heat-resistant steel, while TP specifies the outer-ring-guided PEEK resin cage. CCG12 denotes a special median radial internal clearance of 12 microns (0.012 mm). P4Y combines NSK’s special bore and outside diameter tolerances with ISO class 4 accuracy for the remaining tolerances.
Manufacturer: NSK
Part number: N1011RXTPCCG12P4Y
Bearing type: Single-row cylindrical roller bearing
Range: NSKROBUST

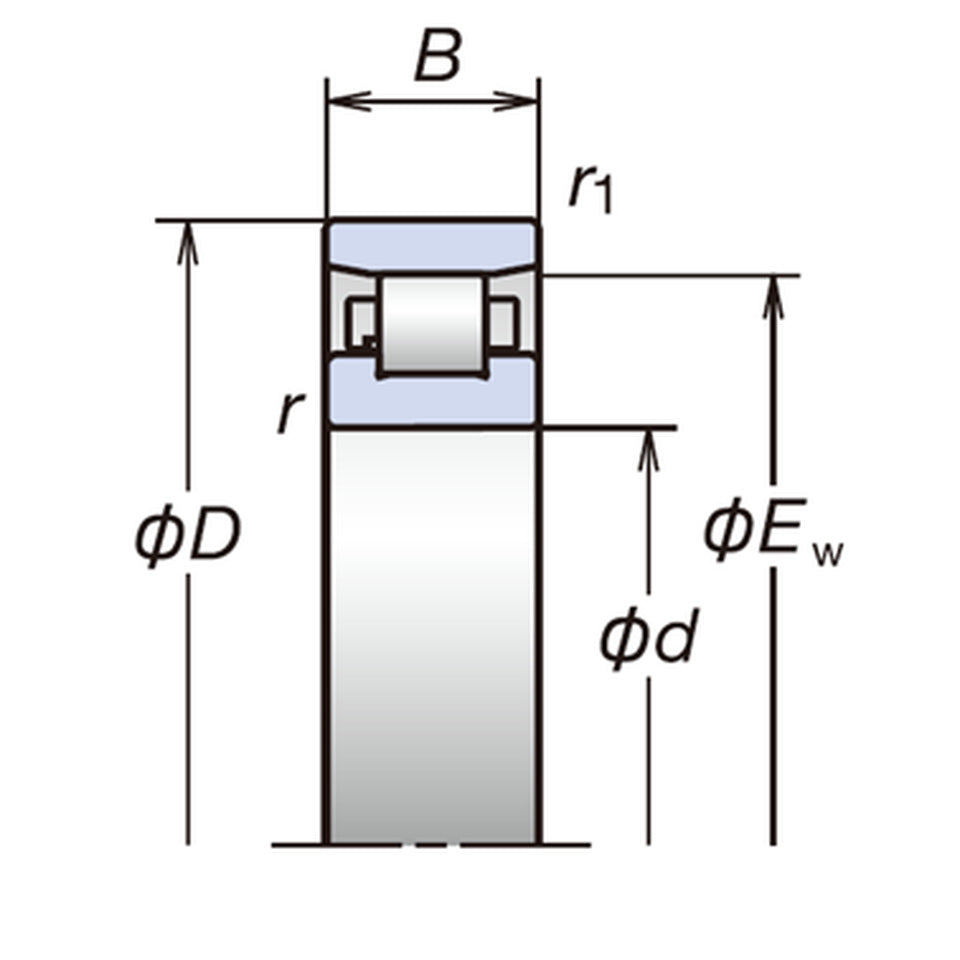

Bore diameter: 55 mm
Outside diameter: 90 mm
Width: 18 mm
Material: SHX heat-resistant steel (RX)
Cage: Outer-ring-guided PEEK resin (TP)
Bore type: Cylindrical
Radial internal clearance: Special, 12 µm median (CCG12)
Precision: NSK P4Y
Basic dynamic load rating: 35.0 kN
Basic static load rating: 39.5 kN
Approximate weight: 0.383 kg
Order the NSK N1011RXTPCCG12P4Y from Bearing King Ltd for applications requiring this specific combination of size, clearance and precision.
