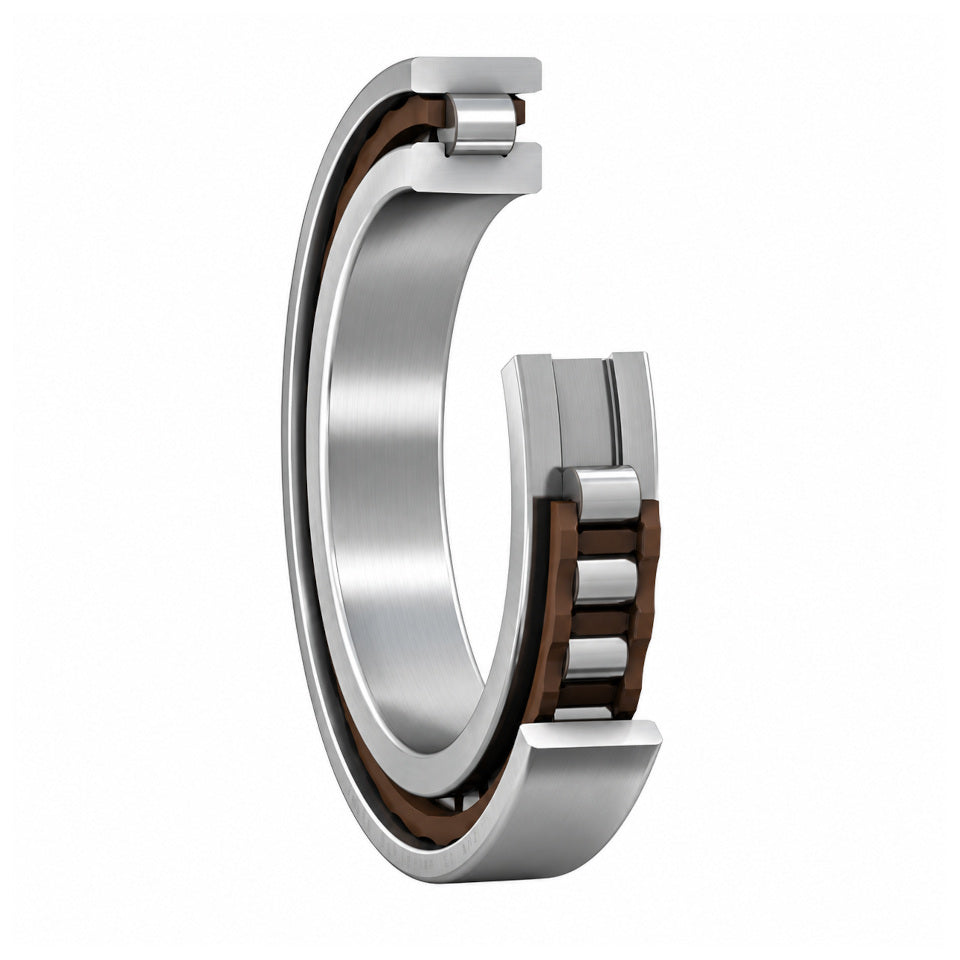

Available from Bearing King Ltd, the SKF N 1012 KPHA/HC5SP is a single-row super precision hybrid cylindrical roller bearing featuring steel rings, silicon nitride ceramic rollers and an outer-ring-guided, carbon fibre reinforced PEEK cage.
With a 60 mm bore, 95 mm outside diameter and 18 mm width, this bearing is designed for high-speed precision applications, including machine tool spindles. Its lightweight ceramic rollers help reduce centrifugal forces and frictional heat during high-speed operation.
The K designation identifies a 1:12 tapered bore, while PHA specifies the outer-ring-guided, carbon fibre reinforced PEEK cage. HC5 denotes silicon nitride ceramic rollers, and SP identifies SKF’s super precision tolerance class.
Manufacturer: SKF
Part number: N 1012 KPHA/HC5SP
Bearing type: Single-row hybrid cylindrical roller bearing
Bore diameter: 60 mm
Outside diameter: 95 mm
Width: 18 mm
Ring material: Bearing steel
Roller material: Silicon nitride ceramic (HC5)
Cage: Outer-ring-guided, carbon fibre reinforced PEEK (PHA)
Bore type: 1:12 tapered bore (K)
Precision: SKF super precision class (SP)
Basic dynamic load rating: 40.2 kN
Basic static load rating: 49.0 kN
Approximate weight: 0.330 kg
Order the SKF N 1012 KPHA/HC5SP from Bearing King Ltd for applications requiring this specific combination of dimensions, hybrid construction and precision.
