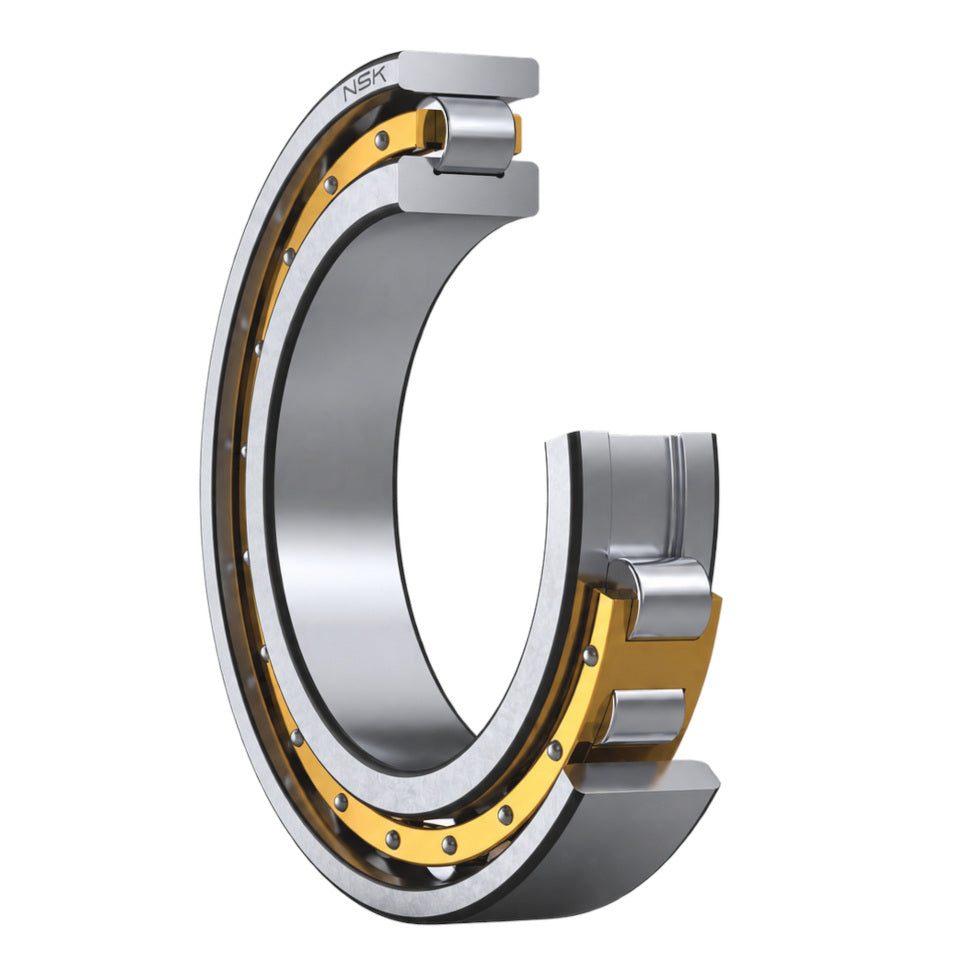

Available from Bearing King Ltd, the NSK N1012MBRCCG5P4 is a single-row super precision cylindrical roller bearing featuring a roller-guided riveted brass cage, special radial internal clearance and P4 precision accuracy.

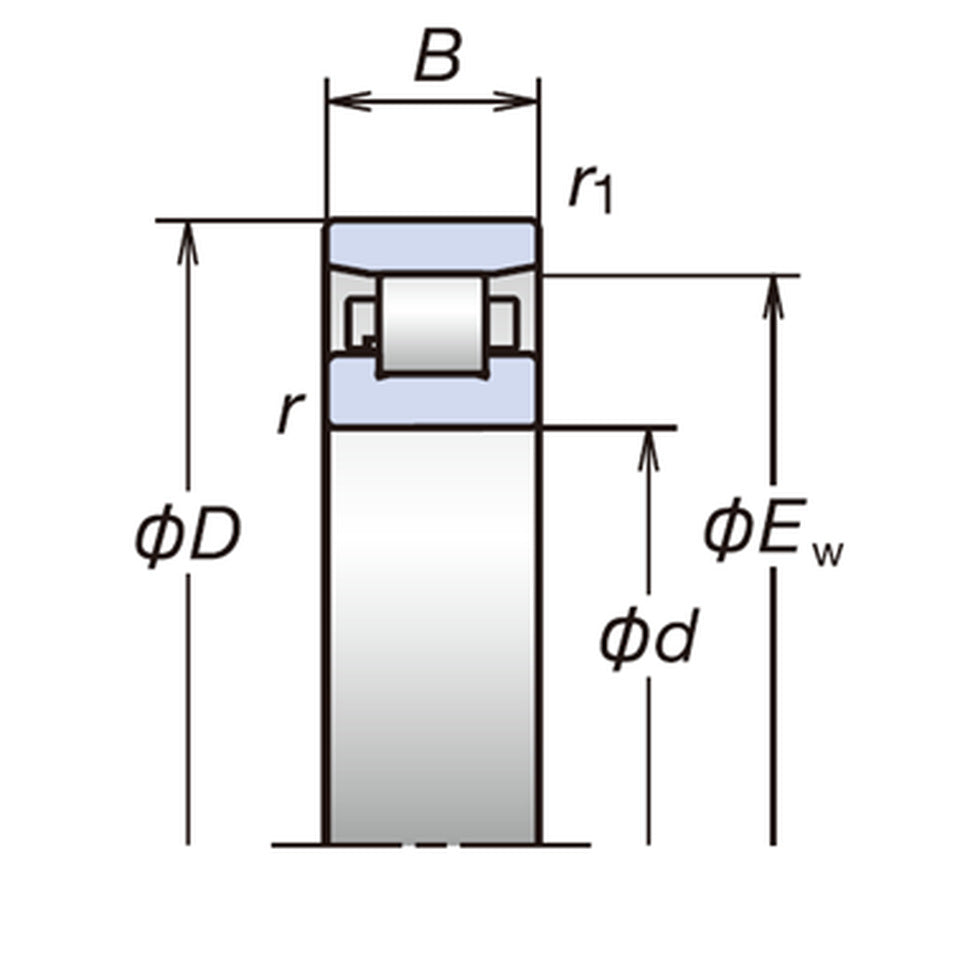

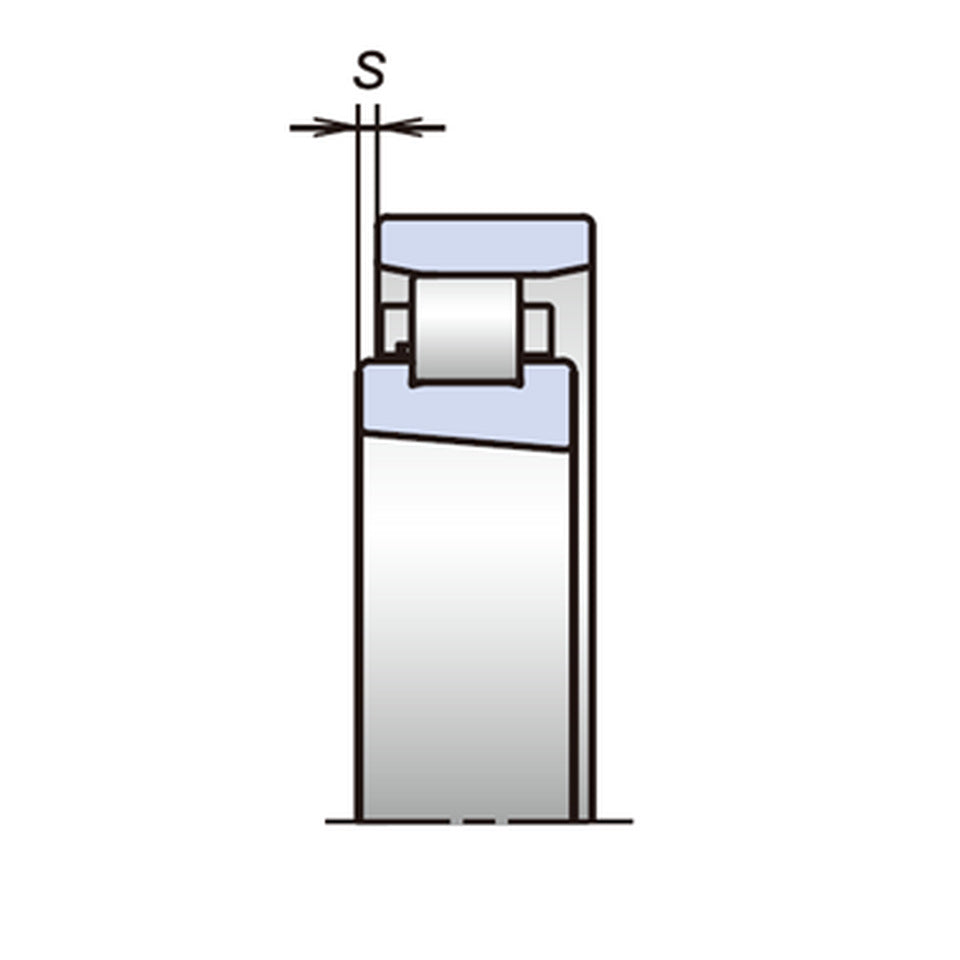

With a 60 mm bore, 95 mm outside diameter and 18 mm width, this bearing provides a compact solution for applications requiring precise radial support. Its N-type construction features two ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The MBR designation identifies the roller-guided riveted brass cage, while CCG5 specifies a special median radial internal clearance of 5 microns (0.005 mm). P4 denotes ISO precision class 4 for closely controlled dimensional and running accuracy.
Manufacturer: NSK
Part number: N1012MBRCCG5P4
Bearing type: Single-row cylindrical roller bearing
Bore diameter: 60 mm
Outside diameter: 95 mm
Width: 18 mm
Cage: Roller-guided riveted brass cage (MBR)
Bore type: Cylindrical
Radial internal clearance: Special, 5 µm median (CCG5)
Precision: ISO class 4 (P4)
Order the NSK N1012MBRCCG5P4 from Bearing King Ltd for applications requiring this specific combination of size, clearance and precision.
