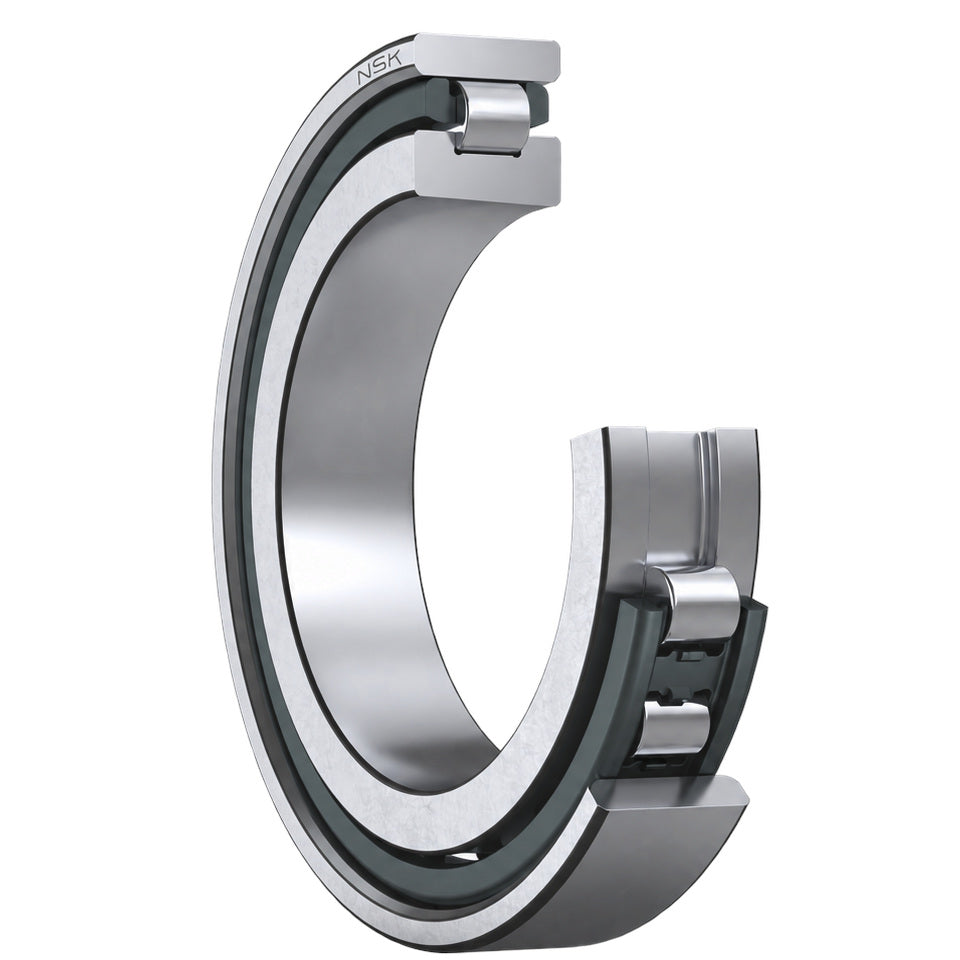

Available from Bearing King Ltd, the NSK N1012RXTPKRCC0P4Y is a single-row super precision cylindrical roller bearing from the NSKROBUST range, featuring SHX heat-resistant steel, an outer-ring-guided PEEK resin cage and a tapered bore.
With a 60 mm bore, 95 mm outside diameter and 18 mm width, this bearing is designed for high-speed precision applications. It has a basic dynamic load rating of 37.5 kN and a basic static load rating of 44.0 kN.
The RX designation identifies SHX heat-resistant steel, while TP specifies the outer-ring-guided PEEK resin cage. KR denotes a 1:12 tapered bore and CC0 identifies the radial internal clearance class. P4Y combines NSK’s special bore and outside diameter tolerances with ISO class 4 accuracy for the remaining tolerances.
Manufacturer: NSK
Part number: N1012RXTPKRCC0P4Y
Bearing type: Single-row cylindrical roller bearing
Range: NSKROBUST

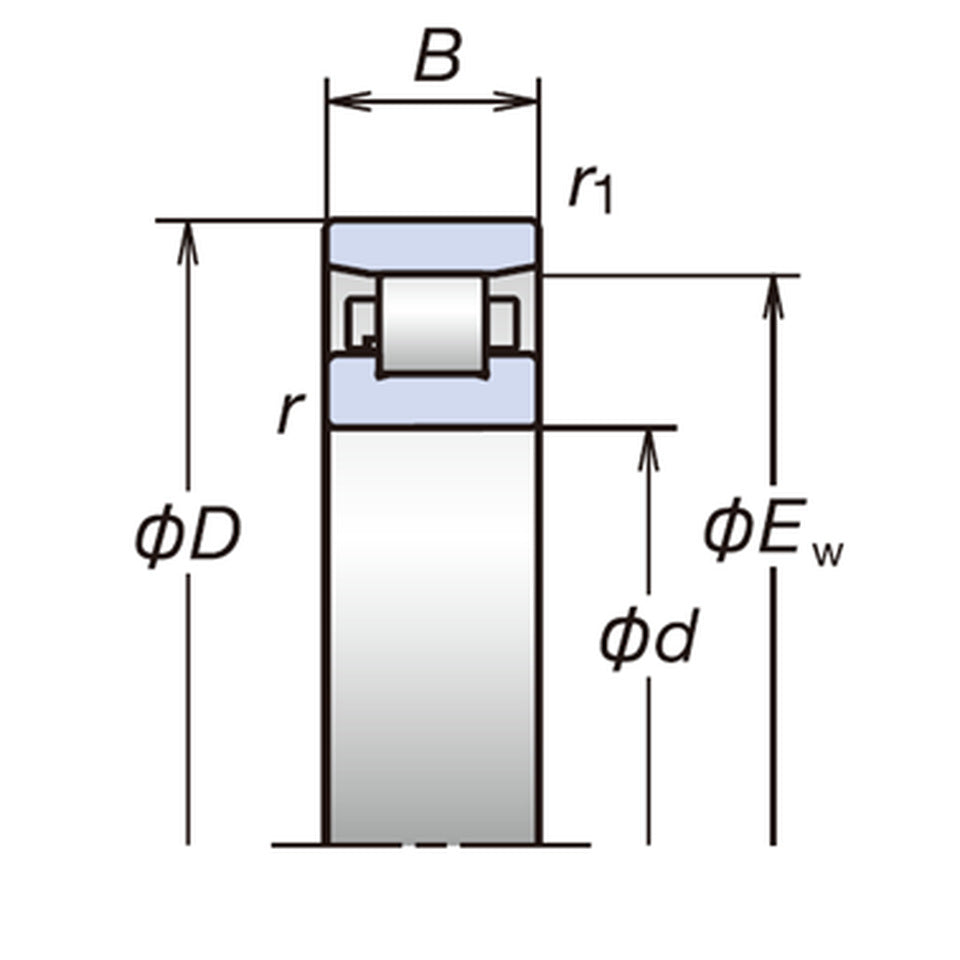

Bore diameter: 60 mm
Outside diameter: 95 mm
Width: 18 mm
Material: SHX heat-resistant steel (RX)
Cage: Outer-ring-guided PEEK resin (TP)
Bore type: 1:12 tapered bore (KR)
Radial internal clearance: CC0, 10–20 µm before mounting
Precision: NSK P4Y
Basic dynamic load rating: 37.5 kN
Basic static load rating: 44.0 kN
Approximate weight: 0.411 kg
Order the NSK N1012RXTPKRCC0P4Y from Bearing King Ltd for applications requiring this specific combination of dimensions, clearance and precision.
