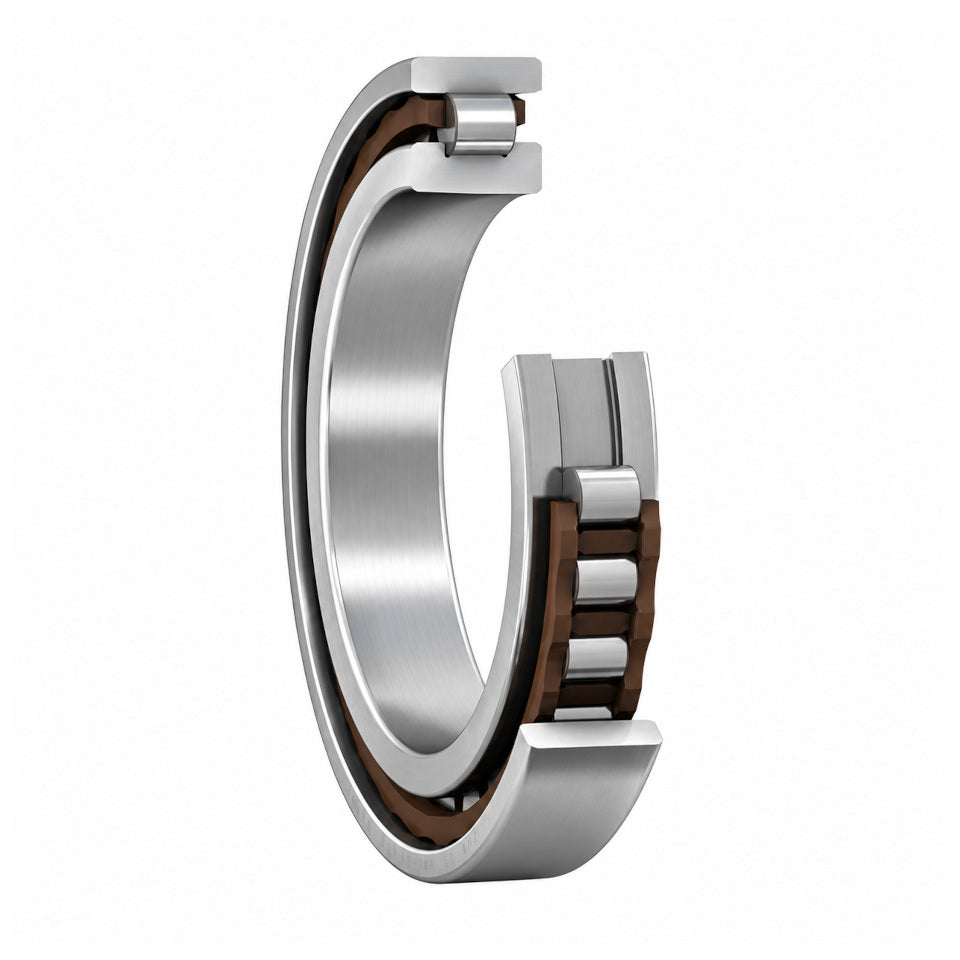

Available from Bearing King Ltd, the SKF N 1017 KTN9/SP is a single-row super precision cylindrical roller bearing featuring a tapered bore and a roller-guided, glass fibre reinforced polyamide 66 cage.

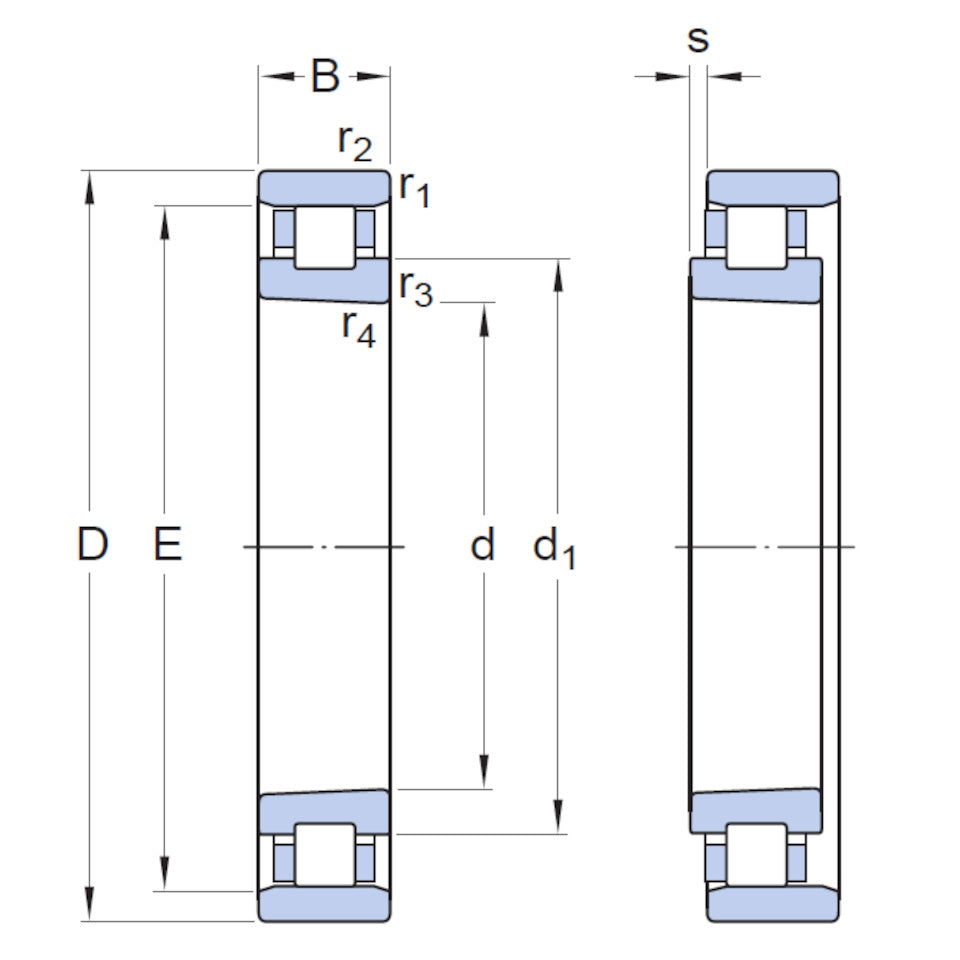

With an 85 mm bore, 130 mm outside diameter and 22 mm width, this bearing is designed for precision applications, including machine tool spindles. Its N-type construction features two ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The K designation identifies a 1:12 tapered bore, while TN9 specifies the roller-guided, glass fibre reinforced polyamide 66 cage. SP denotes SKF’s super precision tolerance class.
Manufacturer: SKF
Part number: N 1017 KTN9/SP
Bearing type: Single-row cylindrical roller bearing
Bore diameter: 85 mm
Outside diameter: 130 mm
Width: 22 mm
Cage: Roller-guided, glass fibre reinforced polyamide 66 (TN9)
Bore type: 1:12 tapered bore (K)
Precision: SKF super precision class (SP)
Basic dynamic load rating: 73.7 kN
Basic static load rating: 102.0 kN
Approximate weight: 0.900 kg
Order the SKF N 1017 KTN9/SP from Bearing King Ltd for applications requiring this specific combination of dimensions, tapered bore and precision.
