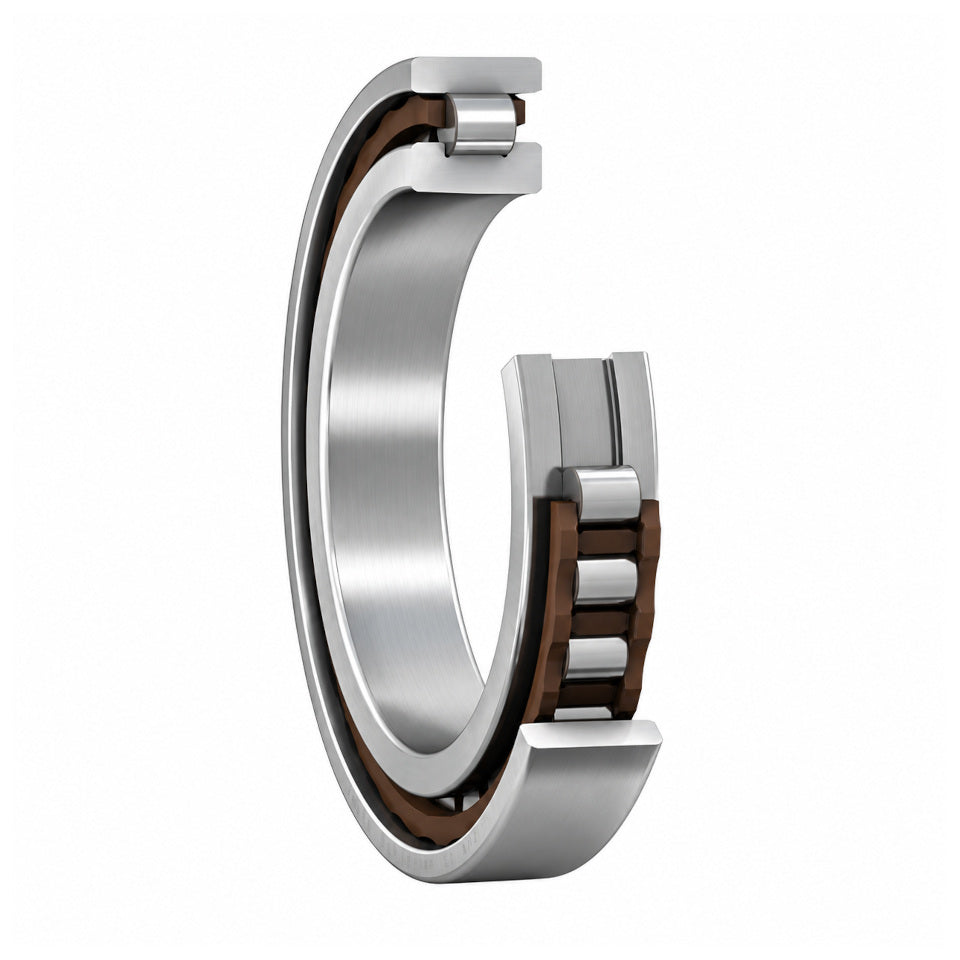

Available from Bearing King Ltd, the SKF N 1024 KTN9/SP is a single-row super precision cylindrical roller bearing featuring a tapered bore and a roller-guided, glass fibre reinforced polyamide 66 cage.
With a 120 mm bore, 180 mm outside diameter and 28 mm width, this bearing is designed for precision applications, including machine tool spindles. Its N-type construction features two ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The K designation identifies a 1:12 tapered bore, while TN9 specifies the roller-guided, glass fibre reinforced polyamide 66 cage. SP denotes SKF’s super precision tolerance class.
Manufacturer: SKF
Part number: N 1024 KTN9/SP
Bearing type: Single-row cylindrical roller bearing

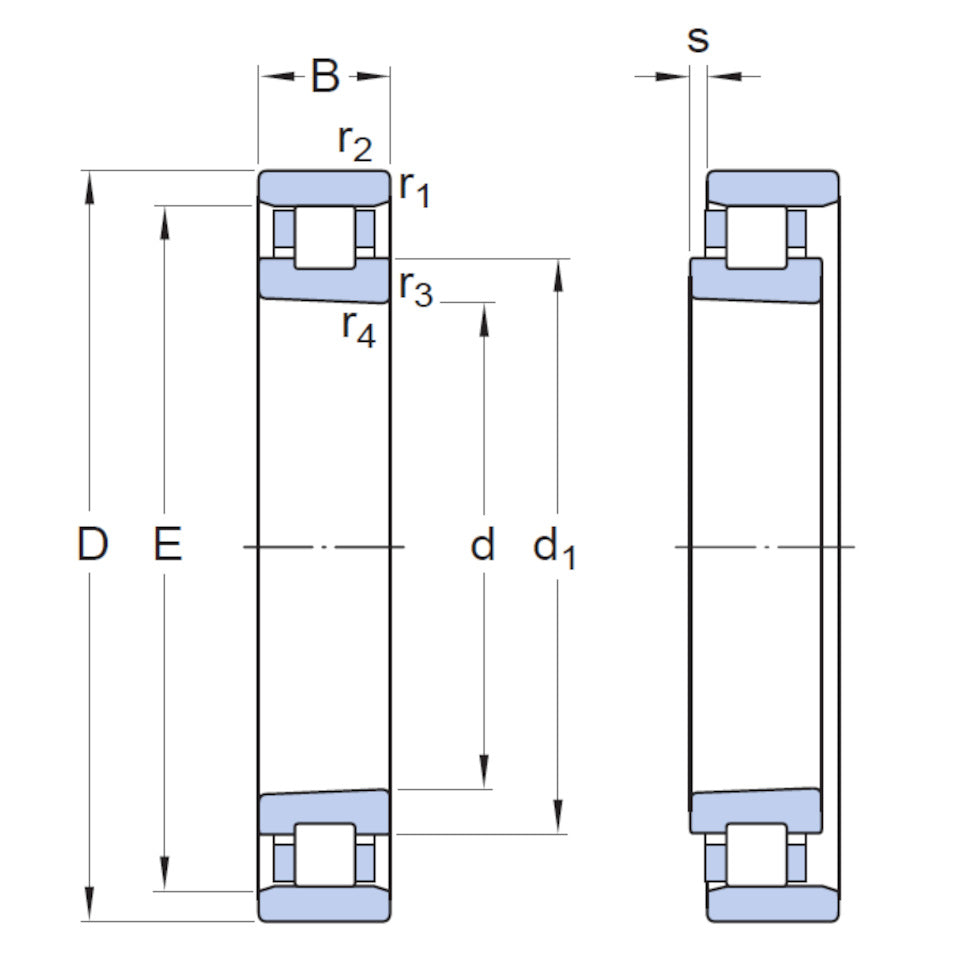

Bore diameter: 120 mm
Outside diameter: 180 mm
Width: 28 mm
Cage: Roller-guided, glass fibre reinforced polyamide 66 (TN9)
Bore type: 1:12 tapered bore (K)
Precision: SKF super precision class (SP)
Basic dynamic load rating: 134.0 kN
Basic static load rating: 196.0 kN
Approximate weight: 2.200 kg
Order the SKF N 1024 KTN9/SP from Bearing King Ltd for applications requiring this specific combination of dimensions, tapered bore and precision.
