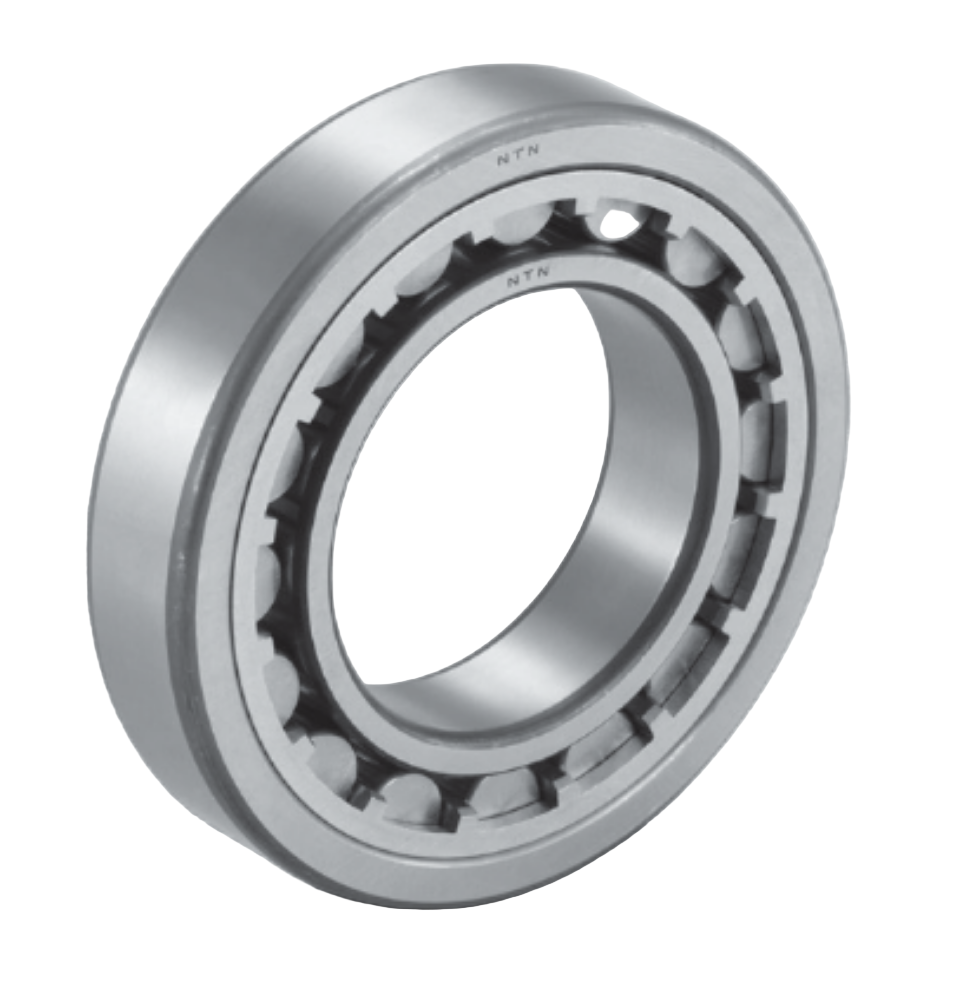

N212C3 NTN Single Row Cylindrical Roller Bearing 60x110x22mm

Name: N212C3 NTN Single Row Cylindrical Roller Bearing 60x110x22mm
Brand: NTN
SKU: N212C3-NTN
Price: 78.82 GBP
Availability: InStock

In stock

SKU: N212C3-NTN

NTN N Design metric single row cylindrical roller bearing with steel cage and C3 clearance 60mm inside x 110mm outside x 22mm wide

£94.58 inc.VAT

£78.82 exc.VAT

Product variants

FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

Vendor NTN
SKU N212C3-NTN
Inside diameter (d) 60mm
Outside diameter (D) 110mm
Width (B) 22mm

NTN N Design
The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 60mm
D: 110mm
B: 22mm
E: 97.5mm
F: 73.5mm
d1: 78.4mm
rs min: 1.5mm
r1s min: 1.5mm
Radial clearance class: C3

Mass: 0.81kg

Basic Load Ratings
Dynamic: 68.5 kN
Static: 75 kN

Fatigue Load Limit: 9.1 kN

Speed Ratings
Nlim (oil): 7,600 Tr/min
Nlim (grease): 6,400 Tr/min

Min operating temperature, Tmin: -40 Degree celsius
Max operating temperature, Tmax: 120 Degree celsius
