SKF N Design
The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

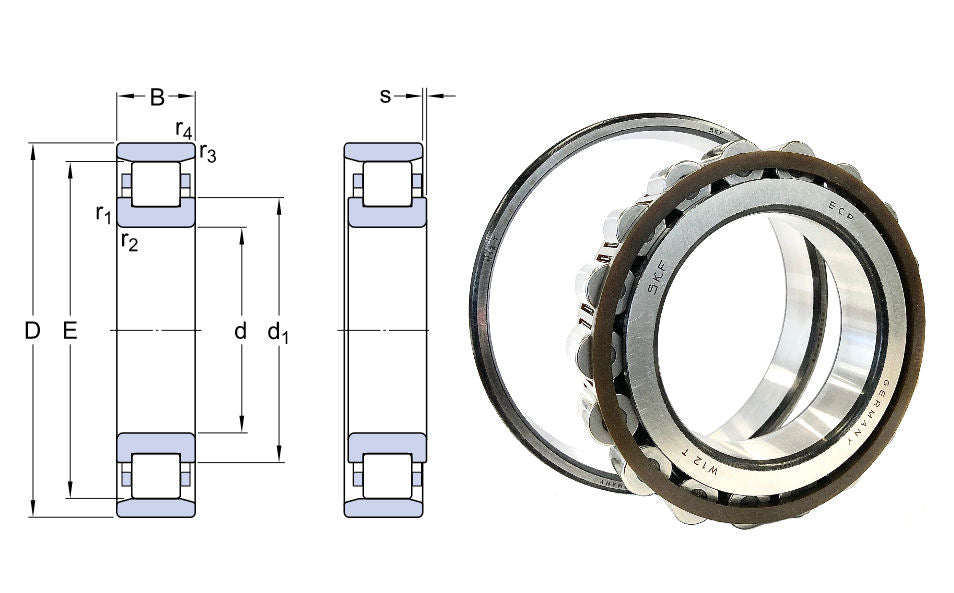

Principal Dimensions
d: 45mm
D: 100mm
B: 25mm
Basic Load Ratings
Dynamic:112 kn
Static: 100 kn
Fatigue Load Limit
12.9 kn
Speed Ratings
Reference speed: 7 500 r/min
Limiting speed: 8 500 r/min
Mass
0.88 kg
Dimensions mm
d1: 64.4
D1: -
r1,2 min: 1.5
r3,4 min: 1.5
S: 1.7
