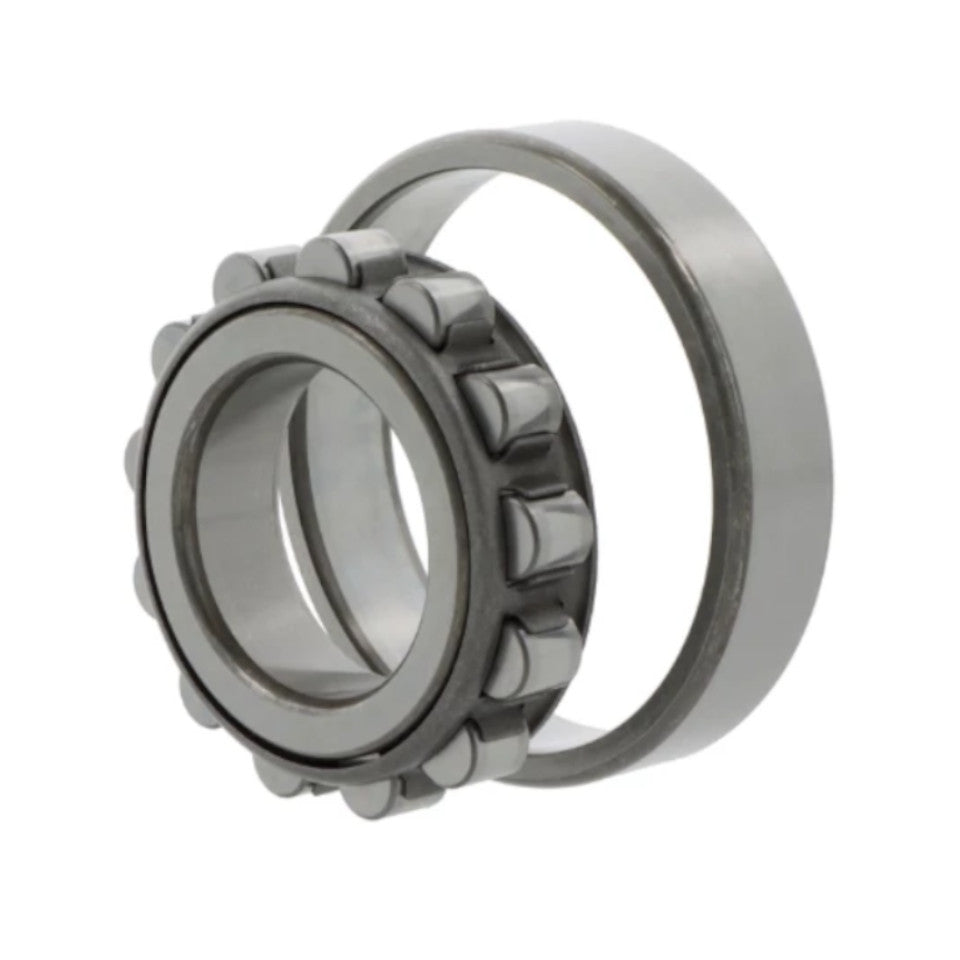

N309W NSK Single Row Cylindrical Roller Bearing 45x100x25mm

In stock
SKU: N309W-NSK
NSK N Design metric single row cylindrical roller bearing with steel cage 45mm inside x 100mm outside x 25mm wide

$115.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor NSK
  • SKU N309W-NSK
  • Inside diameter (d) 45mm
  • Outside diameter (D) 100mm
  • Width (B) 25mm
NSK N Design The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions. Principal Dimensions d: 45mm D: 100mm B:... Read full description ↓ Show less ↑

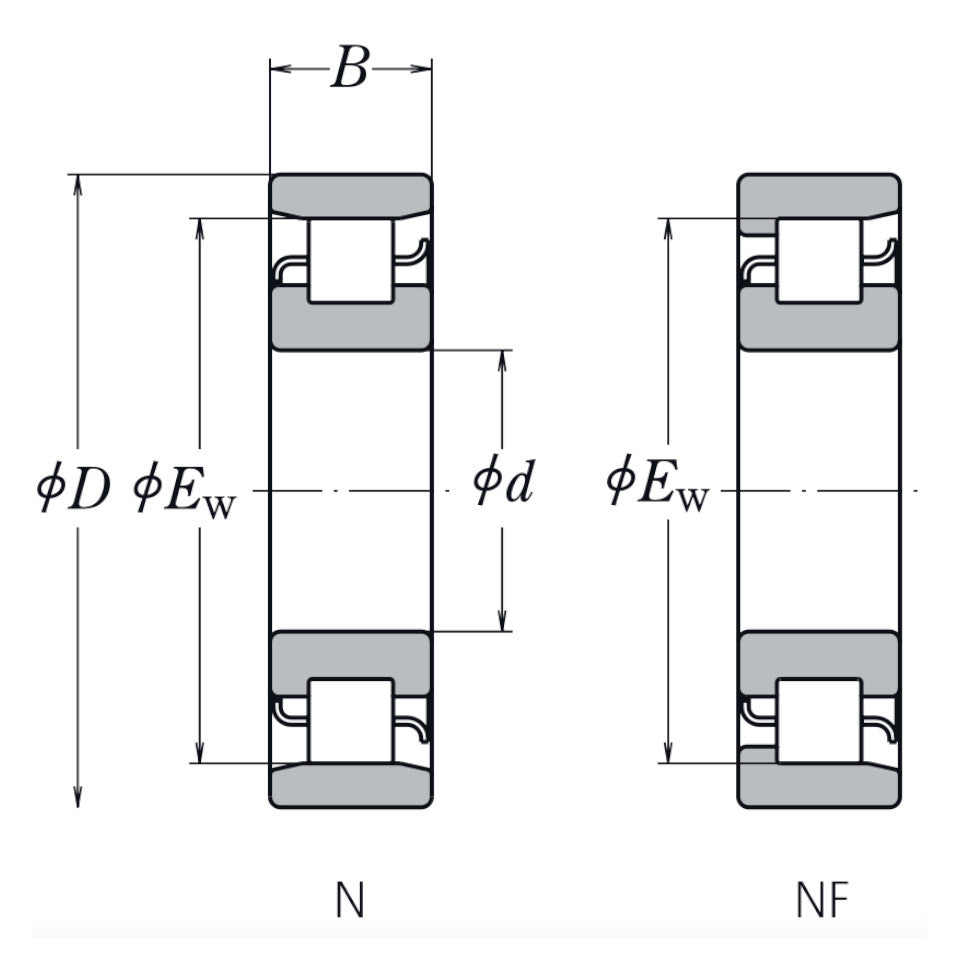

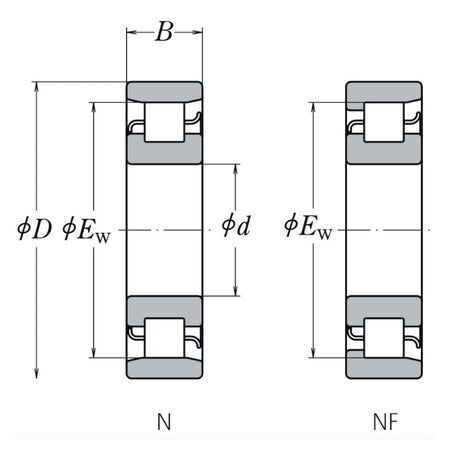

NSK N Design
The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 45mm
D: 100mm
B: 25mm
Fw: -
Ew: 86.5mm

Radial clearance class: Standard

Mass: 0.869kg

Basic Load Ratings
Dynamic: 74 000 N
Static: 71 000 N

Limiting Speeds
Grease: 6 300 min-1
Oil: 7 500 min-1
