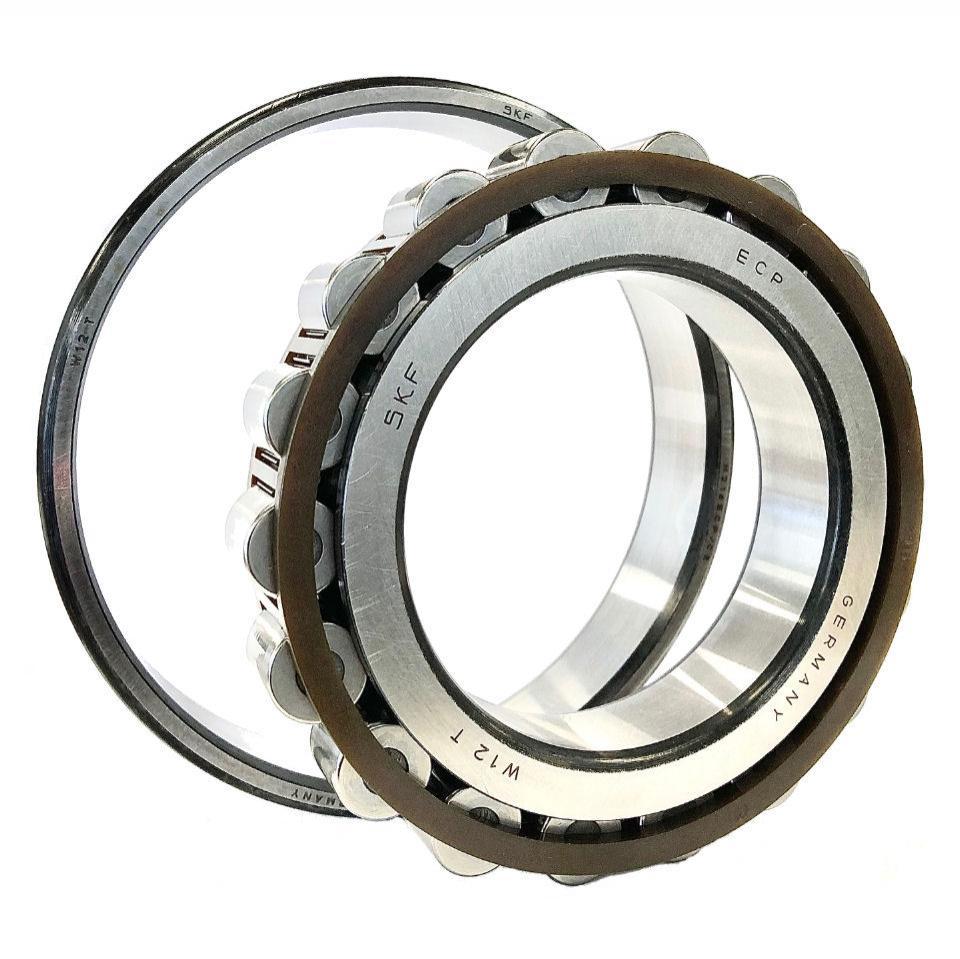

N313ECP SKF Single Row Cylindrical Roller Bearing 65x140x33mm

In stock
SKU: N313ECP-SKF
SKF N Design metric single row cylindrical roller bearing with polyamide cage 65mm inside x 140mm outside x 33mm wide

$230.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor SKF
  • SKU N313ECP-SKF
  • Inside diameter (d) 65mm
  • Outside diameter (D) 140mm
  • Width (B) 33mm
SKF N Design The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions. Principal Dimensions d: 65mm D: 140mm B:... Read full description ↓ Show less ↑
SKF N Design
The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 65mm
D: 140mm
B: 33mm

Basic Load Ratings
Dynamic:212 kn
Static: 196 kn

Fatigue Load Limit
25.5 kn

Speed Ratings
Reference speed: 5 300 r/min
Limiting speed: 6 000 r/min

Mass
2.20 kg

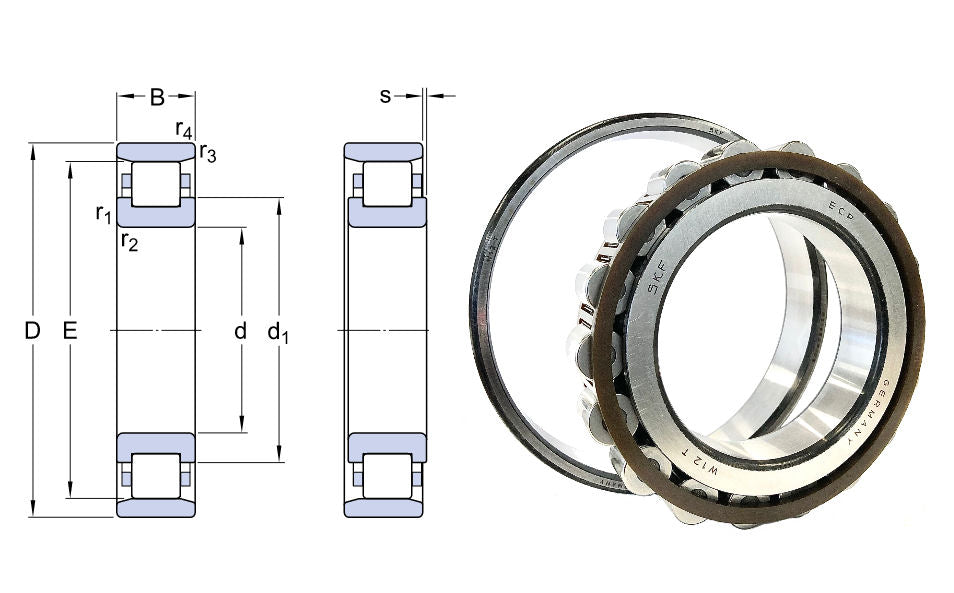

Dimensions mm
d1: 90.5
D1: -
r1,2 min: 2.1
r3,4 min: 2.1
S: 2.2
