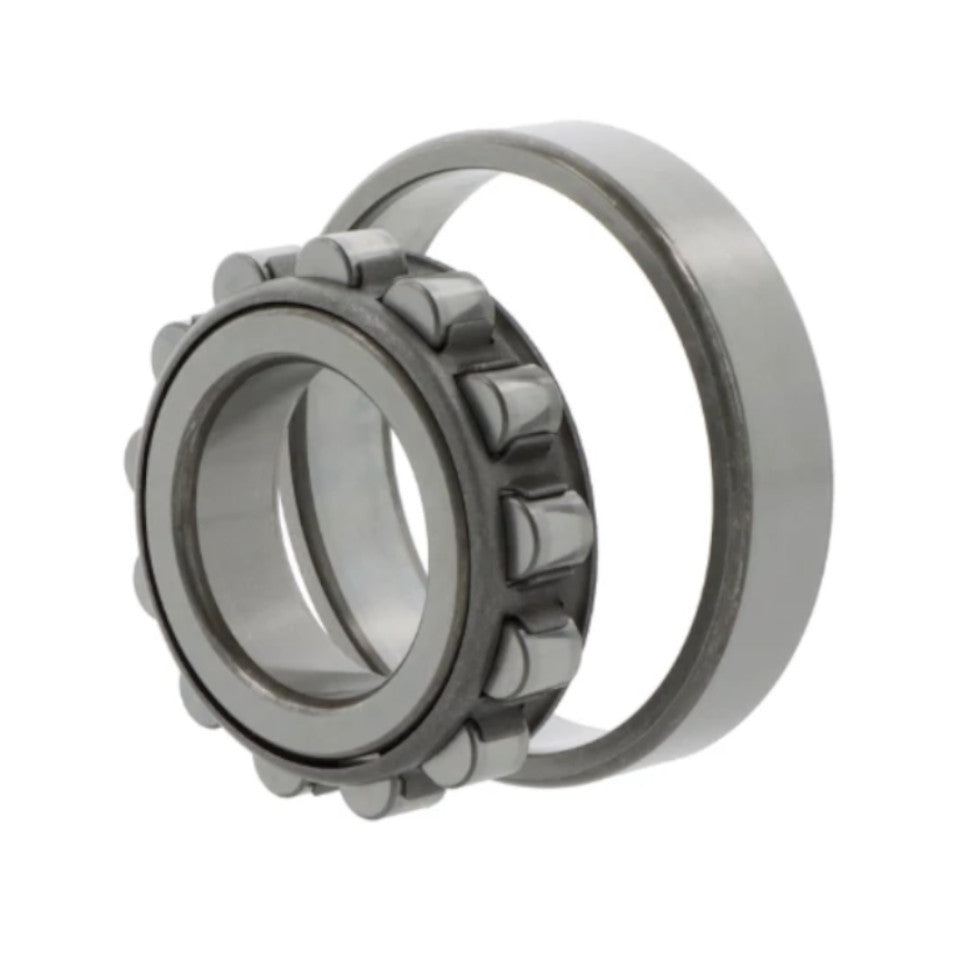

NSK N Design
The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

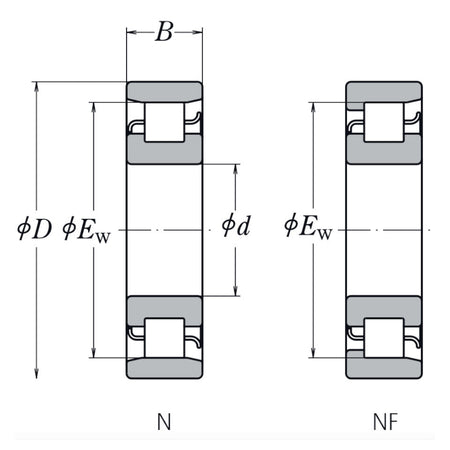

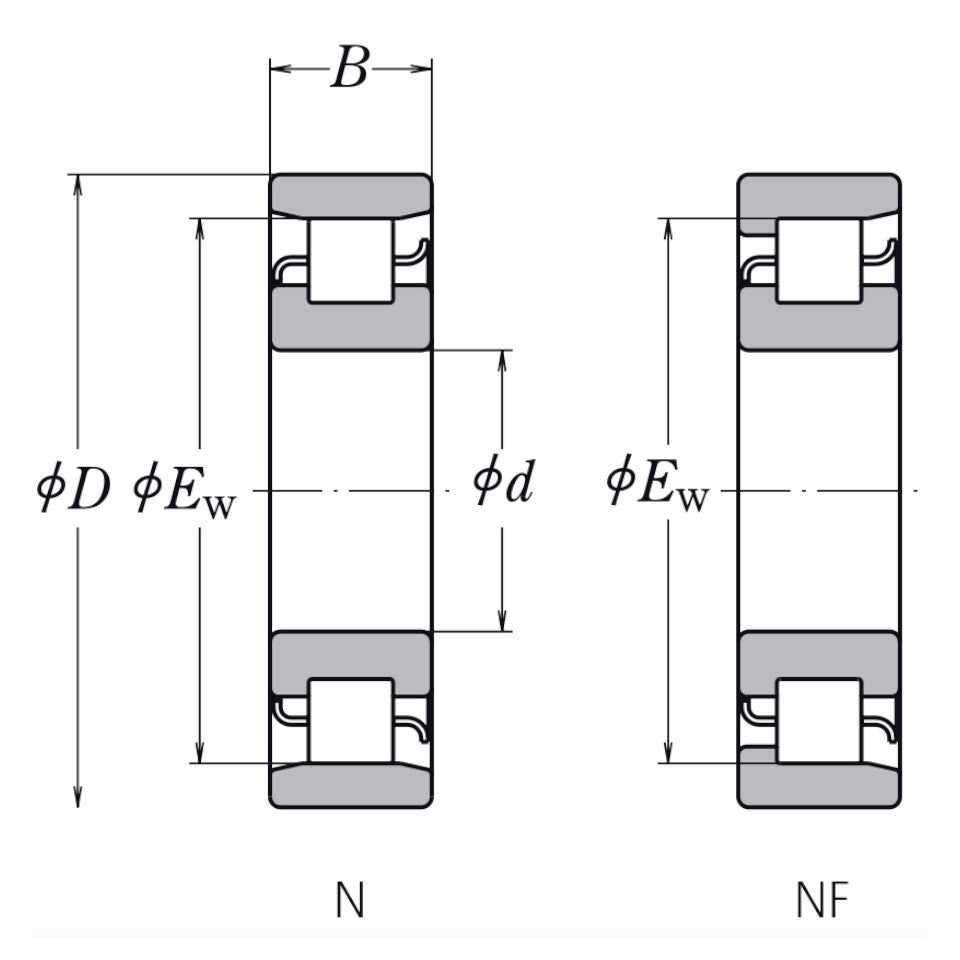

Principal Dimensions
d: 75mm
D: 160mm
B: 37mm
Fw: -
Ew: 139.5mm
Radial clearance class: C3
Mass: 3.2kg
Basic Load Ratings
Dynamic: 179 000 N
Static: 189 000 N
Limiting Speeds
Grease: 3 800 min-1
Oil: 4 800 min-1
