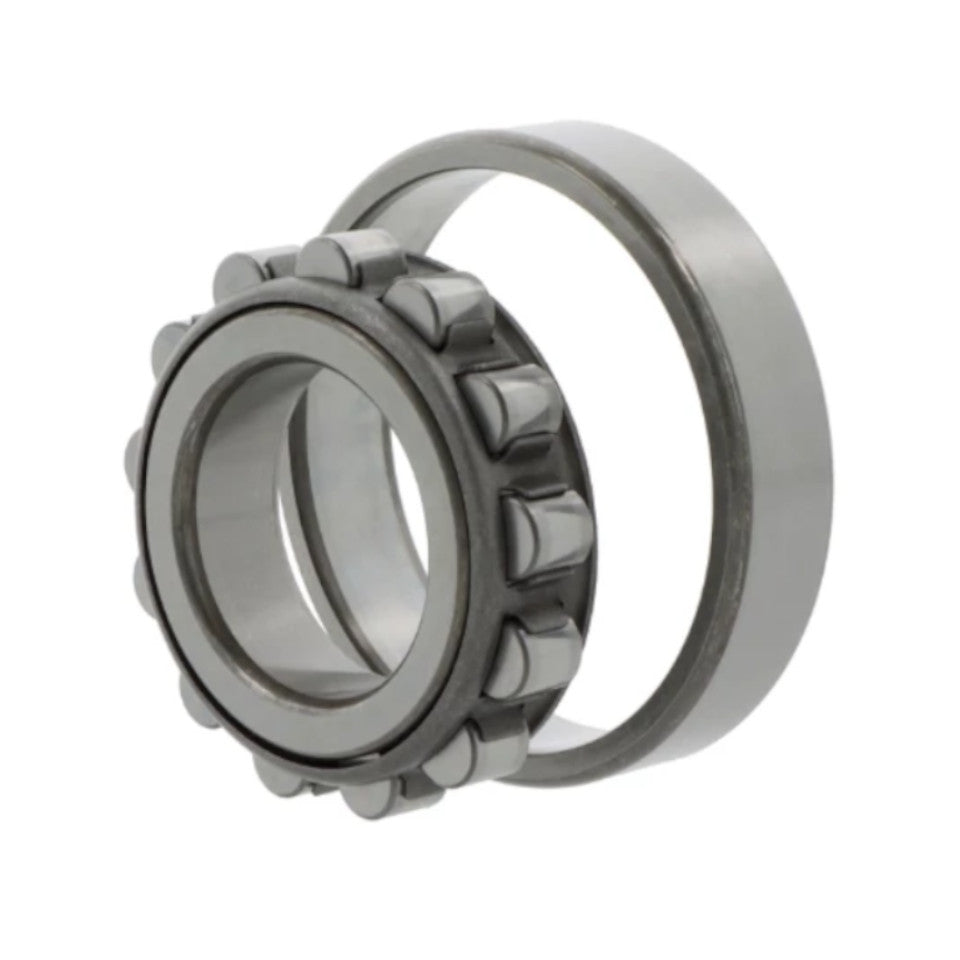

NSK N Design
The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

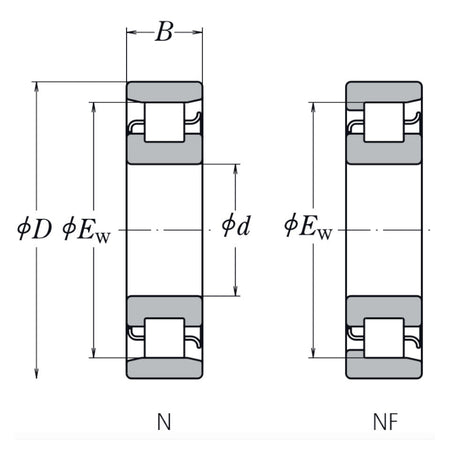

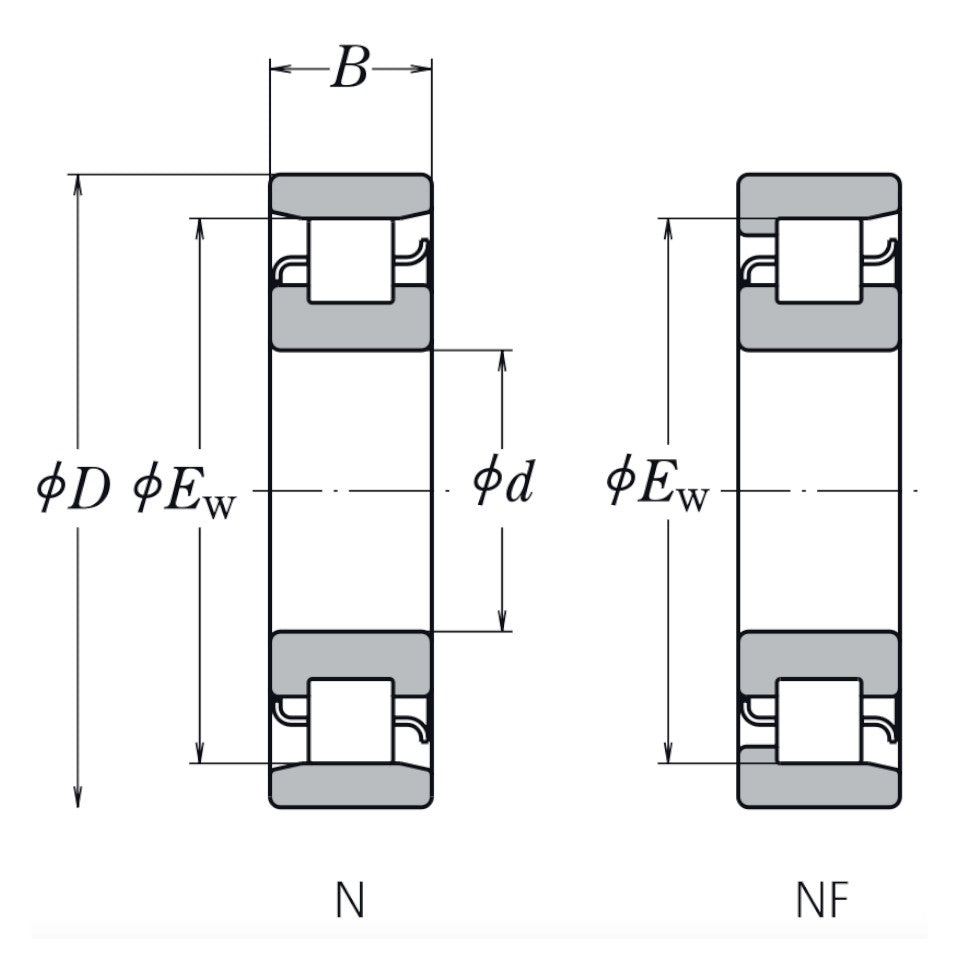

Principal Dimensions
d: 80mm
D: 170mm
B: 39mm
Fw: -
Ew: 156mm
Radial clearance class: Standard
Mass: 4.53kg
Basic Load Ratings
Dynamic: 212 000 N
Static: 228 000 N
Limiting Speeds
Grease: 3 400 min-1
Oil: 4 000 min-1
