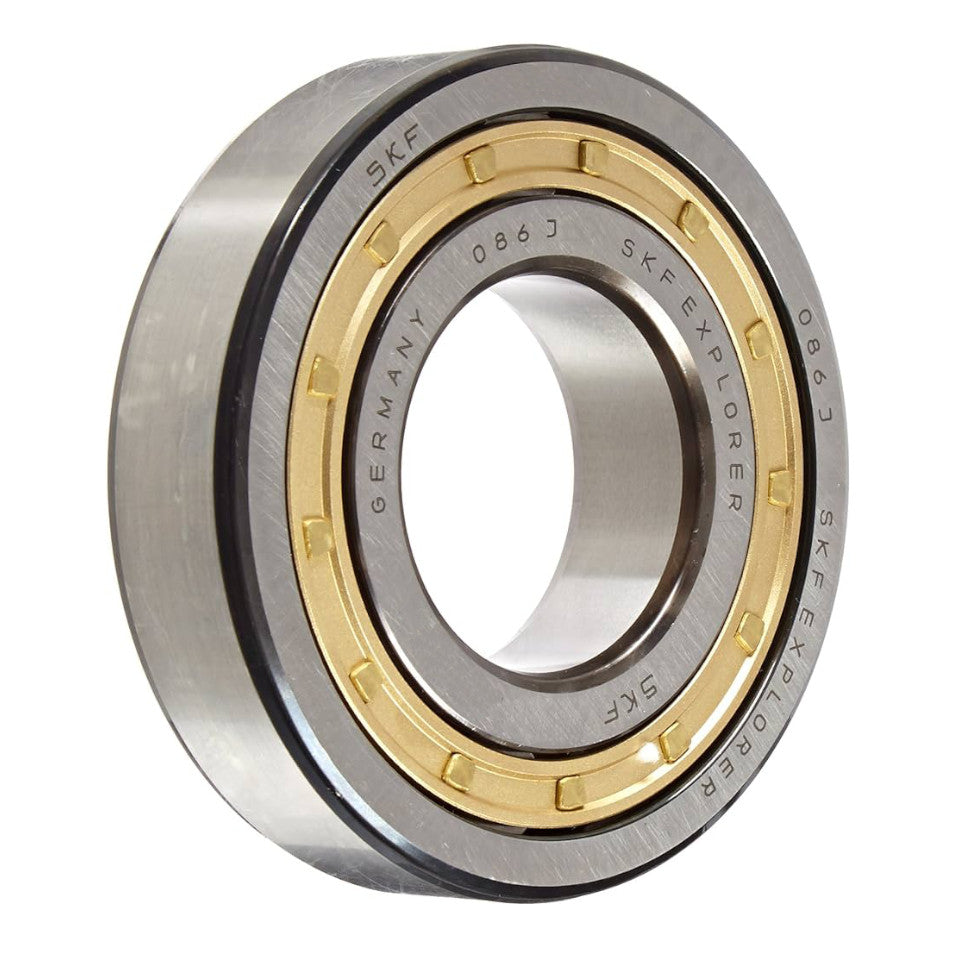

NJ2206ECML/C4 SKF Cylindrical Roller Bearing 30x62x20mm
SKF NJ Design metric single row cylindrical roller bearing with brass cage and C4 clearance
Regular price
£197.83 inc.VAT
£164.86 exc.VAT
All prices exclude VAT unless otherwise stated
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
SKF Single row cylindrical roller bearing, NJ design
SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design

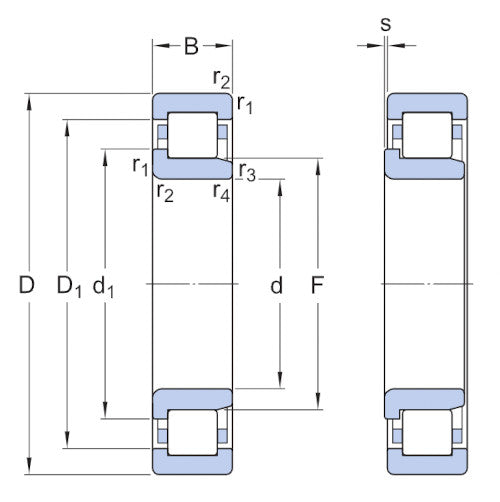

Dimensions
Bore diameter 30 mm
Outside diameter 62 mm
Width 20 mm
Performance
Basic dynamic load rating 55 kN
Basic static load rating 49 kN
SKF performance class SKF Explorer
Properties
Bearing part Complete bearing
Axial displacement capability In one direction
Number of rows 1
Locating feature, bearing outer ring None
Bore type Cylindrical
Cage Machined metal
Number of flanges, outer ring 2
Number of flanges, inner ring 1
Loose flange None
Radial internal clearance CN
Coating Without
Sealing Without
Lubricant None
SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
Dimensions
Bore diameter 30 mm
Outside diameter 62 mm
Width 20 mm
Performance
Basic dynamic load rating 55 kN
Basic static load rating 49 kN
SKF performance class SKF Explorer
Properties
Bearing part Complete bearing
Axial displacement capability In one direction
Number of rows 1
Locating feature, bearing outer ring None
Bore type Cylindrical
Cage Machined metal
Number of flanges, outer ring 2
Number of flanges, inner ring 1
Loose flange None
Radial internal clearance CN
Coating Without
Sealing Without
Lubricant None
