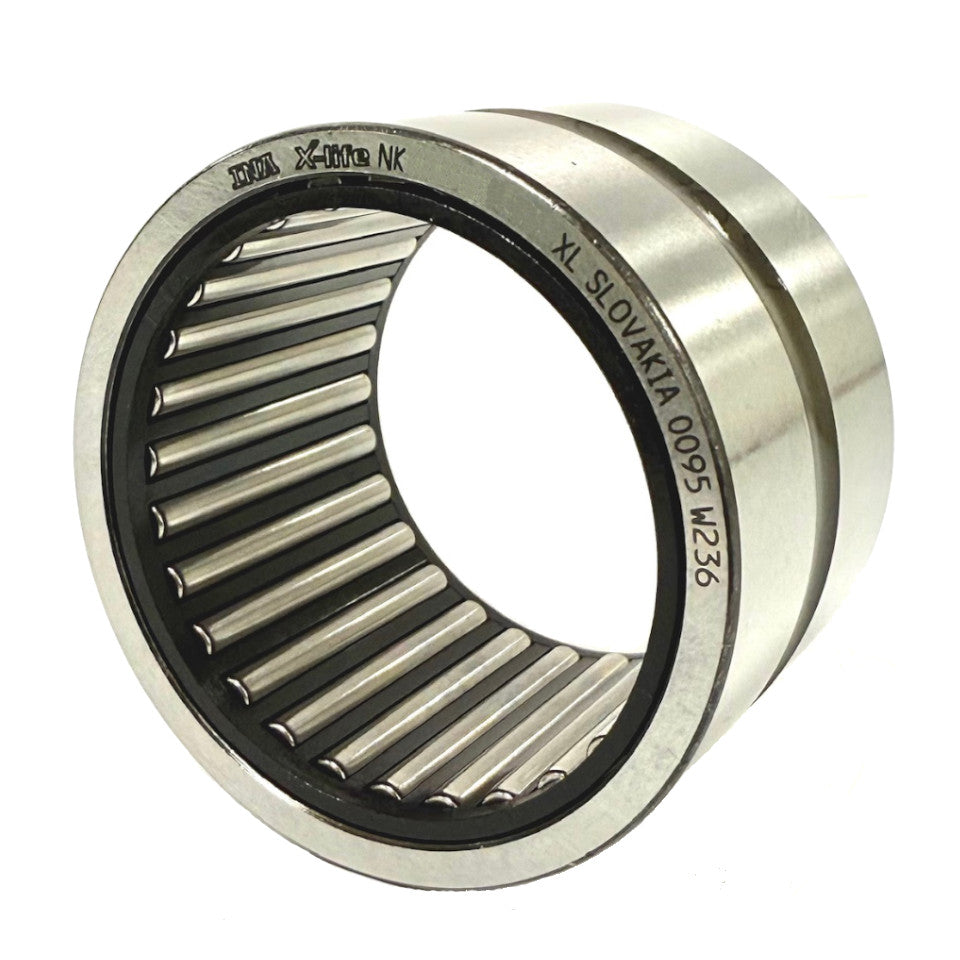

NK6/12-TV XL INA Needle Roller Bearing without Inner Ring 6x12x12mm

In stock
SKU: NK6/12-TV-XL-INA
INA Needle roller bearing without inner ring 6mm inside x 12mm outside x 12mm width
Regular price From £8.75
£7.29 exc.VAT

Product details

  • Vendor INA
  • SKU NK6/12-TV-XL-INA
  • Inside diameter (d) 6mm
  • Outside diameter (D) 12mm
  • Width (B) 12mm
Needle roller bearings with ribs:
The outer ring forms a self-retaining unit with the needle roller and cage assembly. These radially compact bearings with high load capacity are highly suitable for designs with limited radial space. The bearings are available with and without inner ring and in both sealed and open versions.

Bearings without an inner ring are the best solution for bearing arrangements where the shaft can be hardened and ground.

Needle roller bearings with an inner ring are used if the shaft is not configured as a rolling bearing raceway.

Dimensions:
Fw: 6mm
D: 12mm
C: 12mm
r min: 0.15mm

Basic dynamic load rating, radial: 3250 N
Basic static load rating, radial: 2650 N
Fatigue limit load, radial: 410 N
Limiting speed: 31000 1/min
Reference speed: 30000 1/min

Mass: 5.7g
