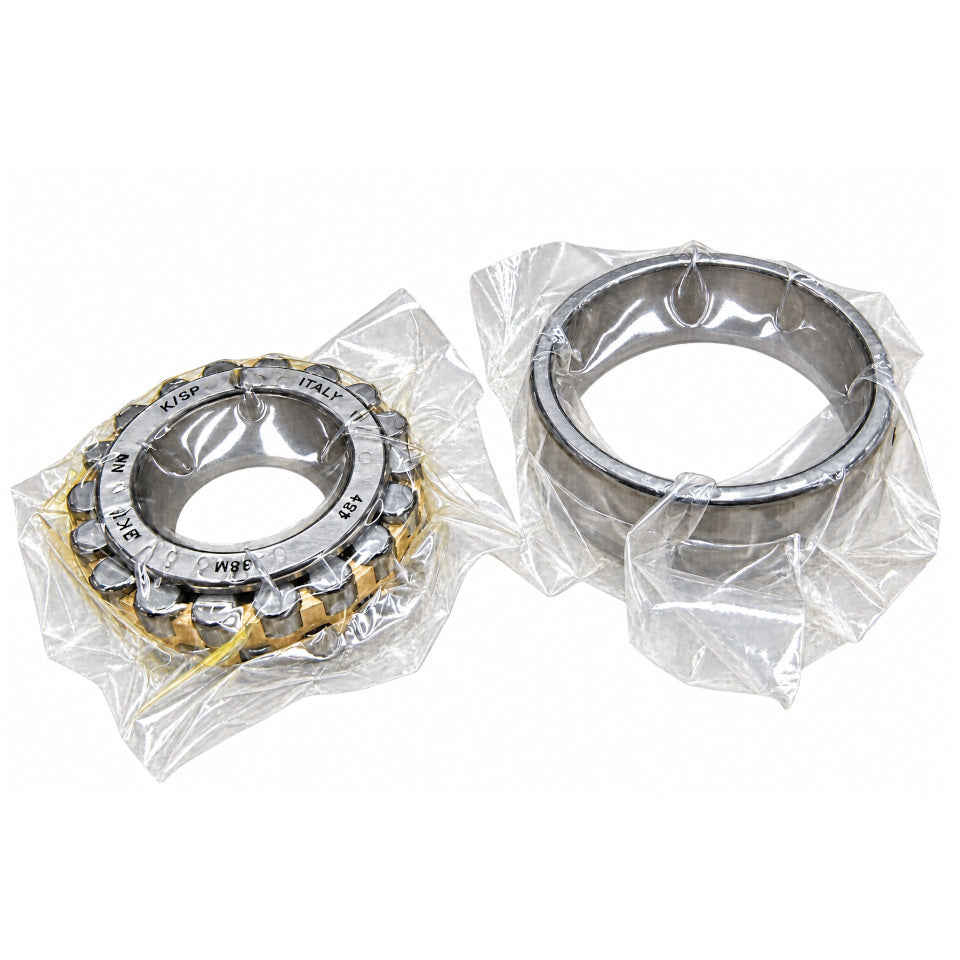

Available from Bearing King Ltd, the SKF NN 3005 K/SP is a double-row super precision cylindrical roller bearing featuring a tapered bore and a roller-guided machined brass cage.
With a 25 mm bore, 47 mm outside diameter and 16 mm width, this bearing provides high radial rigidity in a compact design for precision applications, including machine tool spindles. Its NN-type construction features three ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The K designation identifies a 1:12 tapered bore, while SP denotes SKF’s super precision tolerance class. The separable construction allows the bearing rings to be mounted independently.
Manufacturer: SKF
Part number: NN 3005 K/SP
Bearing type: Double-row cylindrical roller bearing
Bore diameter: 25 mm
Outside diameter: 47 mm
Width: 16 mm
Cage: Roller-guided machined brass
Bore type: 1:12 tapered bore (K)
Precision: SKF super precision class (SP)
Basic dynamic load rating: 26.0 kN
Basic static load rating: 30.0 kN
Approximate weight: 0.120 kg
Order the SKF NN 3005 K/SP from Bearing King Ltd for applications requiring this specific combination of dimensions, radial rigidity and precision.
