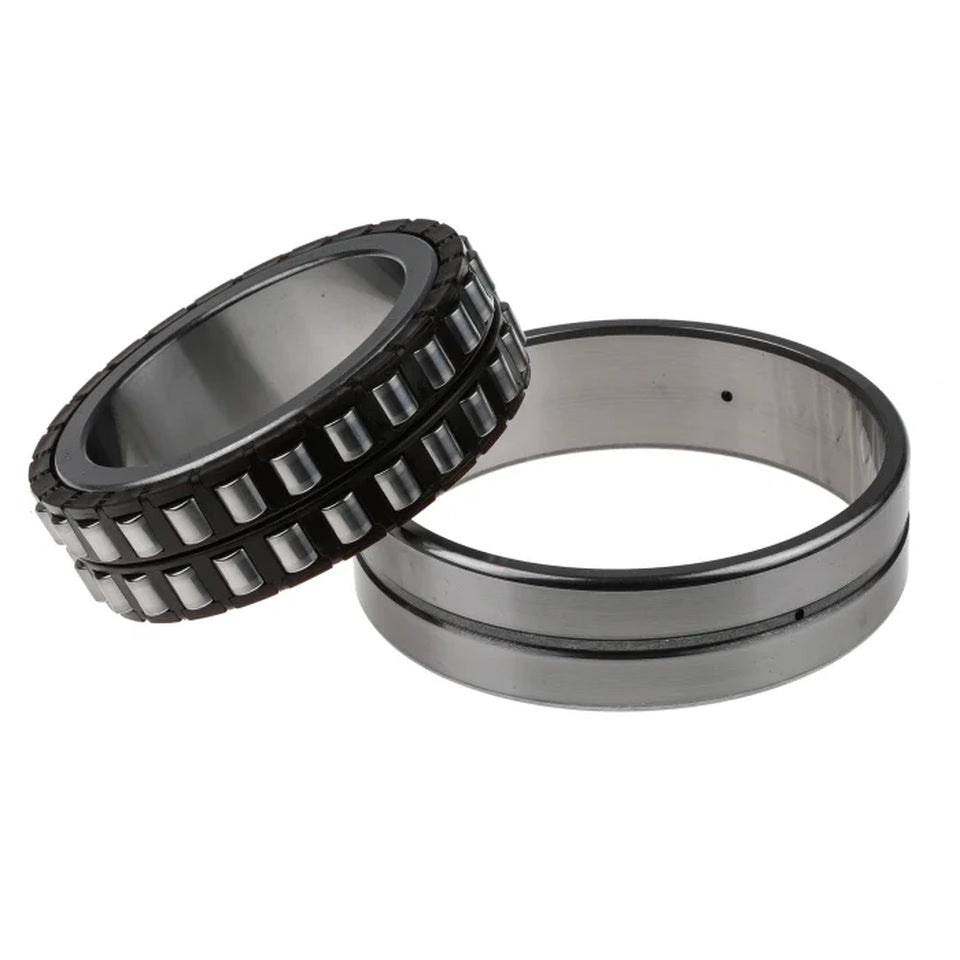

Available from Bearing King Ltd, the SKF NN 3006 KTN/SPW33 is a double-row super precision cylindrical roller bearing featuring a tapered bore, a roller-guided polyamide 66 cage and outer-ring lubrication features.

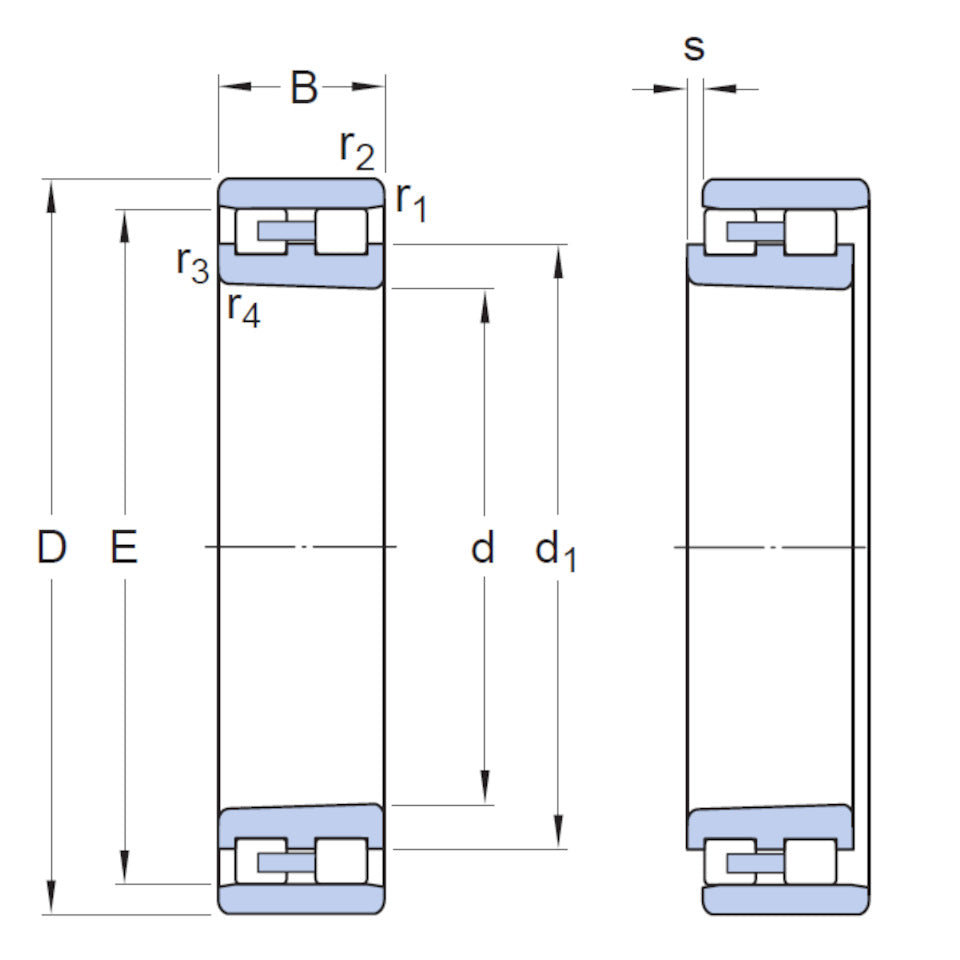

With a 30 mm bore, 55 mm outside diameter and 19 mm width, this bearing provides high radial rigidity in a compact design for precision applications, including machine tool spindles. Its NN-type construction features three ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The K designation identifies a 1:12 tapered bore, while TN specifies the roller-guided polyamide 66 cage. SP denotes SKF’s super precision tolerance class. W33 identifies an annular groove and three lubrication holes in the outer ring to facilitate lubricant supply.
Manufacturer: SKF
Part number: NN 3006 KTN/SPW33
Bearing type: Double-row cylindrical roller bearing
Bore diameter: 30 mm
Outside diameter: 55 mm
Width: 19 mm
Cage: Roller-guided polyamide 66 (TN)
Bore type: 1:12 tapered bore (K)
Precision: SKF super precision class (SP)
Lubrication feature: Annular groove and three lubrication holes in the outer ring (W33)
Basic dynamic load rating: 30.8 kN
Basic static load rating: 37.5 kN
Order the SKF NN 3006 KTN/SPW33 from Bearing King Ltd for applications requiring this specific combination of dimensions, radial rigidity, precision and lubrication features.
