Available from Bearing King Ltd, the SKF NN 3010 TN/SP is a double-row super precision cylindrical roller bearing featuring a cylindrical bore and a roller-guided polyamide 66 cage.

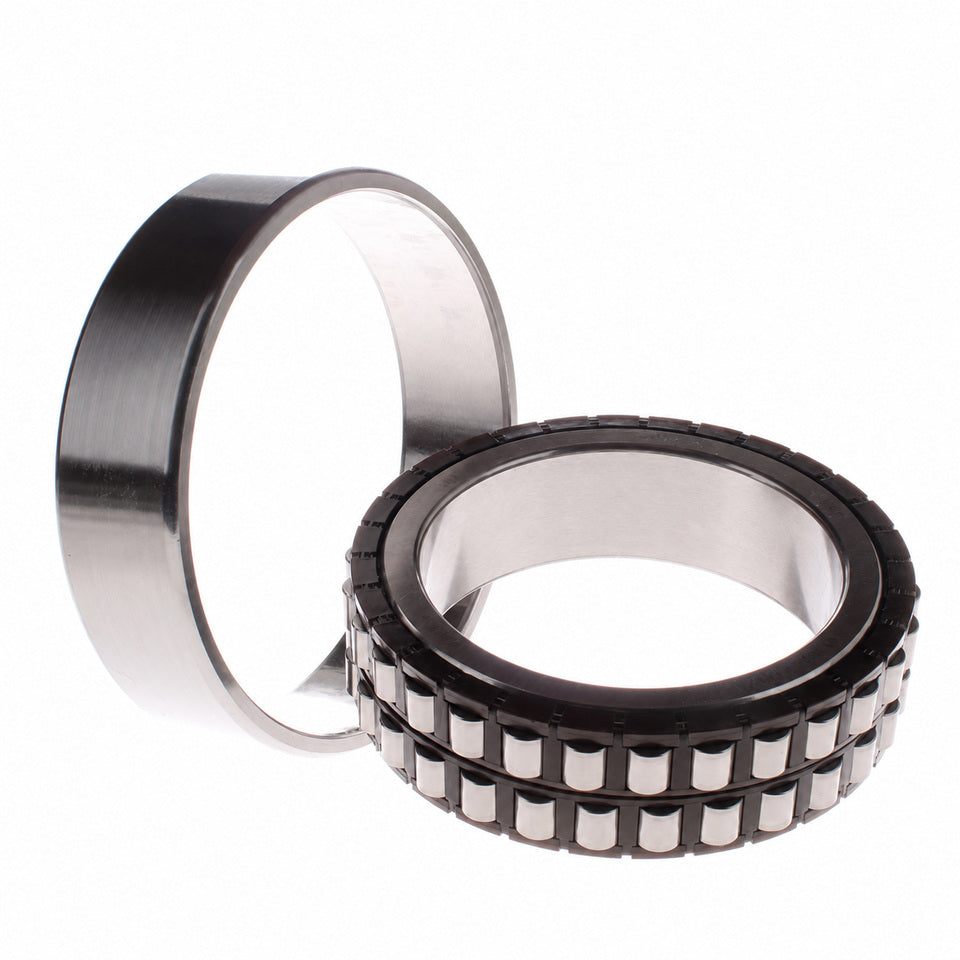

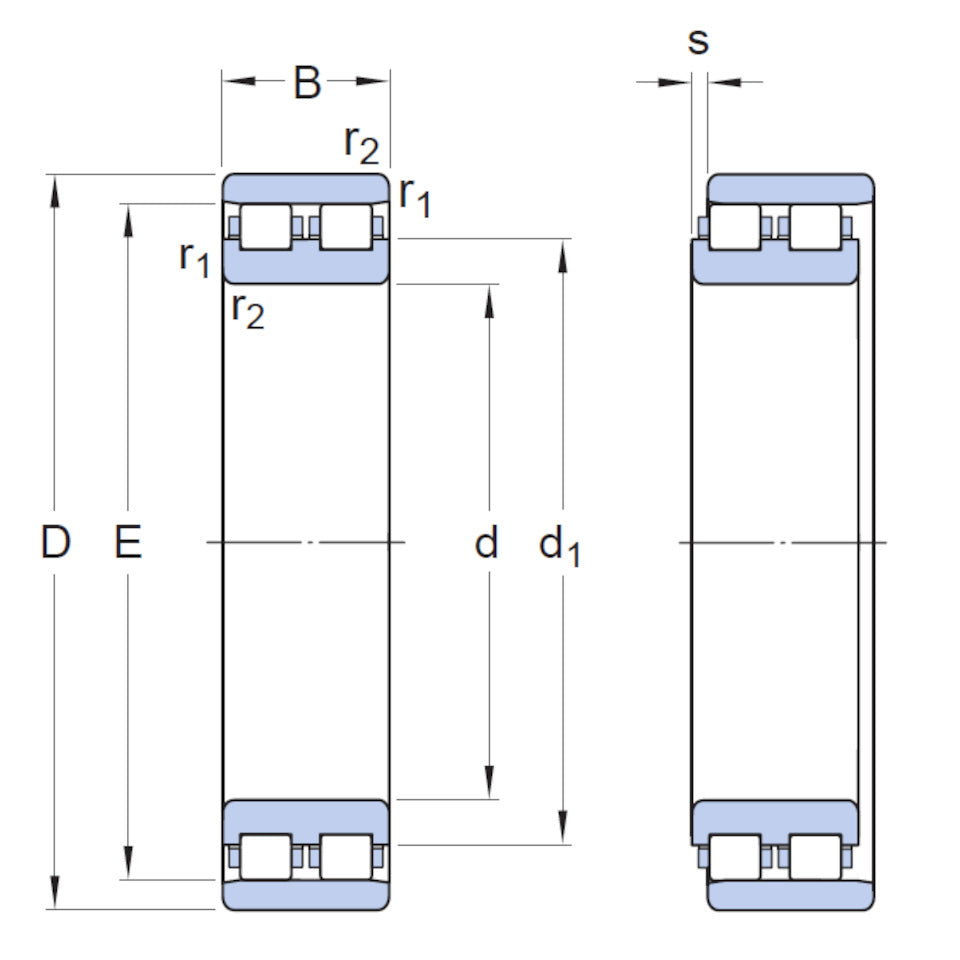

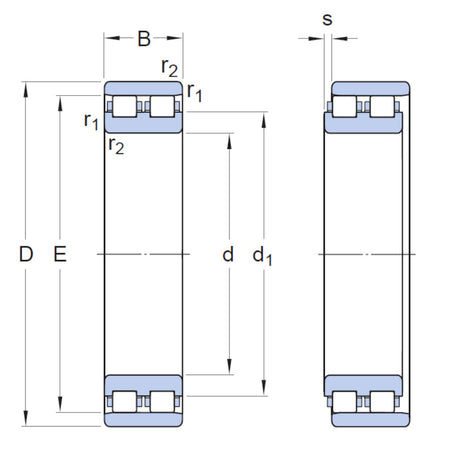

With a 50 mm bore, 80 mm outside diameter and 23 mm width, this bearing provides high radial rigidity in a compact design for precision applications, including machine tool spindles. Its NN-type construction features three ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The TN designation identifies the roller-guided polyamide 66 cage, while SP denotes SKF’s super precision tolerance class. The separable construction allows the bearing rings to be mounted independently.
Manufacturer: SKF
Part number: NN 3010 TN/SP
Bearing type: Double-row cylindrical roller bearing
Bore diameter: 50 mm
Outside diameter: 80 mm
Width: 23 mm
Cage: Roller-guided polyamide 66 (TN)
Bore type: Cylindrical
Precision: SKF super precision class (SP)
Basic dynamic load rating: 52.8 kN
Basic static load rating: 73.5 kN
Approximate weight: 0.420 kg
Order the SKF NN 3010 TN/SP from Bearing King Ltd for applications requiring this specific combination of dimensions, radial rigidity and precision.
