Available from Bearing King Ltd, the SKF NN 3010 TN/SPW33 is a double-row super precision cylindrical roller bearing featuring a cylindrical bore, a roller-guided polyamide 66 cage and outer-ring lubrication features.

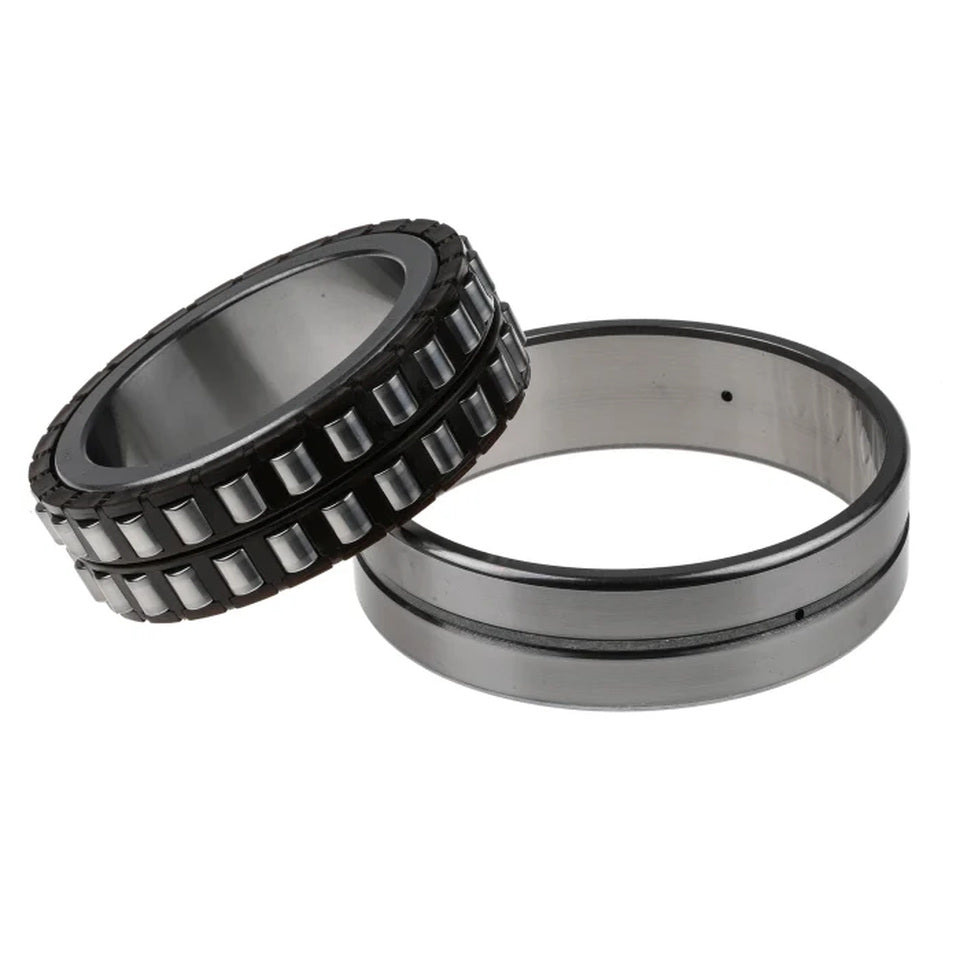

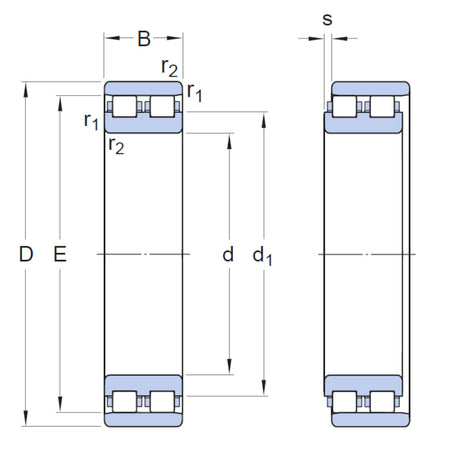

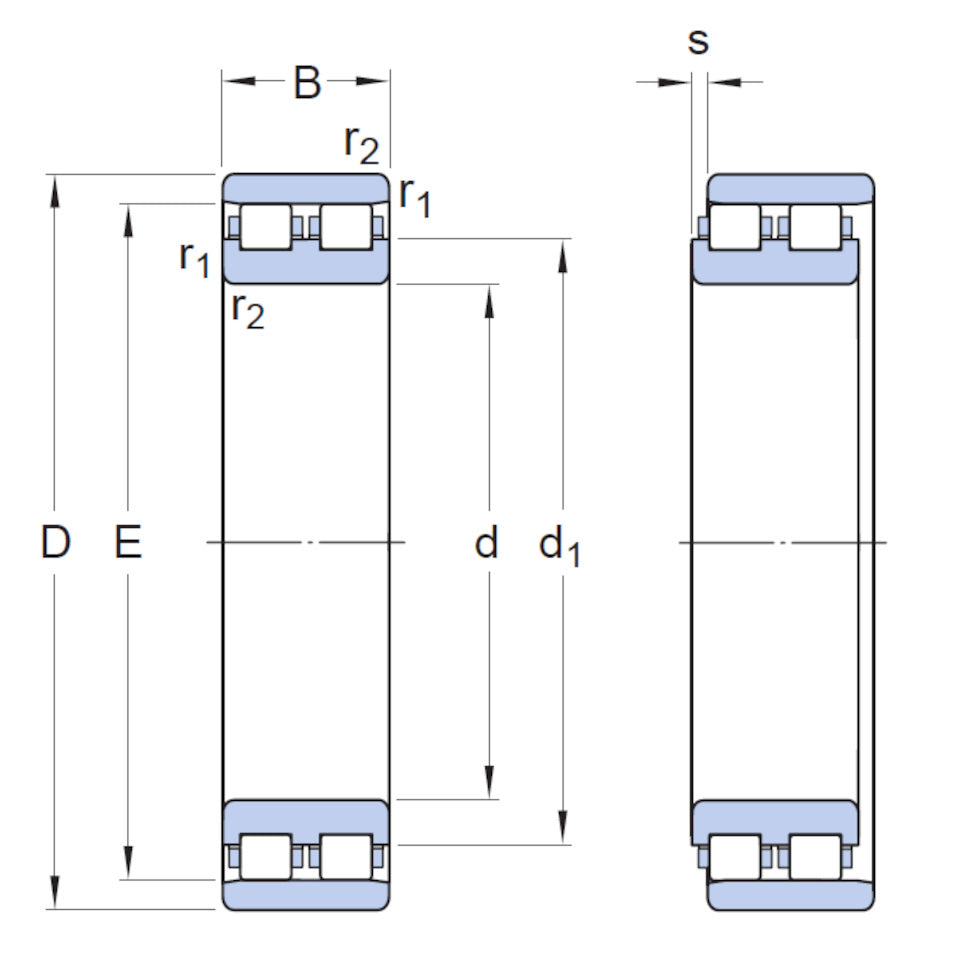

With a 50 mm bore, 80 mm outside diameter and 23 mm width, this bearing provides high radial rigidity in a compact design for precision applications, including machine tool spindles. Its NN-type construction features three ribs on the inner ring and a ribless outer ring, allowing axial displacement between the rings.
The TN designation identifies the roller-guided polyamide 66 cage, while SP denotes SKF’s super precision tolerance class. W33 identifies an annular groove and three lubrication holes in the outer ring to facilitate lubricant supply. The separable construction allows the bearing rings to be mounted independently.
Manufacturer: SKF
Part number: NN 3010 TN/SPW33
Bearing type: Double-row cylindrical roller bearing
Bore diameter: 50 mm
Outside diameter: 80 mm
Width: 23 mm
Cage: Roller-guided polyamide 66 (TN)
Bore type: Cylindrical
Precision: SKF super precision class (SP)
Lubrication feature: Annular groove and three lubrication holes in the outer ring (W33)
Basic dynamic load rating: 52.8 kN
Basic static load rating: 73.5 kN
Order the SKF NN 3010 TN/SPW33 from Bearing King Ltd for applications requiring this specific combination of dimensions, radial rigidity, precision and lubrication features.
