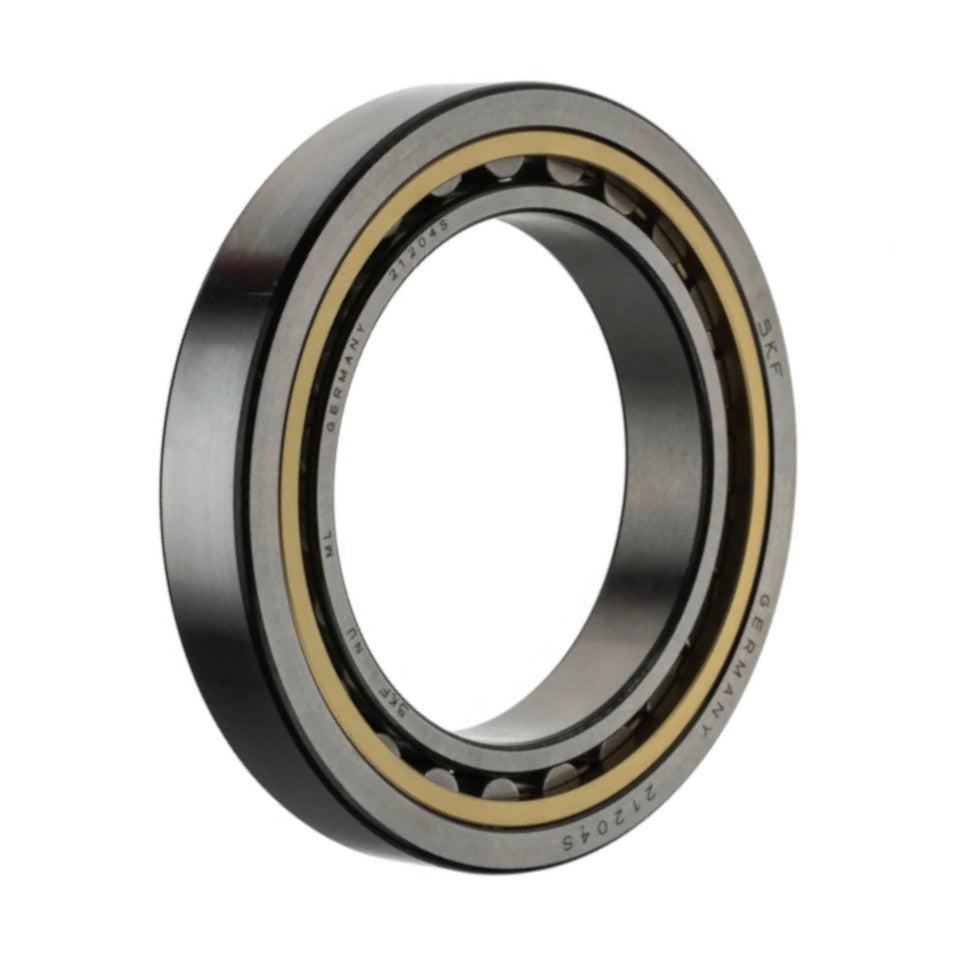

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
Properties
Bearing part Complete bearing
Axial displacement capability In both directions
Number of rows 1
Locating feature, bearing outer ring None
Bore type Cylindrical
Cage Machined metal
Number of flanges, outer ring 2
Number of flanges, inner ring 0
Loose flange None
Radial internal clearance CN
Tolerance class Normal
Coating Without
Sealing Without
Lubricant None
Relubrication feature Without
Dimensions
d 60 mm Bore diameter
D 95 mm Outside diameter
B 18 mm Width
D1 ?81.8 mm Shoulder diameter of outer ring
F 69.5 mm Raceway diameter of inner ring
r1,2 min.1.1 mm Chamfer dimension
r3,4 min.1 mm Chamfer dimension
s max.2.9 mm Permissible axial displacement
Calculation data
SKF performance class SKF Explorer
Basic dynamic load rating C 43 kN
Basic static load rating C0 44 kN
Fatigue load limit Pu 5.3 kN
Reference speed 8 000 r/min
Limiting speed 13 000 r/min
Minimum load factor kr 0.15
Limiting value e 0.2
Calculation factor Y 0.6
Product net weight 0.486 kg
