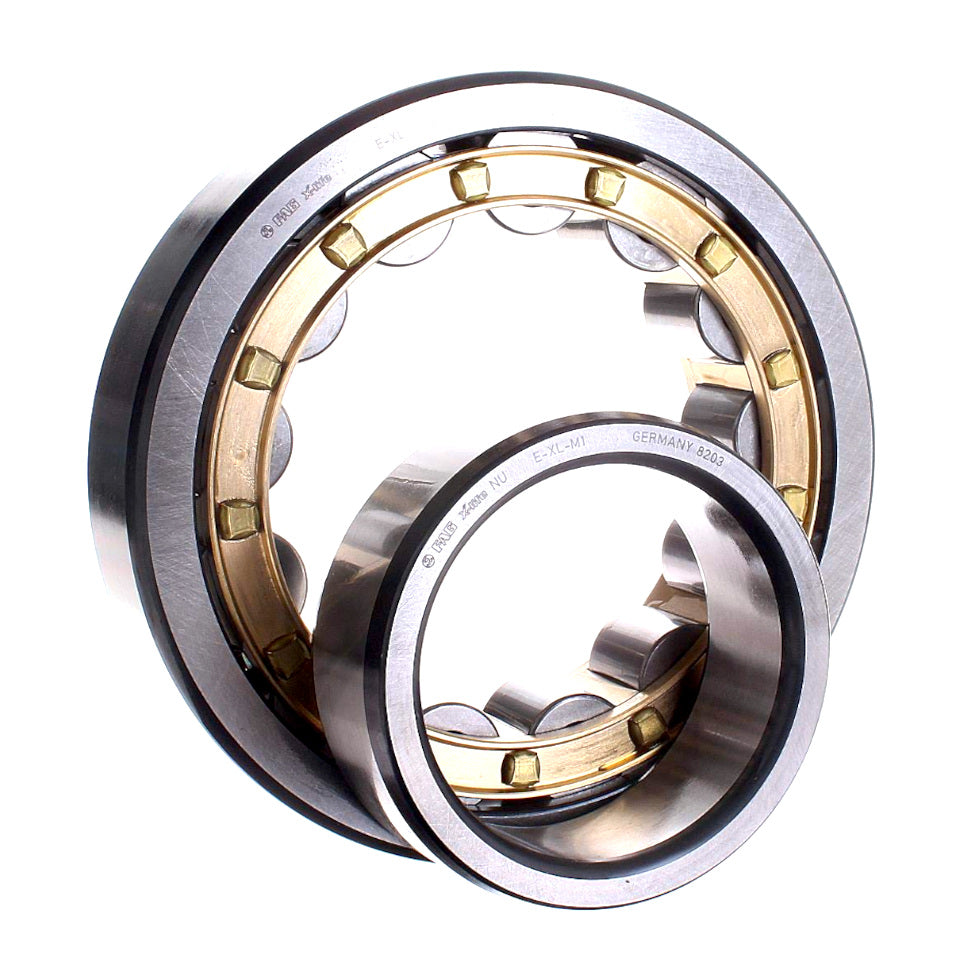

The FAG NU202-E-XL-M1A-C3 is a premium single-row cylindrical roller bearing manufactured by Schaeffler. Its high-capacity internal design and robust two-piece solid brass cage provide excellent strength, rigidity and reliable performance in demanding industrial applications.
The NU design incorporates two integral ribs on the outer ring and a ribless, separable inner ring. This arrangement allows axial displacement between the shaft and housing in both directions, making the bearing particularly suitable for use as a non-locating or floating bearing. It can accommodate thermal expansion of the shaft while supporting high radial loads.
The separable construction also makes installation and removal easier, particularly where the inner and outer rings require separate mounting. This open bearing has C3 radial internal clearance, which is greater than normal, and requires suitable lubrication during operation.
Product features
- Premium FAG bearing manufactured by Schaeffler
- Single-row cylindrical roller bearing
- NU design for non-locating bearing arrangements
- High radial load-carrying capacity
- Accommodates axial displacement in both directions
- Increased-capacity E design
- Two-piece solid brass cage, guided on the outer-ring ribs
- C3 radial internal clearance greater than normal
- Separable inner ring for easier mounting and removal

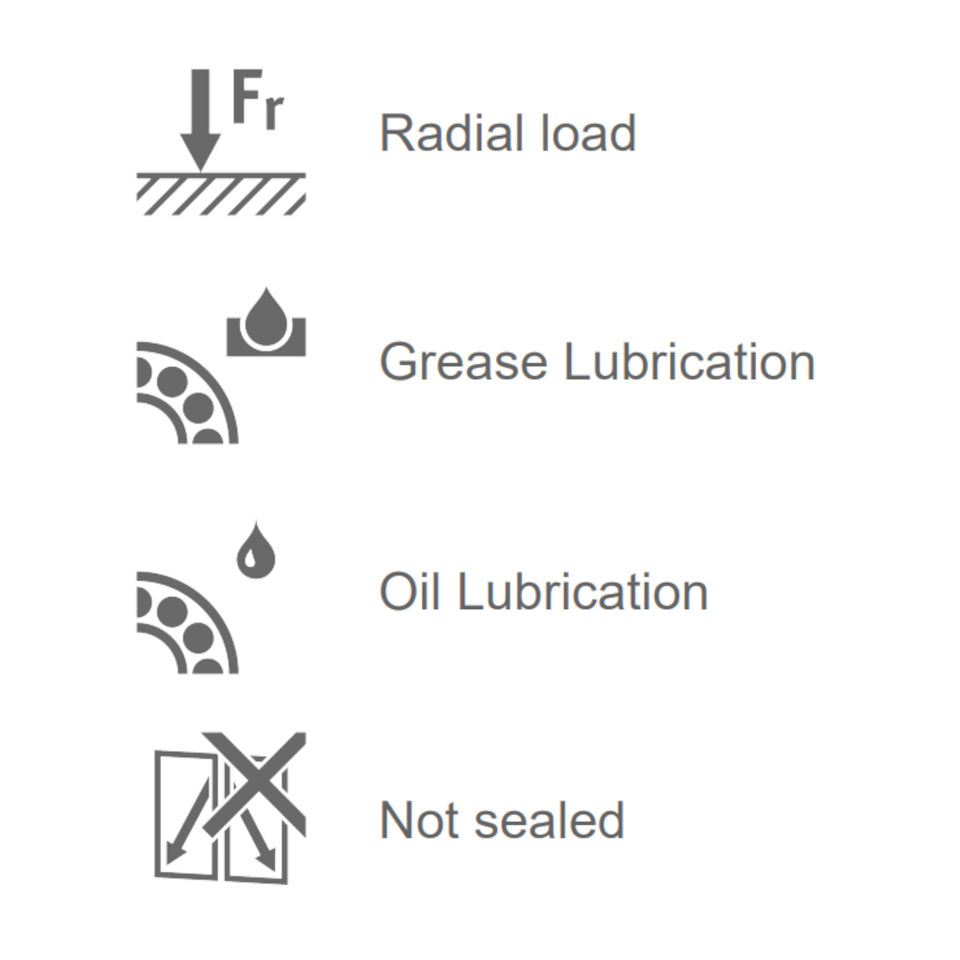

- Open bearing requiring suitable lubrication
- Suitable for electric motors, pumps, compressors, gearboxes and industrial machinery
Technical specification
- Manufacturer: FAG / Schaeffler
- Manufacturer reference: NU202-E-XL-M1A-C3
- Bearing type: Single-row cylindrical roller bearing
- Design: NU, non-locating bearing

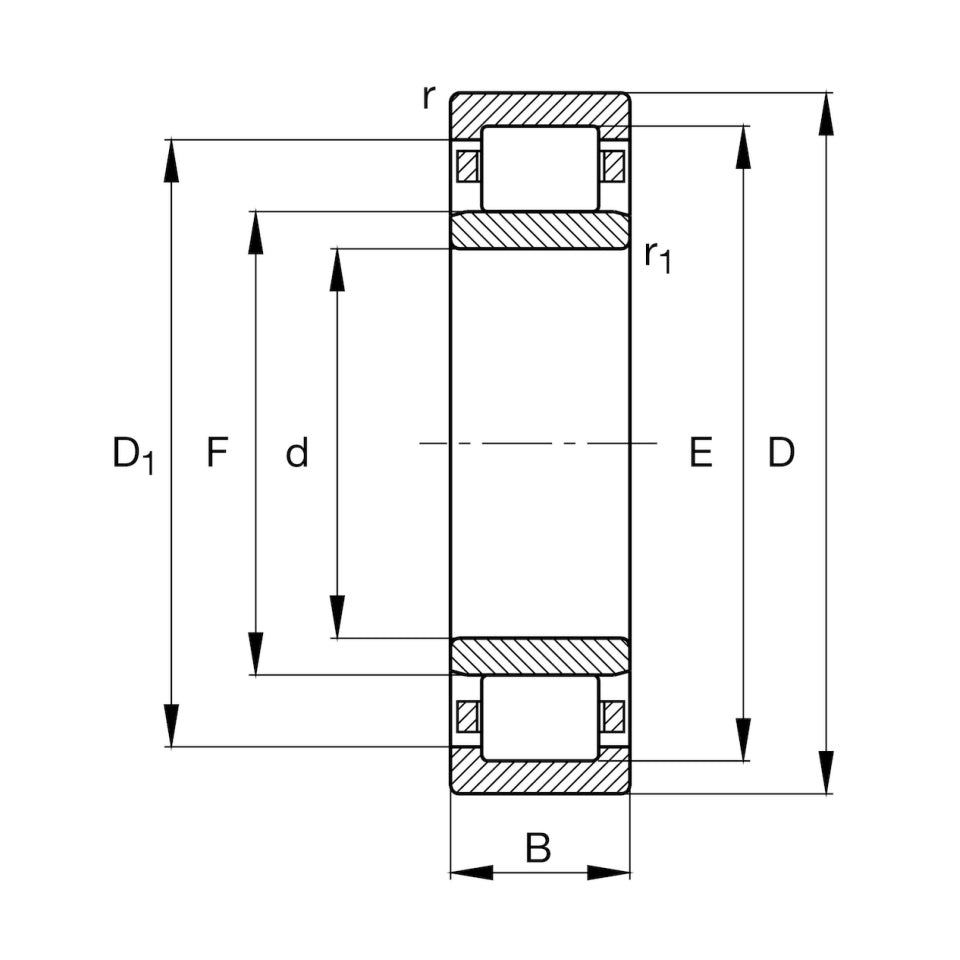

- Bore diameter: 15mm
- Outside diameter: 35mm
- Width: 11mm
- Dynamic load rating: 15.1kN
- Static load rating: 10.4kN
- Fatigue load limit: 1.29kN
- Cage: Two-piece solid brass cage
- Seals or shields: Open
- Radial internal clearance: C3, greater than normal
- Bore type: Cylindrical
Suffix information
- NU: Two ribs on the outer ring and no ribs on the inner ring
- E: Increased load-carrying capacity
- M1A: Two-piece machined solid brass cage, guided on the outer-ring ribs
- C3: Radial internal clearance greater than normal
Buy from Bearing King Ltd
Order your FAG NU202-E-XL-M1A-C3 from Bearing King Ltd for straightforward purchasing and knowledgeable customer support. If you are unsure whether C3 clearance is suitable for your machinery, contact our team before ordering and we will be happy to help you check the dimensions, clearance and specification for your application.
