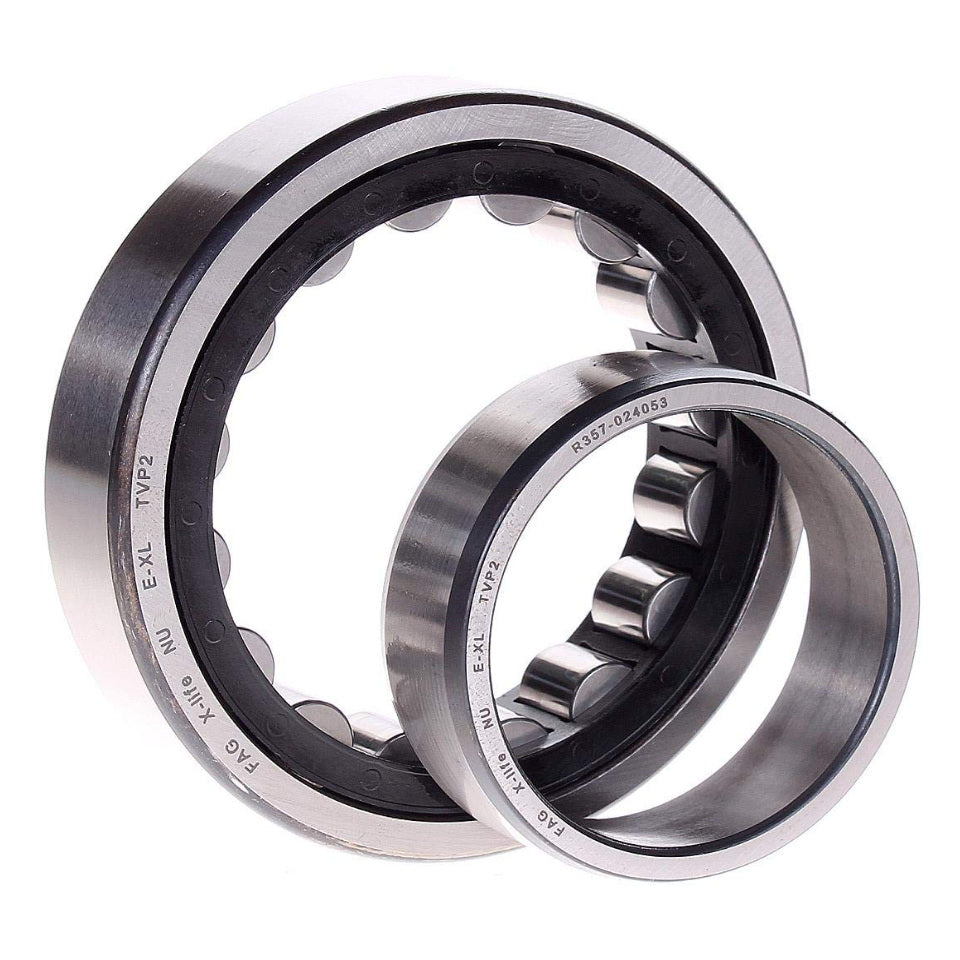

The FAG NU202-E-XL-TVP2-C3 is a premium single-row cylindrical roller bearing manufactured by Schaeffler. Its optimised X-life design provides high radial load-carrying capacity, improved operating performance and dependable service in demanding industrial applications.
This NU-design bearing has two integral ribs on the outer ring and a smooth, ribless inner ring. It can accommodate axial displacement between the shaft and housing in both directions, making it particularly suitable for non-locating or floating bearing arrangements where thermal expansion of the shaft must be managed.
A glass-fibre-reinforced polyamide cage separates and guides the rollers, helping to reduce friction and support operation at high speeds. The separable inner ring also simplifies installation and removal where the bearing rings need to be mounted independently.
This is an open bearing with C3 radial internal clearance, which is greater than normal, and requires suitable lubrication during operation.
Product features
- Premium FAG bearing manufactured by Schaeffler
- Single-row cylindrical roller bearing
- NU design for non-locating bearing arrangements
- High radial load-carrying capacity
- Accommodates axial displacement in both directions
- X-life premium-performance design
- Increased-capacity E internal design
- Glass-fibre-reinforced polyamide cage
- C3 radial internal clearance greater than normal
- Separable inner ring for easier mounting and removal
- Open bearing requiring suitable lubrication
- P6 dimensional and running accuracy
- Suitable for electric motors, pumps, compressors, gearboxes and industrial machinery

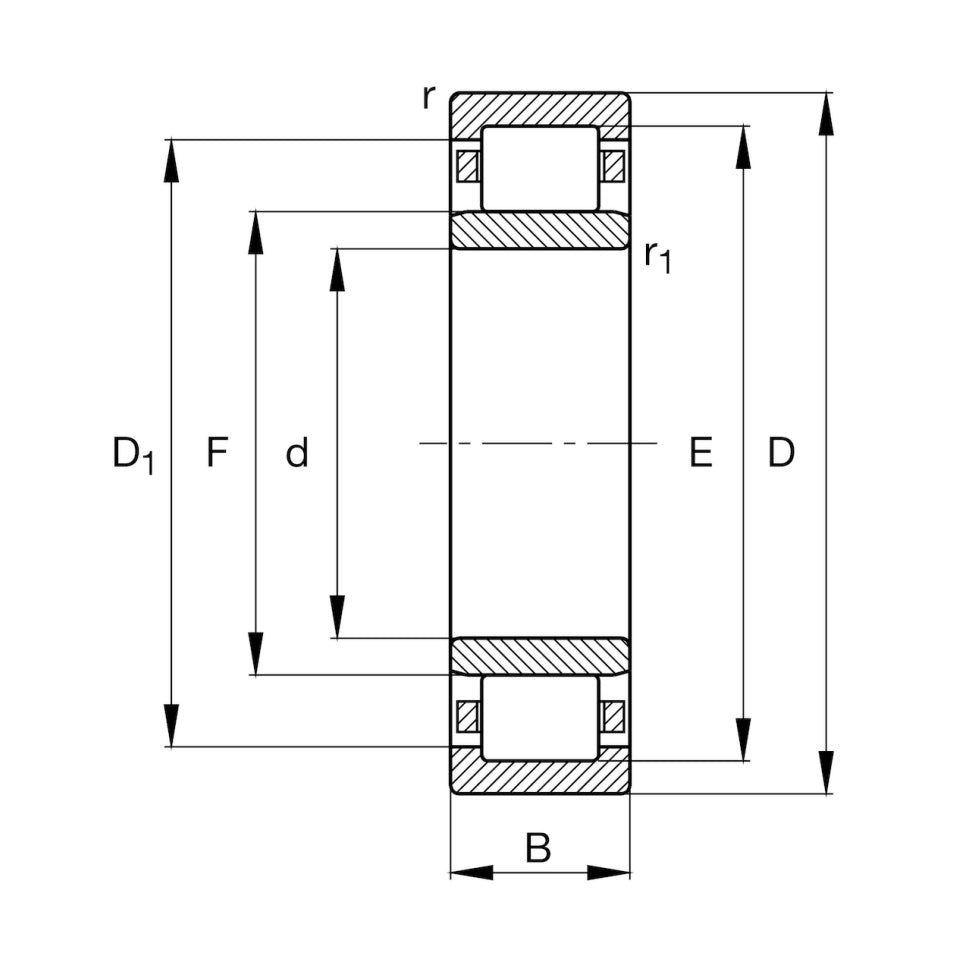

Technical specification
- Manufacturer: FAG / Schaeffler
- Manufacturer reference: NU202-E-XL-TVP2-C3
- Bearing type: Single-row cylindrical roller bearing
- Design: NU, non-locating bearing
- Bore diameter: 15mm
- Outside diameter: 35mm
- Width: 11mm
- Dynamic load rating: 15.1kN
- Static load rating: 10.4kN
- Fatigue load limit: 1.29kN
- Reference speed: 17,600rpm
- Limiting speed: 22,000rpm
- Cage: Glass-fibre-reinforced polyamide
- Seals or shields: Open
- Radial internal clearance: C3, greater than normal
- Bore type: Cylindrical
- Accuracy class: P6
Suffix information
- NU: Two ribs on the outer ring and no ribs on the inner ring
- E: Increased load-carrying capacity
- XL: Schaeffler X-life premium-performance design
- TVP2: Glass-fibre-reinforced polyamide window cage
- C3: Radial internal clearance greater than normal
Buy from Bearing King Ltd
Order your FAG NU202-E-XL-TVP2-C3 from Bearing King Ltd for straightforward purchasing and knowledgeable customer support. If you are unsure whether this bearing is correct for your machinery, contact our team before ordering and we will be happy to help you check the dimensions, clearance and specification for your application.
