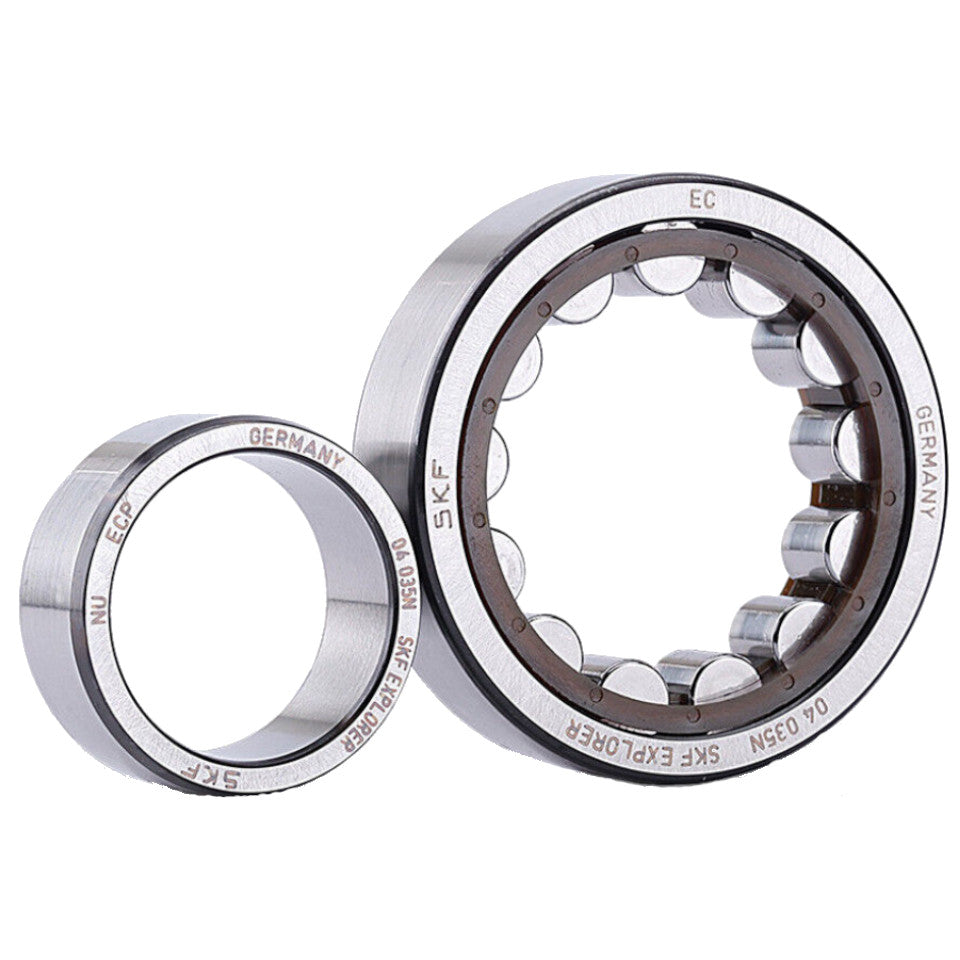

NU219 ECP SKF Single Row Cylindrical Roller Bearing 95x170x32mm

In stock
SKU: NU219ECP-SKF
SKF NU Design metric single row cylindrical roller bearing with polyamide cage 95mm inside x 170mm outside x 32mm wide
Regular price £208.34 inc.VAT
£173.62 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50

Product details

  • Vendor SKF
  • SKU NU219ECP-SKF
  • Inside diameter (d) 95mm
  • Outside diameter (D) 170mm
  • Width (B) 32mm
SKF NU Design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 95mm
D: 170mm
B: 32mm

Basic Load Ratings
Dynamic: 255kN
Static: 265kN

Fatigue Load Limit: 32,5kN

Speed Ratings
Reference speed: 4 300 r/min
Limiting speed: 4 800 r/min

Mass
2,85kg

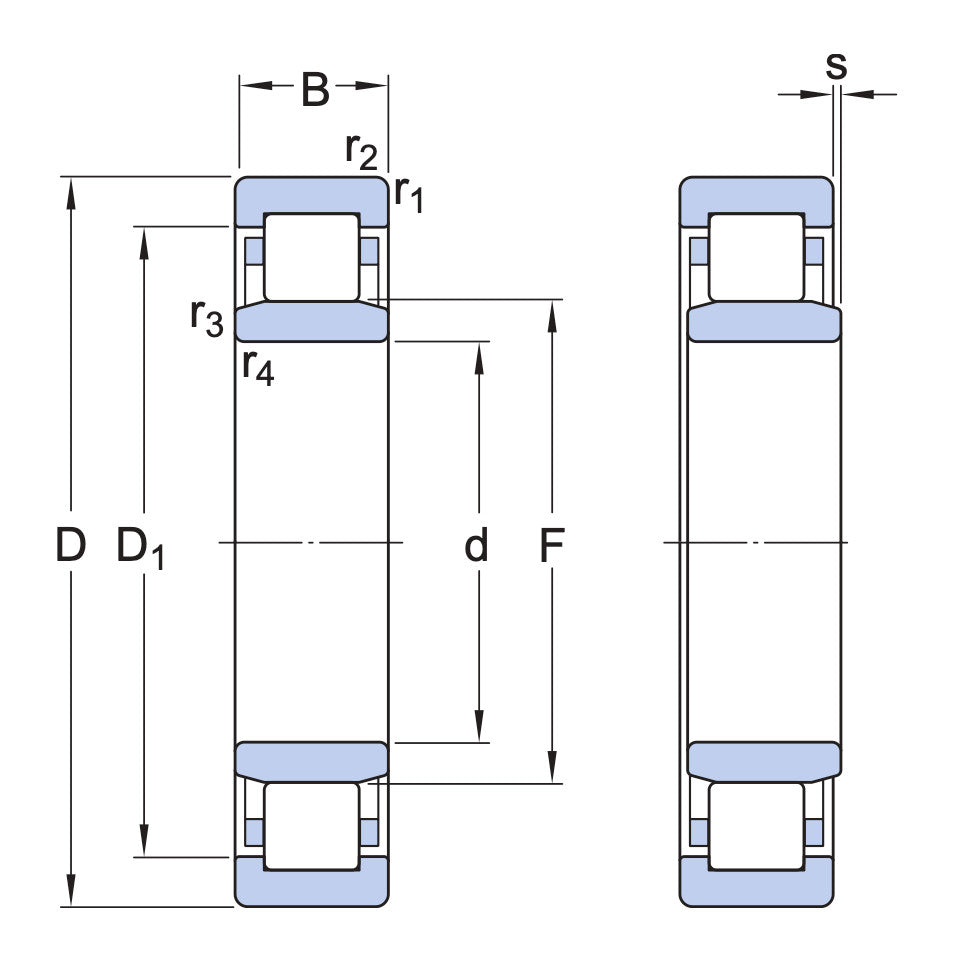

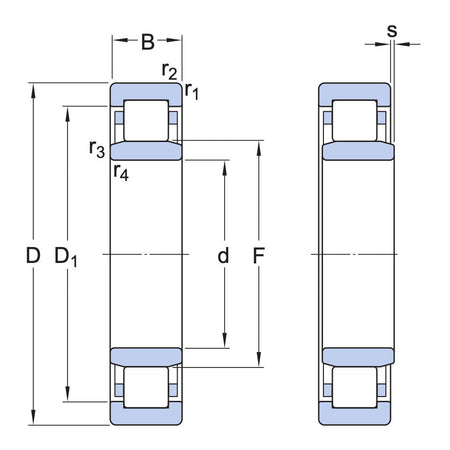

Dimensions mm
d1: 120
D1: 149
F,E: 112,5
r1,2 min: 2,1
r3,4 min: 2,1
S: 1,7
