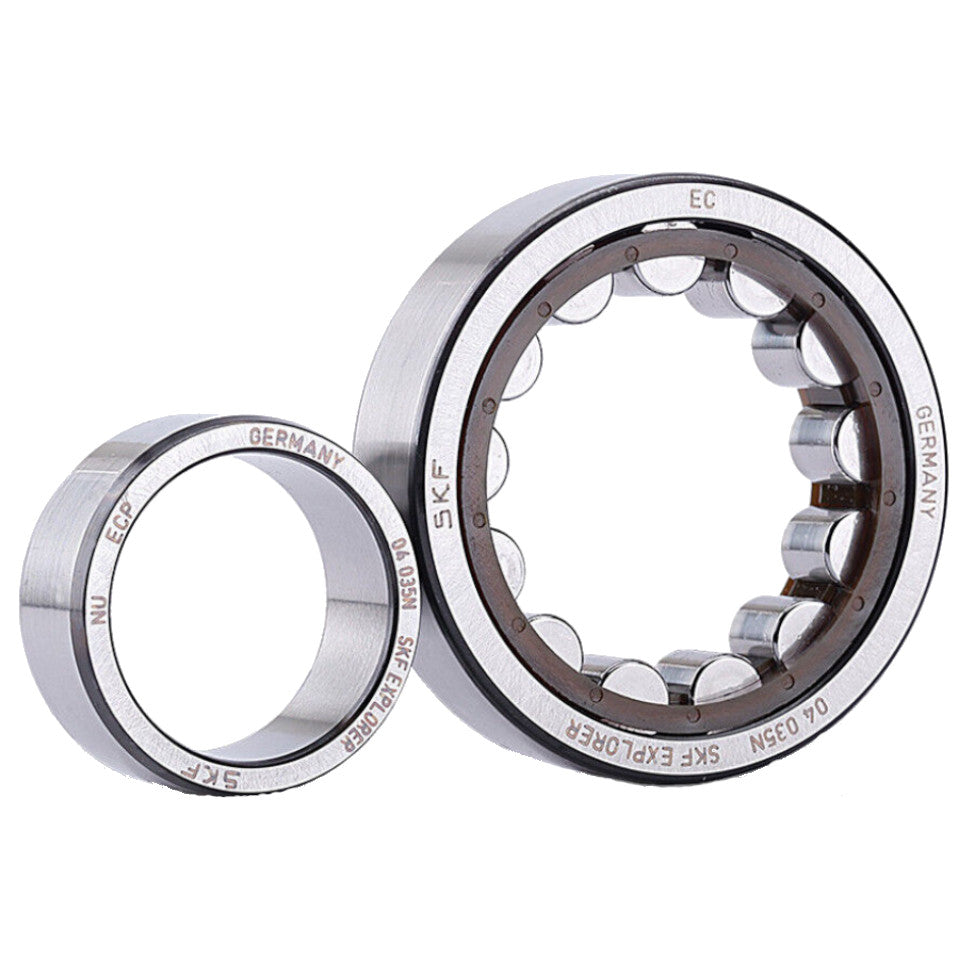

SKF NU Design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.
Principal Dimensions
d: 30mm
D: 62mm
B: 20mm
Basic Load Ratings
Dynamic: 55kN
Static: 49kN
Fatigue Load Limit: 6,1kN
Speed Ratings
Reference speed: 13 000 r/min
Limiting speed: 14 000 r/min
Mass
0.26 kg

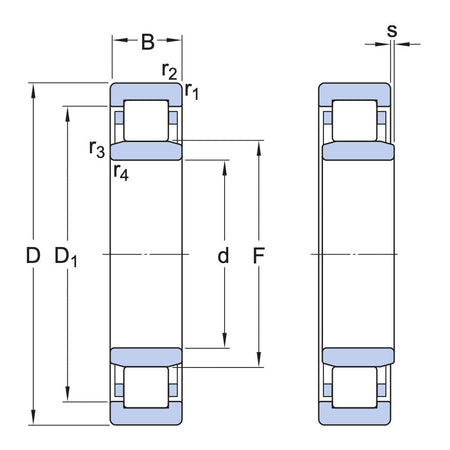

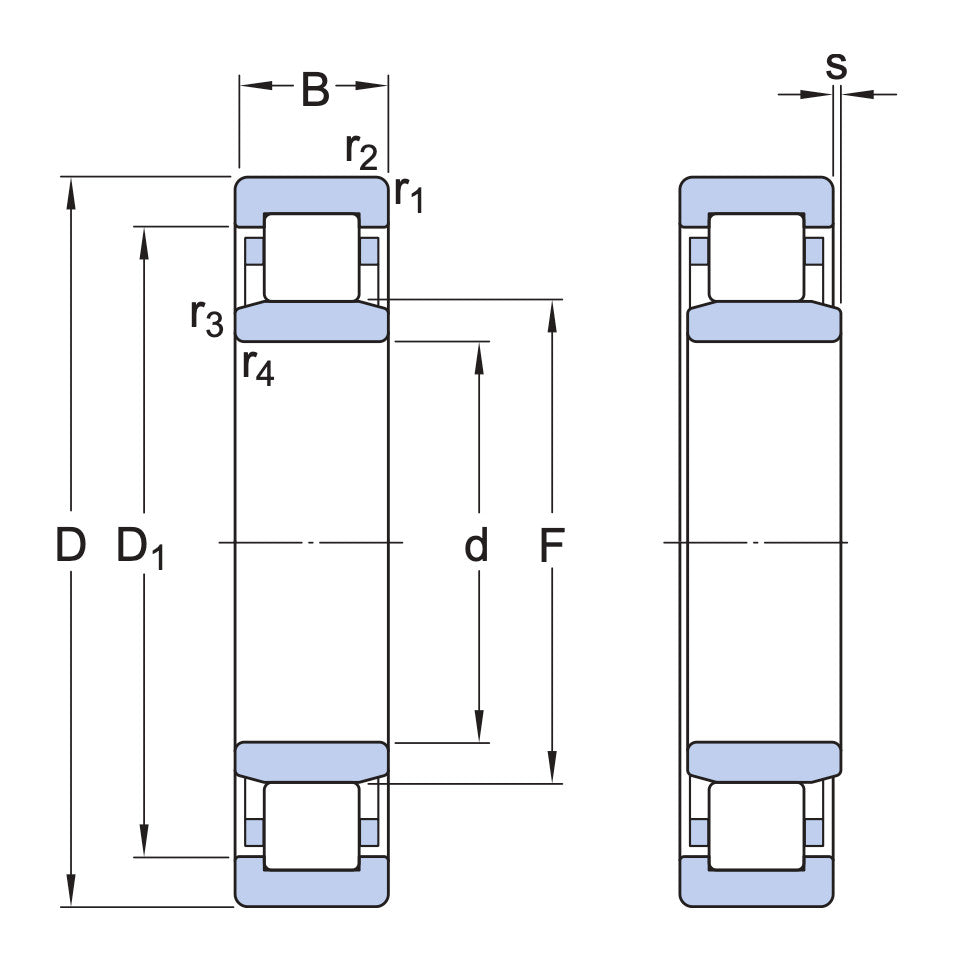

Dimensions mm
d1: -
D1: 52,5
F,E: 37,5
r1,2 min: 1
r3,4 min: 0,6
S: 1,8
