NU2206ECJ SKF Single Row Cylindrical Roller Bearing 30x62x20mm
SKF NU Design metric single row cylindrical roller bearing with steel cage 30mm inside x 62mm outside x 20mm wide
Regular price
£54.92
inc.VAT
£45.77 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability

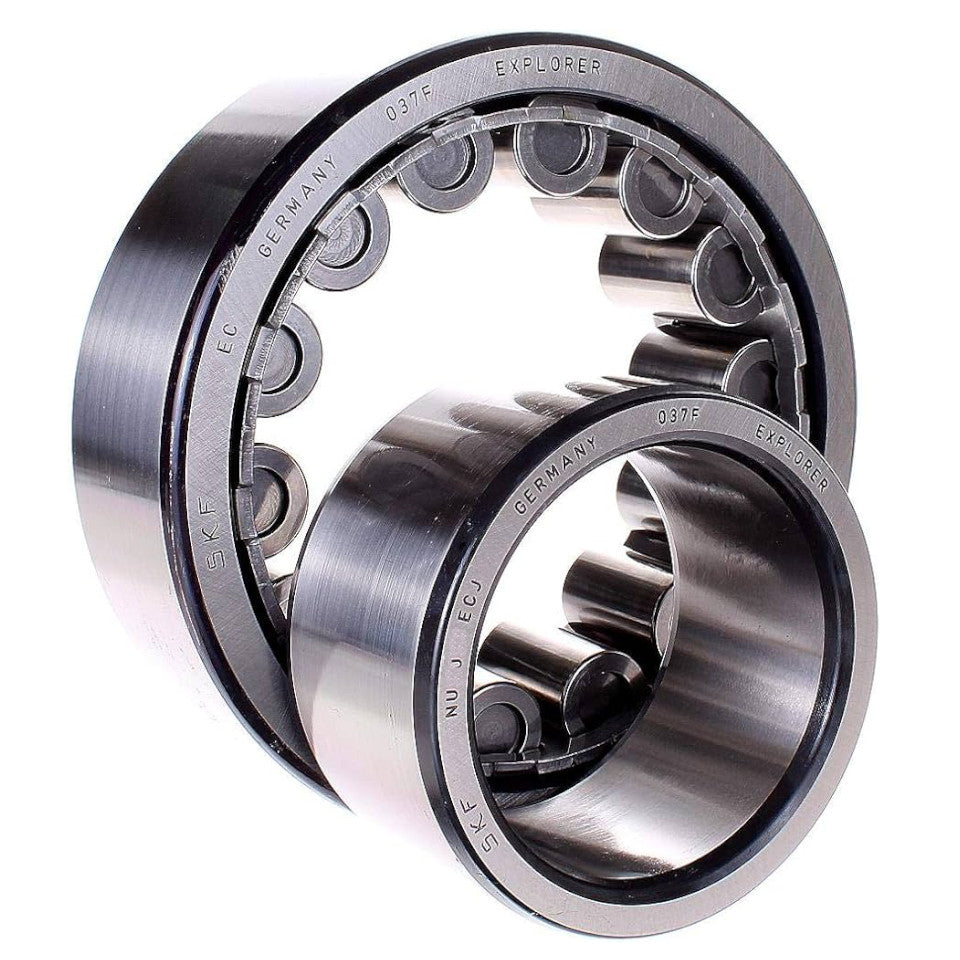

SKF Single row cylindrical roller bearing, NU design
SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

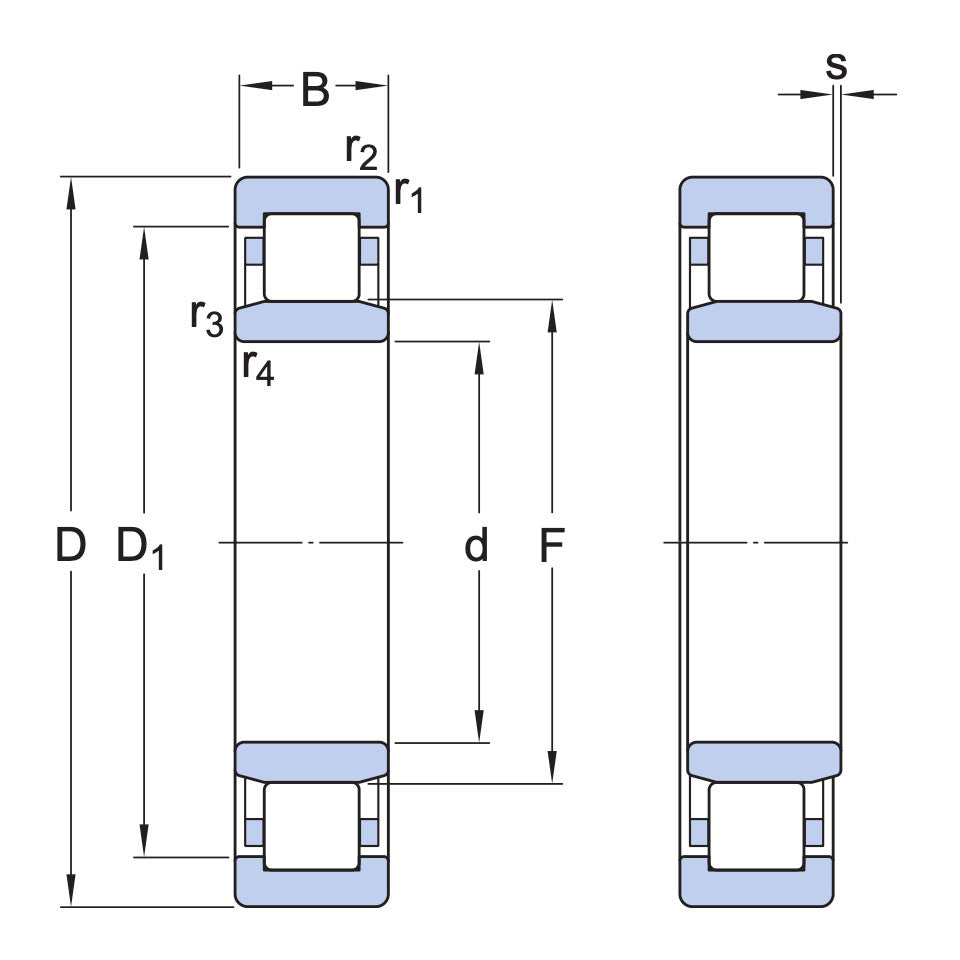

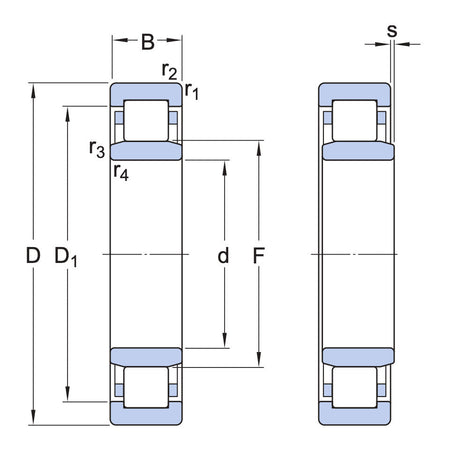

Dimensions
Bore diameter 30 mm
Outside diameter 62 mm
Width 20 mm
Performance
Basic dynamic load rating 55 kN
Basic static load rating 49 kN
Reference speed 13 000 r/min
Limiting speed 14 000 r/min
SKF performance class SKF Explorer
Properties
Bearing part Complete bearing
Axial displacement capability In both directions
Number of rows 1
Locating feature, bearing outer ring None
Bore type Cylindrical
Cage Sheet metal
Number of flanges, outer ring 2
Number of flanges, inner ring 0
Loose flange None
Radial internal clearance CN
Tolerance class Normal
Coating Without
Sealing Without
Lubricant None
Relubrication feature Without
SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
Dimensions
Bore diameter 30 mm
Outside diameter 62 mm
Width 20 mm
Performance
Basic dynamic load rating 55 kN
Basic static load rating 49 kN
Reference speed 13 000 r/min
Limiting speed 14 000 r/min
SKF performance class SKF Explorer
Properties
Bearing part Complete bearing
Axial displacement capability In both directions
Number of rows 1
Locating feature, bearing outer ring None
Bore type Cylindrical
Cage Sheet metal
Number of flanges, outer ring 2
Number of flanges, inner ring 0
Loose flange None
Radial internal clearance CN
Tolerance class Normal
Coating Without
Sealing Without
Lubricant None
Relubrication feature Without
