NU221 ECP SKF Single Row Cylindrical Roller Bearing 105x190x36mm

In stock
SKU: NU221ECP-SKF
SKF NU Design metric single row cylindrical roller bearing with polyamide cage 105mm inside x 190mm outside x 36mm wide
Regular price From £267.02
£222.52 exc.VAT

Product details

  • Vendor SKF
  • SKU NU221ECP-SKF
  • Inside diameter (d) 105mm
  • Outside diameter (D) 190mm
  • Width (B) 36mm
SKF NU Design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 105mm
D: 190mm
B: 36mm

Basic Load Ratings
Dynamic: 300kN
Static: 315kN

Fatigue Load Limit: 36,5kN

Speed Ratings
Reference speed: 3 800 r/min
Limiting speed: 4 300 r/min

Mass
4kg

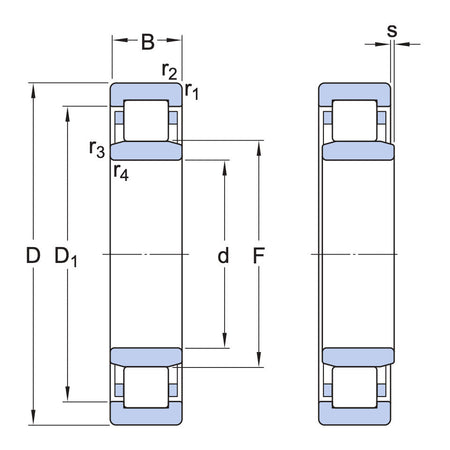

Dimensions mm
d1: 134
D1: 164
F,E: 125
r1,2 min: 2,1
r3,4 min: 2,1
S: 2
