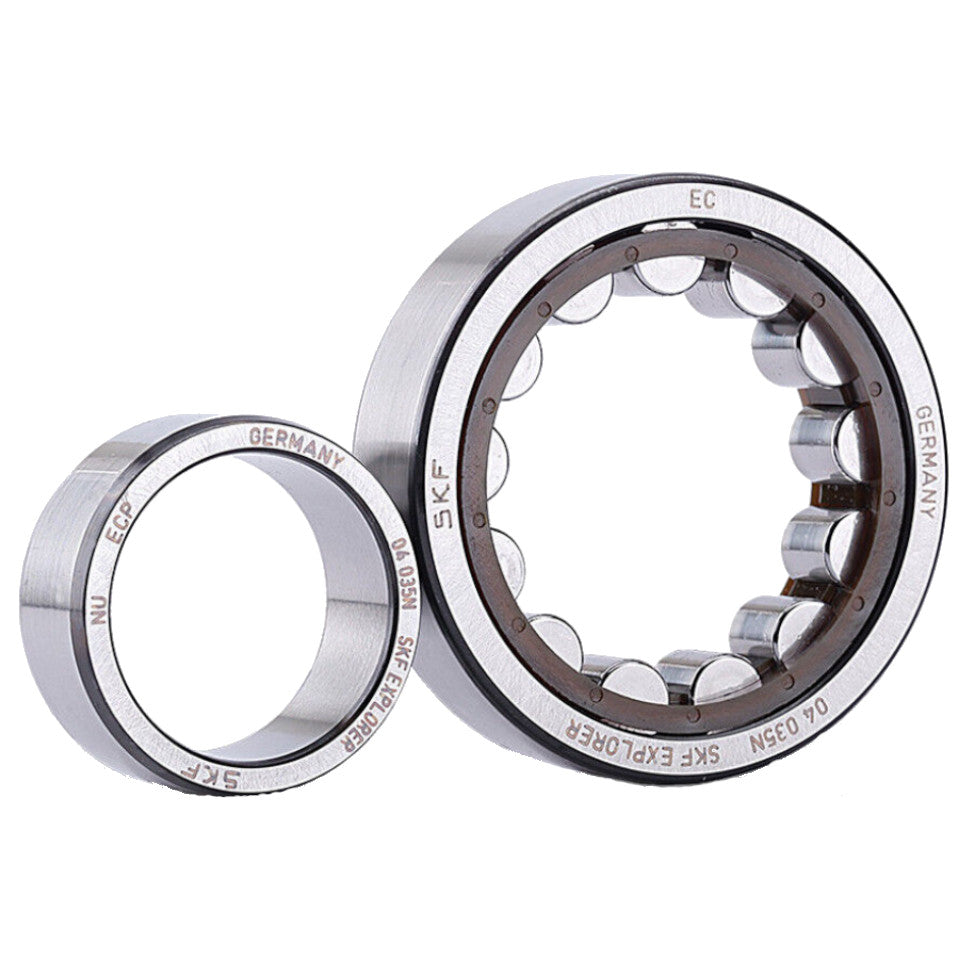

NU2210 ECP SKF Single Row Cylindrical Roller Bearing 50x90x23mm

In stock
SKU: NU2210ECP-SKF
SKF NU Design metric single row cylindrical roller bearing with polyamide cage 50mm inside x 90mm outside x 23mm wide
Regular price From £45.61
£38.01 exc.VAT

Product details

  • Vendor SKF
  • SKU NU2210ECP-SKF
  • Inside diameter (d) 50mm
  • Outside diameter (D) 90mm
  • Width (B) 23mm
SKF NU Design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 50mm
D: 90mm
B: 23mm

Basic Load Ratings
Dynamic: 90kN
Static: 88kN

Fatigue Load Limit: 11,4kN

Speed Ratings
Reference speed: 8 500 r/min
Limiting speed: 9 000 r/min

Mass
0.56 kg

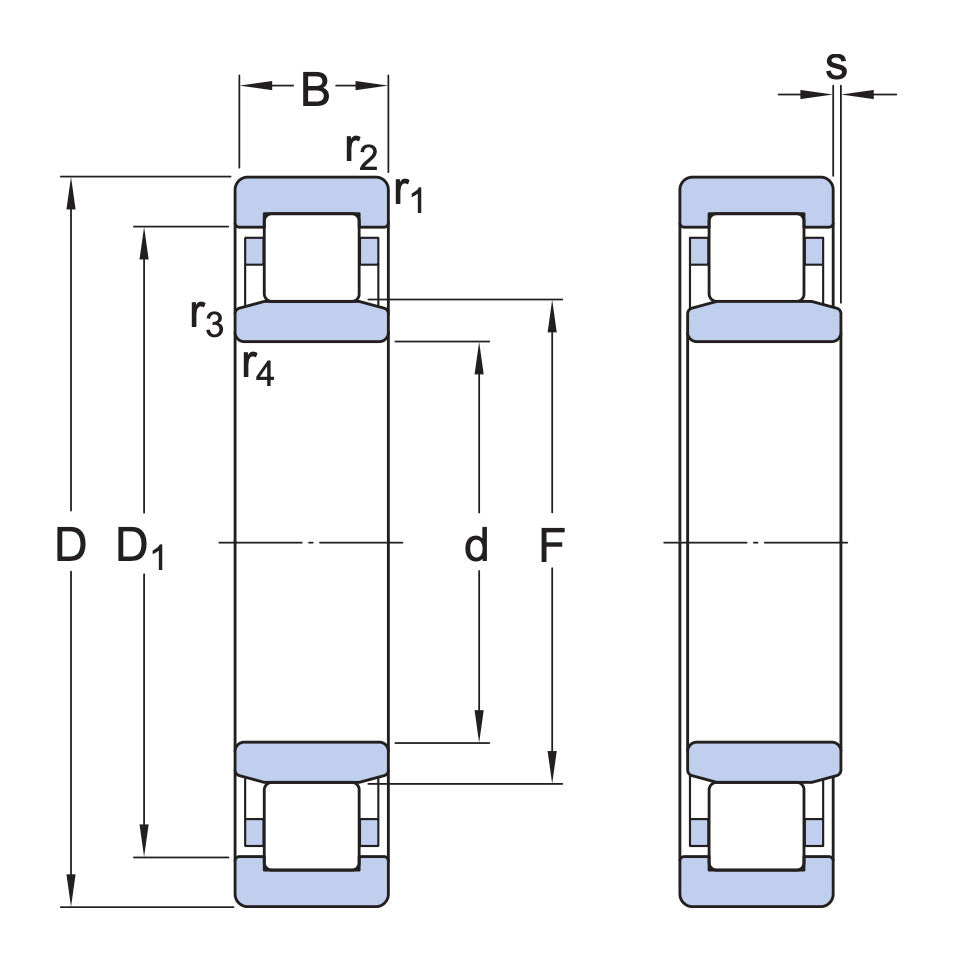

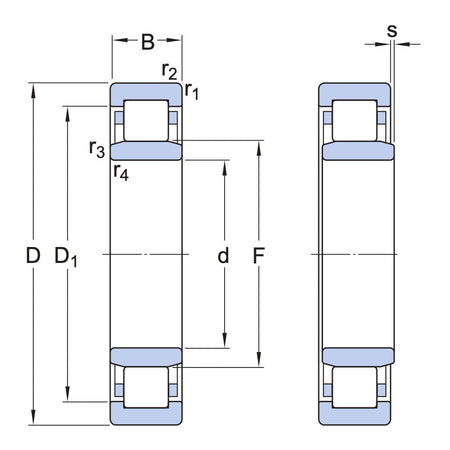

Dimensions mm
d1: -
D1: 78
F,E: 59,5
r1,2 min: 1,1
r3,4 min: 1,1
S: 1,5
