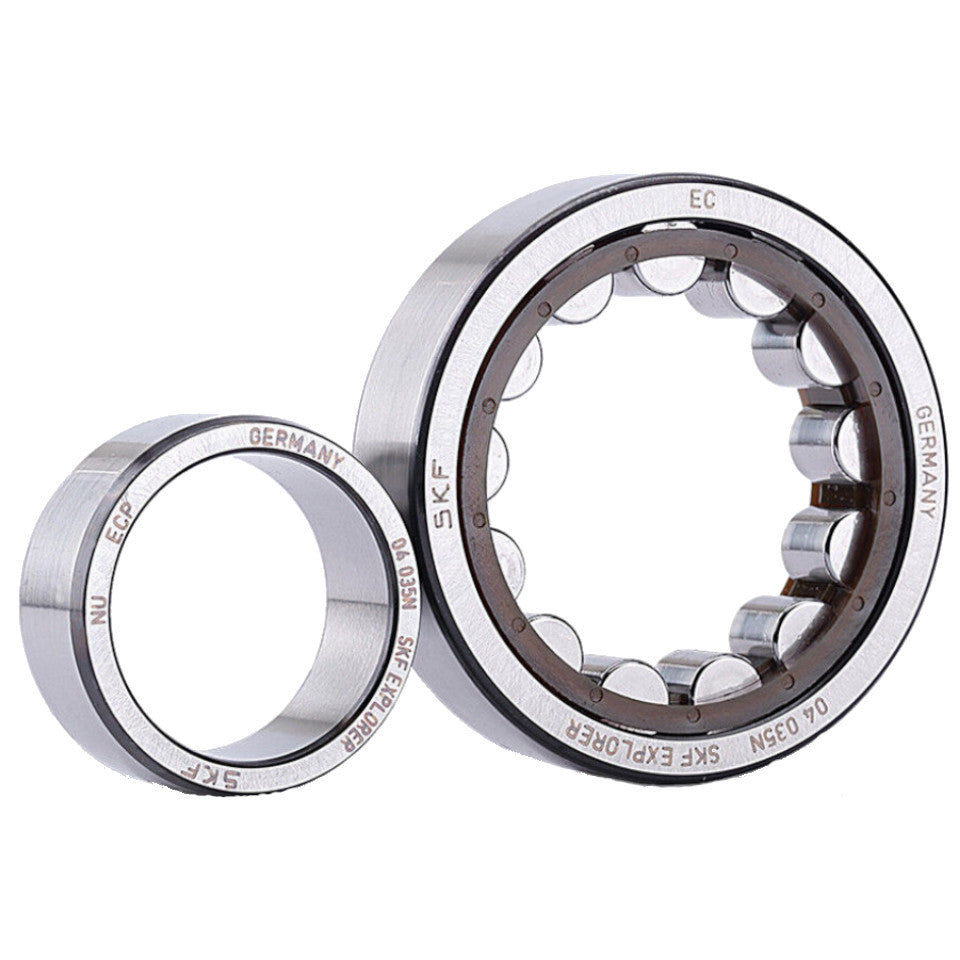

NU2216ECP/C3 SKF Single Row Cylindrical Roller Bearing 80x140x33mm

In stock
SKU: NU2216ECP/C3-SKF
SKF NU Design metric single row cylindrical roller bearing with polyamide cage and C3 Clearance 80mm inside x 140mm outside x 33mm wide
Regular price £122.12 inc.VAT
£101.77 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor SKF
  • SKU NU2216ECP/C3-SKF
  • Inside diameter (d) 80mm
  • Outside diameter (D) 140mm
  • Width (B) 33mm
SKF NU DesignThe outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.Principal Dimensionsd: 80mmD: 140mmB: 33mmBasic Load RatingsDynamic: 212kNStatic: 245kNFatigue... Read full description ↓ Show less ↑

SKF NU Design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 80mm
D: 140mm
B: 33mm

Basic Load Ratings
Dynamic: 212kN
Static: 245kN

Fatigue Load Limit: 31kN

Speed Ratings
Reference speed: 5 300 r/min
Limiting speed: 5 600 r/min

Mass
2kg

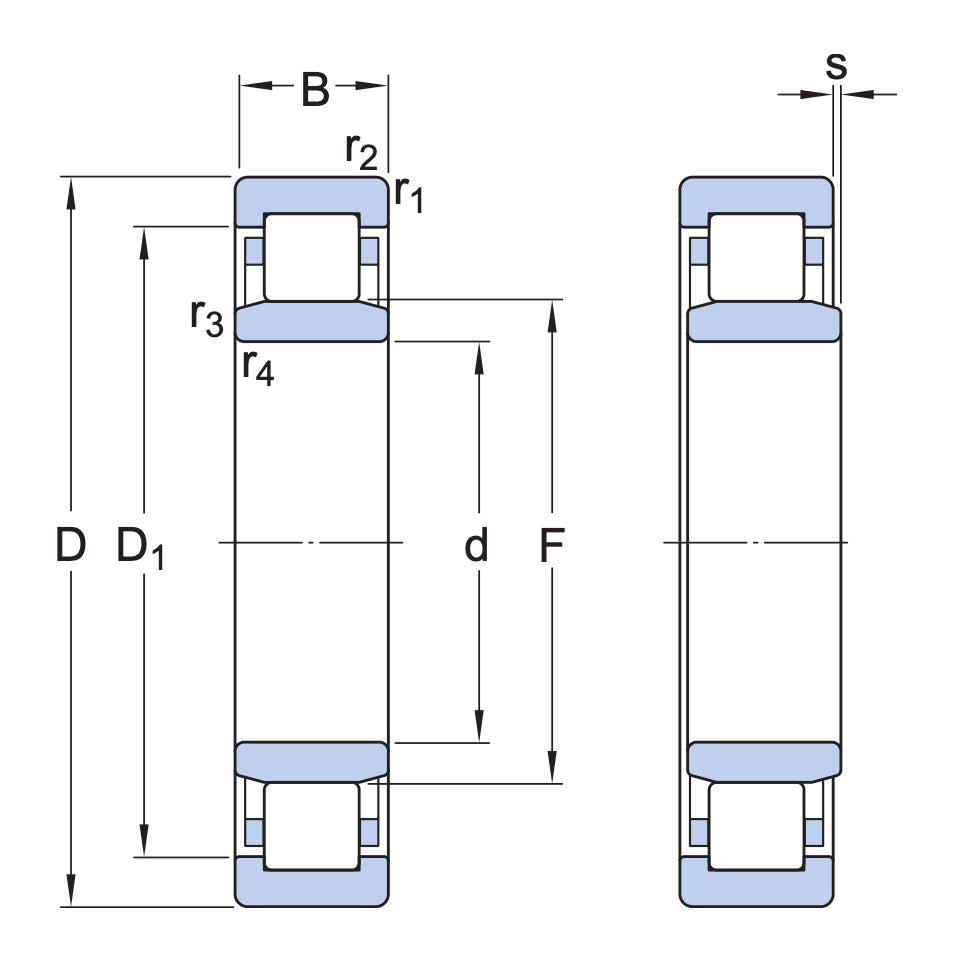

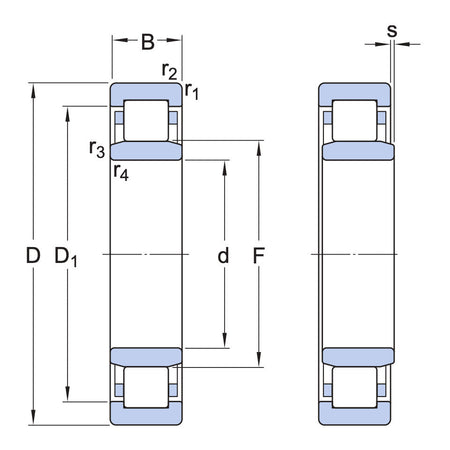

Dimensions mm
d1: 101
D1: 123
F,E: 95,3
r1,2 min: 2
r3,4 min: 2
S: 1,4
