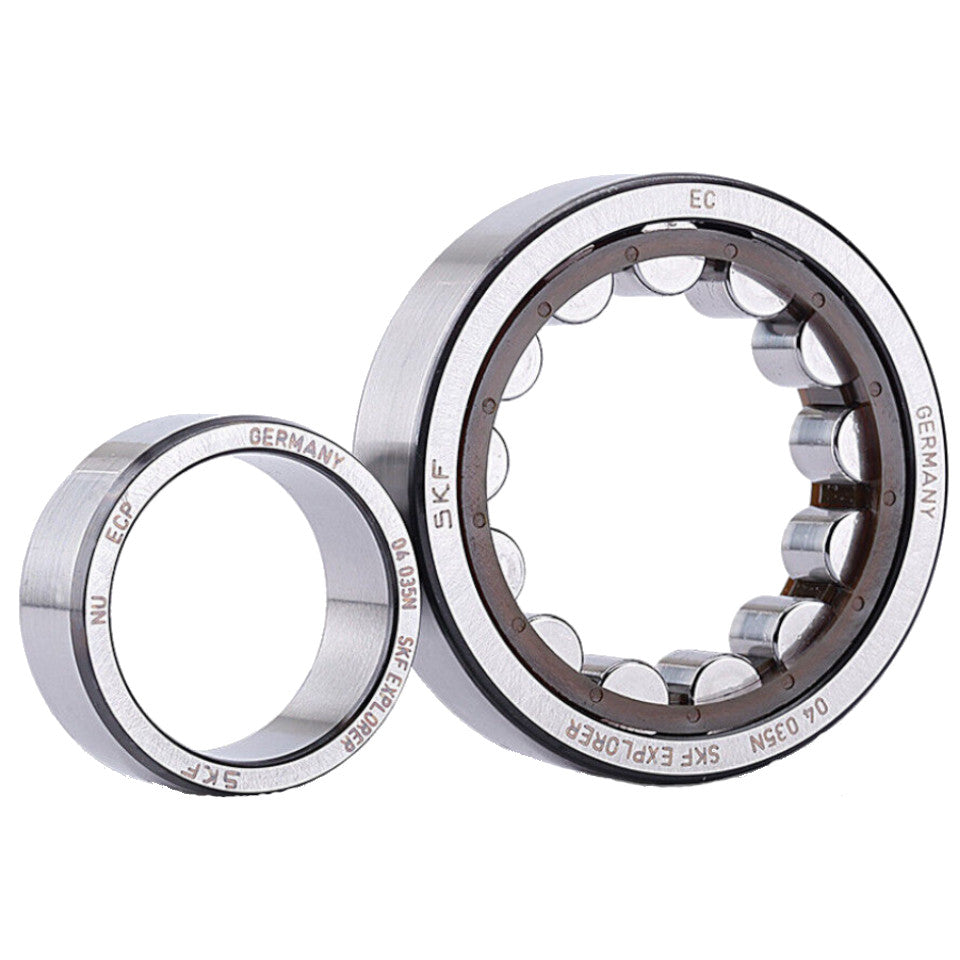

NU2217 ECP SKF Single Row Cylindrical Roller Bearing 85x150x36mm

In stock
SKU: NU2217ECP-SKF
SKF NU Design metric single row cylindrical roller bearing with polyamide cage 85mm inside x 150mm outside x 36mm wide
Regular price From £183.46
£152.88 exc.VAT

Product details

  • Vendor SKF
  • SKU NU2217ECP-SKF
  • Inside diameter (d) 85mm
  • Outside diameter (D) 150mm
  • Width (B) 36mm
SKF NU Design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 85mm
D: 150mm
B: 36mm

Basic Load Ratings
Dynamic: 250kN
Static: 280kN

Fatigue Load Limit: 34,5kN

Speed Ratings
Reference speed: 4 800 r/min
Limiting speed: 5 300 r/min

Mass
2.5kg

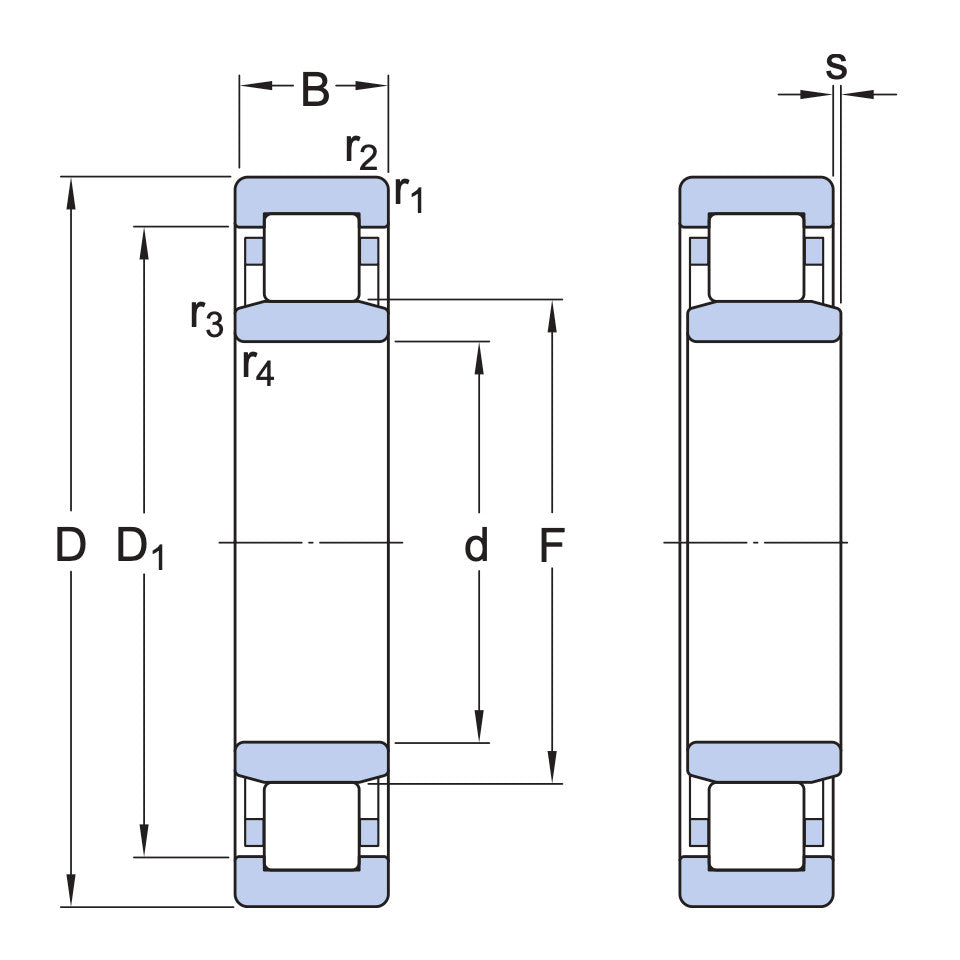

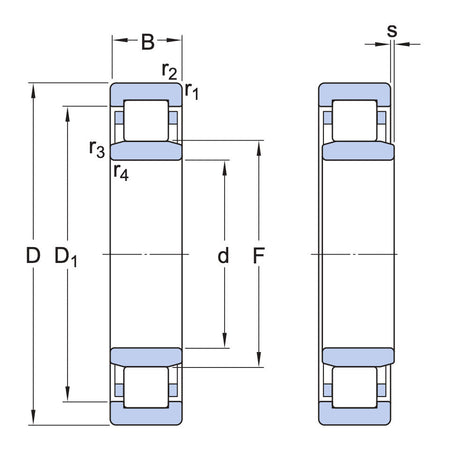

Dimensions mm
d1: -
D1: 131
F,E: 100,5
r1,2 min: 2
r3,4 min: 2
S: 2
