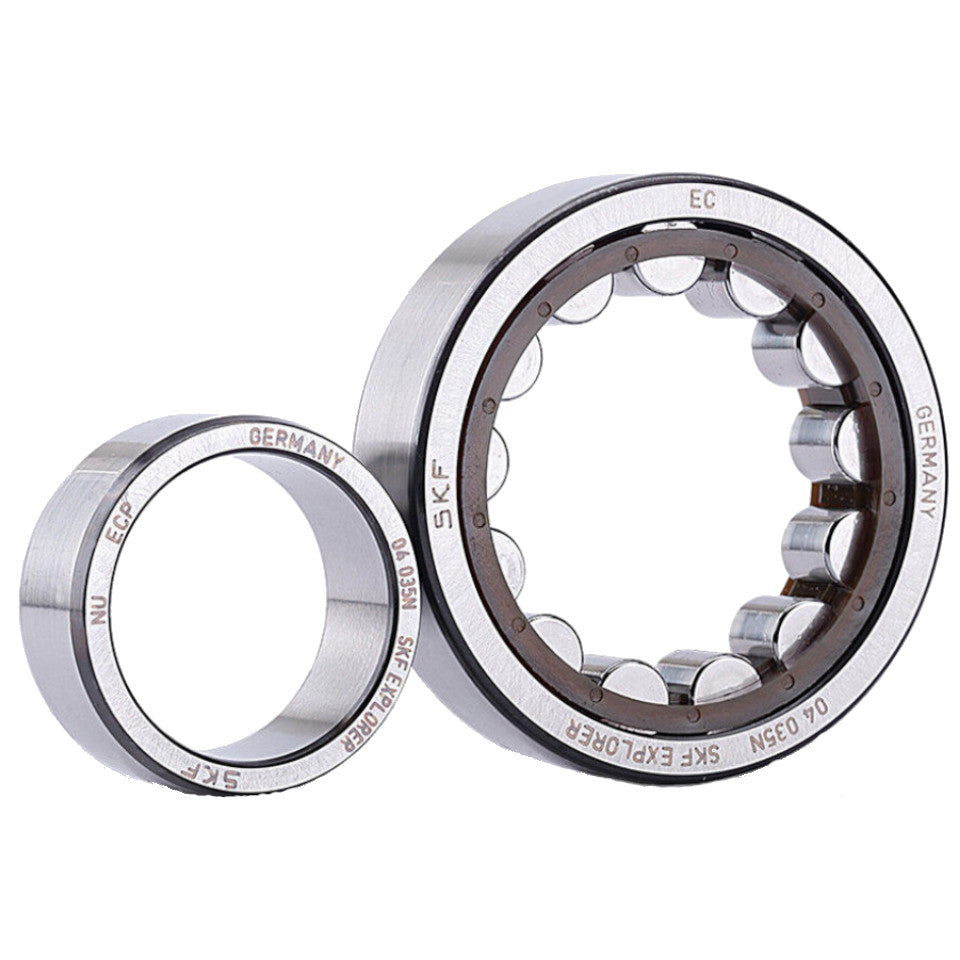

NU2306 ECP SKF Single Row Cylindrical Roller Bearing 30x72x27mm

In stock
SKU: NU2306ECP-SKF
SKF NU Design metric single row cylindrical roller bearing with polyamide cage 30mm inside x 72mm outside x 27mm wide
Regular price From £59.87
£49.89 exc.VAT

Product details

  • Vendor SKF
  • SKU NU2306ECP-SKF
  • Inside diameter (d) 30mm
  • Outside diameter (D) 72mm
  • Width (B) 27mm
SKF NU Design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 30mm
D: 72mm
B: 27mm

Basic Load Ratings
Dynamic: 83kN
Static: 75kN

Fatigue Load Limit: 9,65kN

Speed Ratings
Reference speed: 11 000 r/min
Limiting speed: 12 000 r/min

Mass
0.53 kg

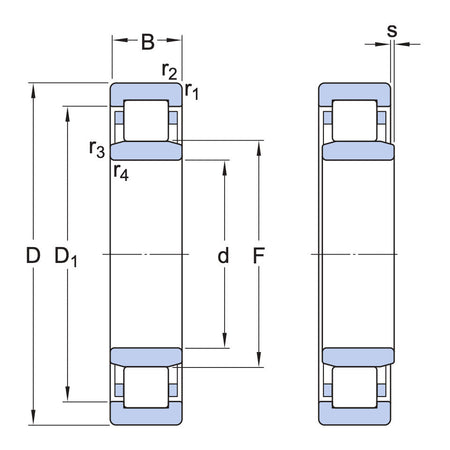

Dimensions mm
d1: -
D1: 58,9
F,E: 40,5
r1,2 min: 1,1
r3,4 min: 1,1
S: 2,4
