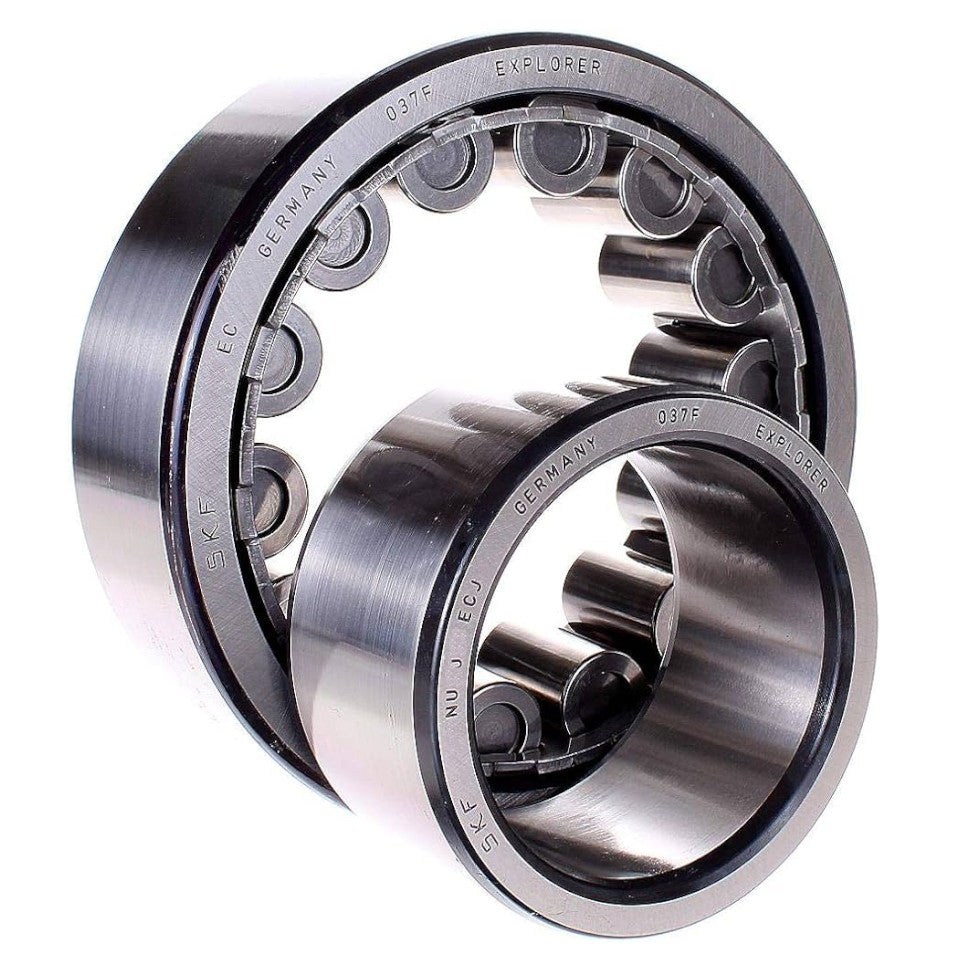

NU2319ECJ SKF Single Row Cylindrical Roller Bearing 95x200x67mm
SKF NU Design metric single row cylindrical roller bearing with steel cage 95mm inside x 200mm outside x 67mm wide
Regular price
£697.50
inc.VAT
£581.25 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
SKF Single row cylindrical roller bearing, NU design
SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design

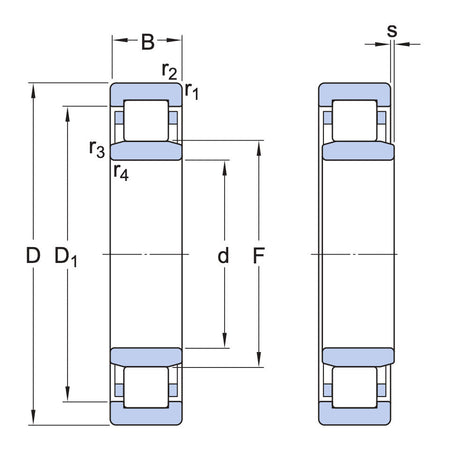

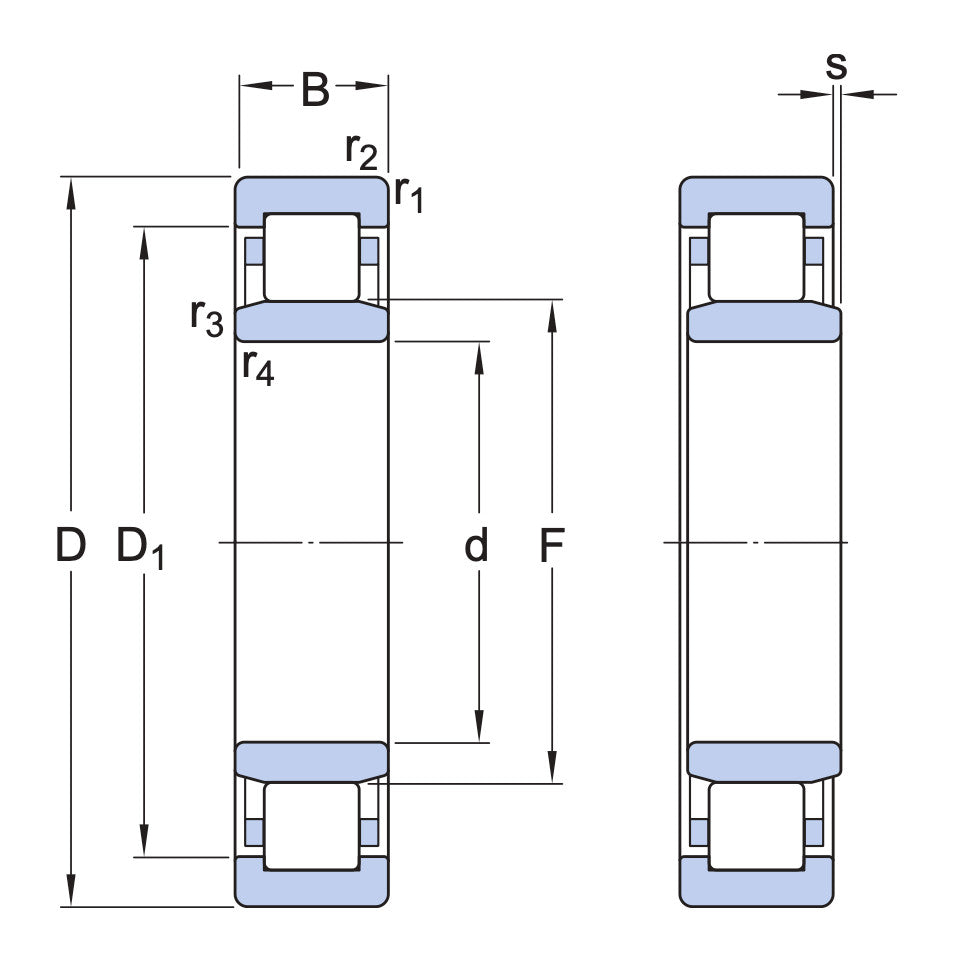

Dimensions
Bore diameter 95 mm
Outside diameter 200 mm
Width 67 mm
Performance
Basic dynamic load rating 530 kN
Basic static load rating 585 kN
Reference speed 3 600 r/min
Limiting speed 4 300 r/min
SKF performance class SKF Explorer
Properties
Bearing part Complete bearing
Axial displacement capability In both directions
Number of rows 1
Locating feature, bearing outer ring None
Bore type Cylindrical
Cage Sheet metal
Number of flanges, outer ring 2
Number of flanges, inner ring 0
Loose flange None
Radial internal clearance CN
Tolerance class Normal
Coating Without
Sealing Without
Lubricant None
Relubrication feature Without
