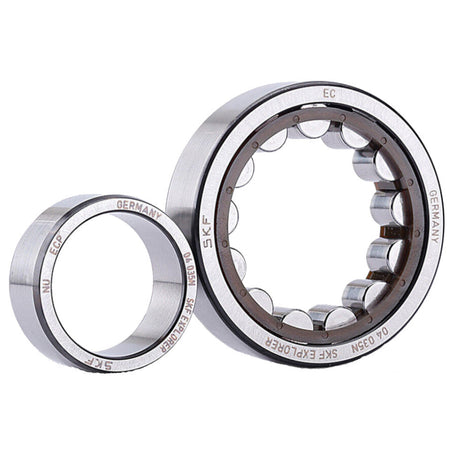

NU303 ECP SKF Single Row Cylindrical Roller Bearing 17x47x14mm

In stock
SKU: NU303ECP-SKF
SKF NU Design metric single row cylindrical roller bearing with polyamide cage 17mm inside x 47mm outside x 14mm wide
Regular price From £82.74
£68.95 exc.VAT

Product details

  • Vendor SKF
  • SKU NU303ECP-SKF
  • Inside diameter (d) 17mm
  • Outside diameter (D) 47mm
  • Width (B) 14mm
SKF NU Design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.

Principal Dimensions
d: 17mm
D: 47mm
B: 14mm

Basic Load Ratings
Dynamic: 24.6kN
Static: 20.4kN

Fatigue Load Limit: 2.55kN

Speed Ratings
Reference speed: 15 000 r/min
Limiting speed: 20 000 r/min

Mass
0.12 kg

Dimensions mm
d1: -
D1: 37
F,E: 24.2
r1,2 min: 1
r3,4 min: 0,6
S: 1
