SKF NU Design
The outer ring of an NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions.
Principal Dimensions
d: 20mm
D: 52mm
B: 15mm
Basic Load Ratings
Dynamic: 35.5kN
Static: 26kN
Fatigue Load Limit: 3.25kN
Speed Ratings
Reference speed: 15 000 r/min
Limiting speed: 18 000 r/min
Mass
0.15 kg

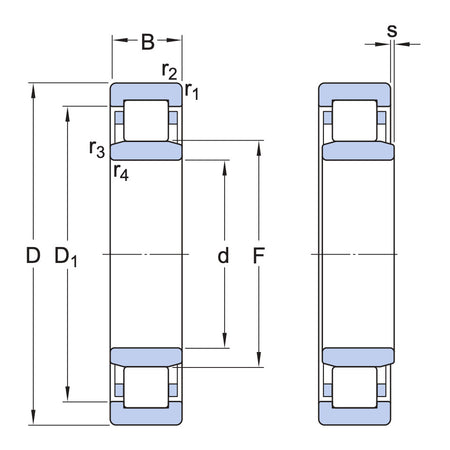

Dimensions mm
d1: 31,2
D1: 42,4
F,E: 27,5
r1,2 min: 1,1
r3,4 min: 0,6
S: 0,9
