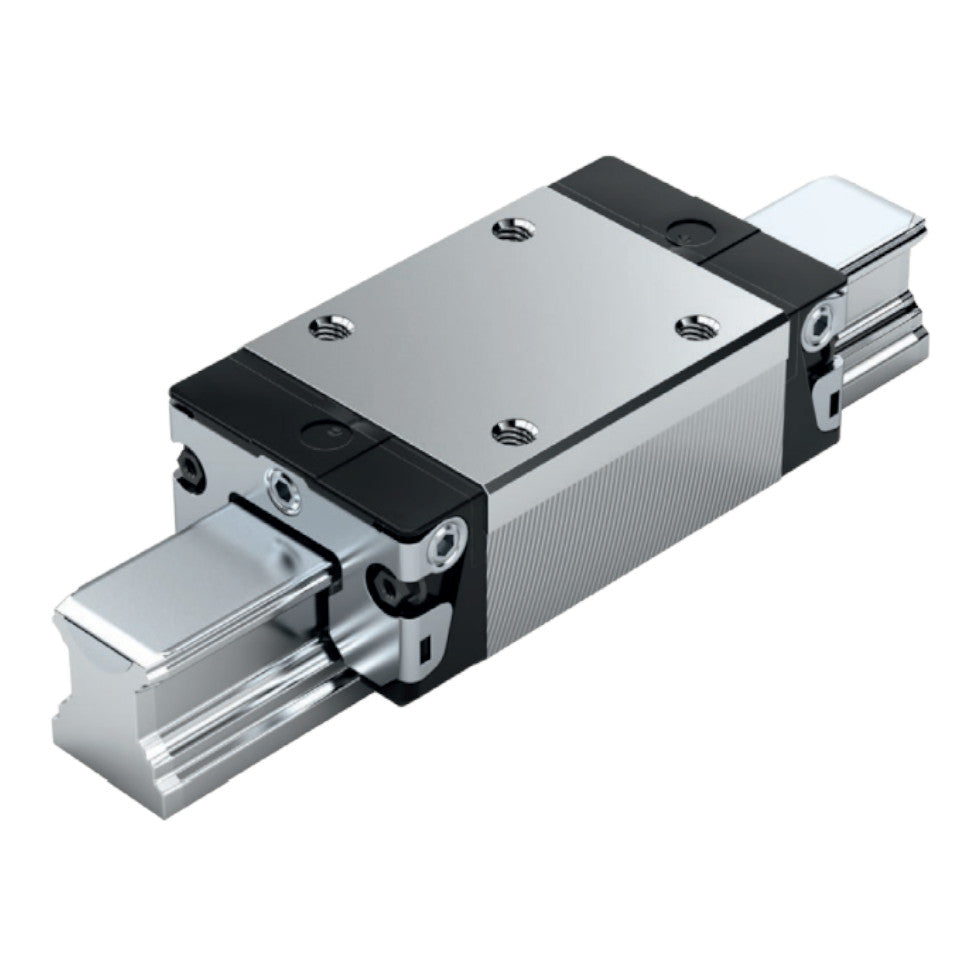

R162229420 KWD-025-SNS-C0-N-1 Bosch Rexroth Ball Runner Block Carriage

The Bosch Rexroth KWD-025-SNS-C0-N-1 is a slimline, high-performance ball runner block designed for large linear motion systems requiring a narrow installation width combined with excellent load capacity and smooth running characteristics. Its SNS configuration — slimline width, normal block length and standard height — provides a compact carriage suitable for constrained spaces while maintaining the robustness and precision expected of a size-25 system. Manufactured from durable carbon steel and supplied pre-lubricated, this block offers long service life with minimal maintenance.

Key Features

• SNS format (Slimline / Normal length / Standard height) — ideal for applications requiring a narrow carriage profile without sacrificing stability or load capacity.

• Size 25 — built for heavier-duty industrial applications with high load and rigidity requirements.

• Carbon steel body — offers excellent strength, rigidity and long-term performance under demanding load conditions.

• C0 preload (preload-free) — provides very smooth, low-resistance movement where preload stiffness is not required.

• Accuracy class N — dependable standard precision for general industrial, automation and machinery use.

• Standard sealing — protects the internal ball tracks from dust and typical contaminants.

• Pre-lubricated and sealed — ready for installation straight out of the box, with minimal initial maintenance.

• High load and moment capacity — withstands multi-directional forces and dynamic loading environments.

• Compatible with Bosch Rexroth size-25 SNS, SNH and FNS rails.

Technical Specifications

• Nominal size: 25 mm

• Block configuration: SNS — Slimline width, Normal block length, Standard height

• Material: Carbon steel

• Preload class: C0 (preload-free / clearance type)

• Accuracy class: N (standard precision)

• Seal type: Standard seal (SS), no ball chain

• Block width: approximately 54 mm

• Block length: approximately 86–90 mm

• Block height with rail: approximately 36 mm

• Approximate block weight: around 0.90–1.00 kg

• Dynamic load capacity (C): around 36,000–40,000 N

• Static load capacity (C₀): around 47,000–55,000 N

• Dynamic torsional moment capacity (Mt): approximately 450–500 Nm

• Dynamic longitudinal moment capacity (ML): approximately 320–380 Nm

• Static moment capacities (Mt₀ / ML₀): approximately 600 Nm / 500 Nm

• Maximum permissible speed: 5 m/s

• Maximum permissible acceleration: 500 m/s²

• Lubrication: Factory grease-filled, with relubrication ports if required

• Operating temperature range: –10°C to +80°C

• Mounting style: Slimline top-mount carriage for compact rail layouts

Typical Applications

The KWD-025-SNS-C0-N-1 is ideal for:

• CNC machinery, milling and routing systems with limited transverse space

• High-load automation and assembly machinery

• Linear axes in industrial robotics and gantry systems

• Precision motion equipment requiring smooth, preload-free travel

• Replacement or upgrade projects using existing size-25 slimline rails
