Home » R162289420 KWD-020-SNS-C0-N-1 Bosch Rexroth Ball Runner Block Carriage

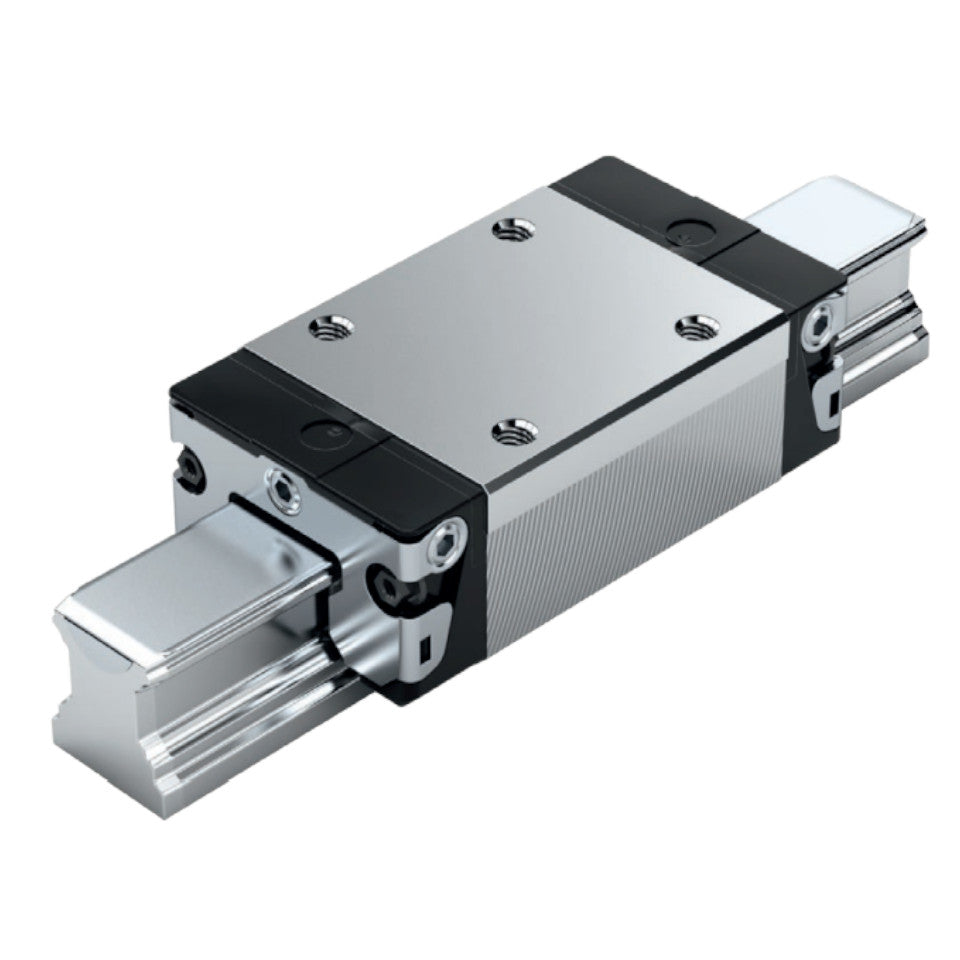

R162289420 KWD-020-SNS-C0-N-1 Bosch Rexroth Ball Runner Block Carriage
Premium Quality

R162289420 KWD-020-SNS-C0-N-1 Bosch Rexroth Ball Runner Block Carriage

In stock
SKU: R162289420-REXROTH
No reviews
Ball runner block, SNS, size 20, steel CS, accuracy standard, preload-free, without ball chain
£95.02 inc.VAT
£79.18 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Premium
  • Vendor Bosch Rexroth
  • SKU R162289420-REXROTH
  • Inside diameter (d) 20mm
Description Shipping Information Returns
The Bosch Rexroth KWD-020-SNS-C0-N-1 is a high-precision, preload-free ball runner block designed for linear motion applications where smooth travel, reliability and flexibility are essential. Its SNS format — slimline width, normal block length, and standard height — makes it ideal for installations with limited transverse... Read full description ↓ Show less ↑

The Bosch Rexroth KWD-020-SNS-C0-N-1 is a high-precision, preload-free ball runner block designed for linear motion applications where smooth travel, reliability and flexibility are essential. Its SNS format — slimline width, normal block length, and standard height — makes it ideal for installations with limited transverse space while still offering excellent load capacity and compatibility with all SNS-series guide rails. The block is built from carbon steel, factory-pre-lubricated and sealed for long-term performance.

Key Features

  • SNS format (Slimline / Normal / Standard height) — offers a narrow footprint for space-constrained installations without compromising load capability or guidance stability.

  • Size 20 — larger than size-15 variants, providing increased load capacity and rigidity for heavier duty applications.

  • Carbon steel construction (CS) — ensures robustness, stiffness, and long service life under demanding conditions.

  • Preload Class C0 (Preload-free / clearance type) — facilitates smooth, low-friction motion when preload is not required.

  • Accuracy Class N (Standard precision) — suitable for most automation, machine tool and linear-guidance tasks that don’t require ultra-high precision.

  • Factory-pre-lubricated and sealed — ready to install, with long-term lubrication and minimal initial maintenance required.

  • Interchangeable with all compatible SNS guide rails of the same size and accuracy class — making system upgrades or replacements straightforward.

Technical Specifications

  • Nominal Size: 20

  • Format: SNS — Slimline width, Normal length, Standard height

  • Material: Carbon steel (CS)

  • Preload Class: C0 (Preload-free)

  • Accuracy Class: N (Standard precision)

  • Seal Type: SS — Standard seal, without ball chain

  • Mass (approx): 0.35 kg

  • Dynamic load capacity (C): ≈ 23,400 N

  • Static load capacity (C₀): ≈ 29,800 N

  • Dynamic torsional moment load capacity (Mt): ≈ 300 Nm

  • Dynamic longitudinal (side) moment load capacity (ML): ≈ 200 Nm

  • Maximum linear speed (vₘₐₓ): 5 m/s

  • Maximum permissible acceleration (aₘₐₓ): 500 m/s²

  • Permissible ambient temperature range: –10 °C to +80 °C (short-term peaks up to ~100 °C possible under correct lubrication)

Typical Applications

The KWD-020-SNS-C0-N-1 is especially suitable for:

  • CNC machines, milling / routing equipment, and precision machining centres

  • Automation, assembly, and pick-and-place systems requiring smooth, reliable linear motion

  • Industrial robotics and material handling where compact rail footprint and high load capacity are needed

  • Retrofit or maintenance applications using Bosch Rexroth SNS-size-20 guide rails

  • General-purpose linear motion systems where preload-free, low-friction performance is desirable
