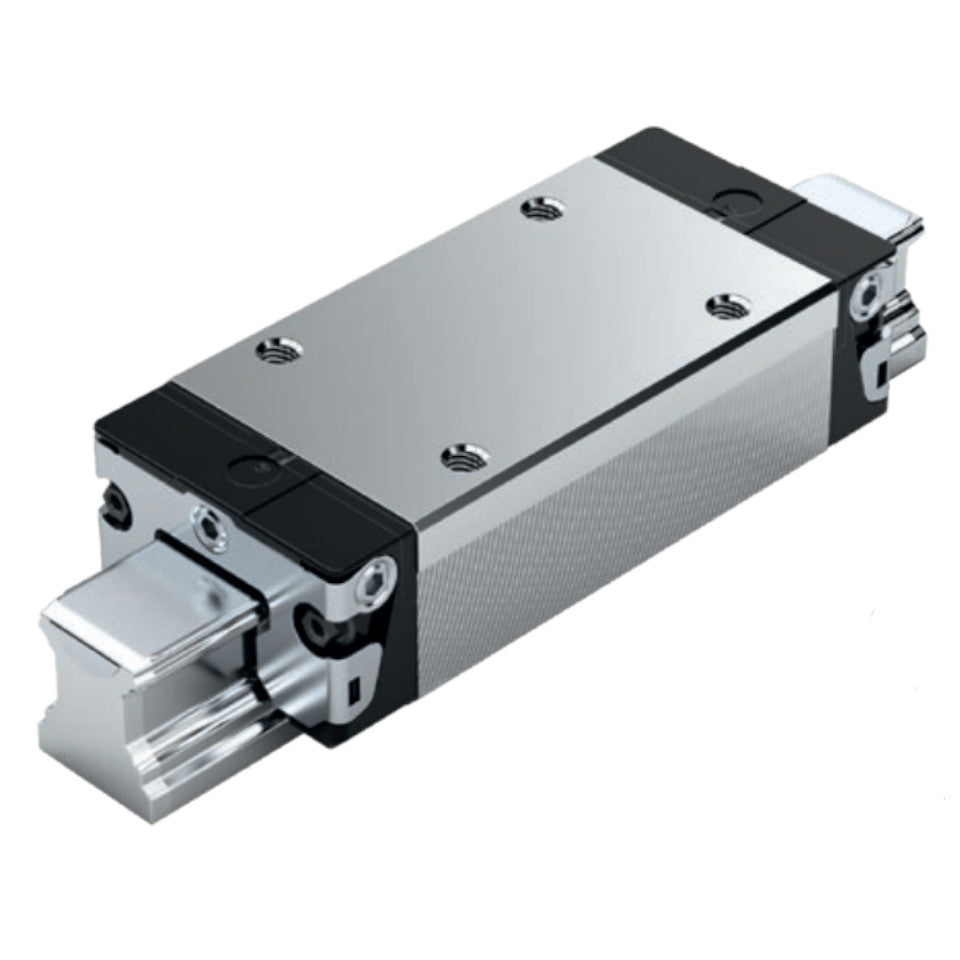

R162329420 KWD-025-SLS-C0-N-1 Bosch Rexroth Ball Runner Block Carriage

The Bosch Rexroth KWD-025-SLS-C0-N-1 is a long-body slimline ball runner block designed for large linear motion systems requiring high stability, smooth running and a compact installation width. The SLS configuration — slimline width, long block length and standard height — provides enhanced running smoothness and reduced deflection over longer travel distances, making it ideal for precision-heavy and high-load applications. Manufactured from robust carbon steel and supplied pre-lubricated, this size-25 block delivers dependable, long-term performance in demanding industrial environments.

Key Features

• SLS format (Slimline / Long length / Standard height) — extended block length provides greater stability, improved load distribution and smoother motion.

• Size 25 — suited to large and heavy-duty industrial applications.

• Carbon steel construction — ensures exceptional rigidity, strength and durability under continuous or heavy loading.

• C0 preload (preload-free) — delivers smooth, low-resistance movement where minimal friction is preferred.

• Accuracy class N — reliable general-purpose precision ideal for automation, CNC and mechanical systems.

• Standard sealing — protects the internal tracks from dust and contaminants in typical workshop environments.

• Pre-lubricated and sealed — ready for immediate installation with no initial maintenance required.

• High static, dynamic and moment load capability — suitable for systems with complex, multi-directional load requirements.

• Compatible with Bosch Rexroth size-25 SLS, SNS and SNH rails.

Technical Specifications

• Nominal size: 25 mm

• Block configuration: SLS — Slimline width, Long block length, Standard height

• Material: Carbon steel

• Preload class: C0 (preload-free)

• Accuracy class: N (standard precision)

• Seal type: Standard seal (SS), without ball chain

• Block width: approximately 54 mm

• Block length: approximately 110–115 mm (long-body format)

• Block height with rail: approximately 36 mm

• Approximate weight: around 1.1–1.2 kg

• Dynamic load capacity (C): approximately 36,000–40,000 N

• Static load capacity (C₀): approximately 47,000–55,000 N

• Dynamic torsional moment capacity (Mt): approximately 500–600 Nm

• Dynamic longitudinal moment capacity (ML): approximately 350–420 Nm

• Static moment capacities (Mt₀ / ML₀): approximately 700 Nm / 550 Nm

• Maximum permissible speed: 5 m/s

• Maximum permissible acceleration: 500 m/s²

• Lubrication: Factory grease-filled, relubrication possible when required

• Operating temperature range: –10°C to +80°C

• Mounting style: Slimline top-mount carriage with elongated runner-body geometry

Typical Applications

The KWD-025-SLS-C0-N-1 is ideal for:

• CNC machinery requiring highly stable, long-travel linear motion

• Industrial automation systems with extended movement cycles

• Gantry systems, robotic linear axes and heavy-duty precision positioning stages

• Material handling and assembly machinery requiring smooth, friction-optimised travel

• Replacement or upgrade use in existing size-25 slimline long-body rail systems
