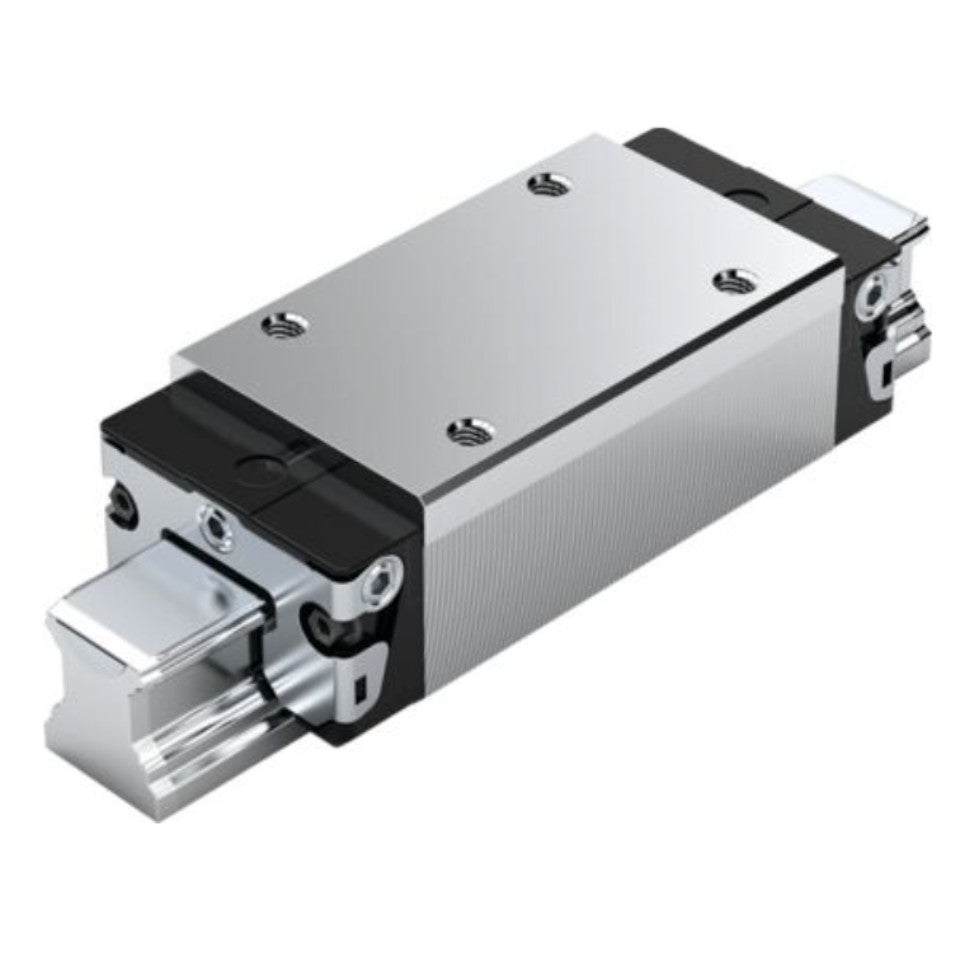

R162429420 KWD-025-SLH-C0-N-1 Bosch Rexroth Ball Runner Block Carriage

The Bosch Rexroth KWD-025-SLH-C0-N-1 is a high-profile slimline ball runner block designed for large linear rail systems requiring narrow installation width, increased rigidity and excellent moment load resistance. The SLH configuration — slimline width, long block length and high block height — provides enhanced stiffness, reduced deflection and improved stability over longer travels. Constructed from premium carbon steel and supplied pre-lubricated, this size-25 runner block is ideal for demanding industrial environments where precision, strength and long service life are essential.

Key Features

• SLH format (Slimline / Long length / High block height) — long-body design improves running stability, while the high block height enhances rigidity and moment load capacity.

• Size 25 — suitable for large, heavy-duty linear motion applications.

• Carbon steel body — ensures outstanding strength, rigidity and resistance to deformation under high load.

• C0 preload (preload-free) — offers very smooth, low-friction movement where minimal resistance is desired.

• Accuracy class N — dependable standard precision suitable for general industrial and automation applications.

• Standard sealing — protects internal ball tracks from dust and contamination.

• Pre-lubricated and sealed — supplied ready to install with no initial servicing required.

• High static, dynamic and moment load ratings — suitable for multi-directional loads and heavy-duty linear motion systems.

• Compatible with Bosch Rexroth size-25 SLH, SLS, SNS and SNH rails.

Technical Specifications

• Nominal size: 25 mm

• Block configuration: SLH — Slimline width, Long block length, High block height

• Material: Carbon steel

• Preload class: C0 (preload-free)

• Accuracy class: N (standard precision)

• Seal type: Standard seal (SS), without ball chain

• Block width: approximately 54–60 mm

• Block length: approximately 110–115 mm

• Block height with rail: approximately 40–45 mm

• Block weight: around 1.2–1.3 kg

• Dynamic load capacity (C): approximately 36,000–40,000 N

• Static load capacity (C₀): approximately 48,000–55,000 N

• Dynamic torsional moment capacity (Mt): approximately 550–650 Nm

• Dynamic longitudinal moment capacity (ML): approximately 380–450 Nm

• Static moment capacities (Mt₀ / ML₀): approximately 750–800 Nm / 600–650 Nm

• Maximum permissible speed: 5 m/s

• Maximum permissible acceleration: 500 m/s²

• Lubrication: Factory grease-filled, with relubrication ports where required

• Operating temperature range: –10°C to +80°C

• Mounting style: Slimline long-body high-profile carriage, suitable for compact-width installations needing high rigidity

Typical Applications

The KWD-025-SLH-C0-N-1 is ideal for:

• CNC machining centres and milling systems requiring long-travel stability and high rigidity

• Heavy-duty industrial automation lines with narrow installation envelopes

• Gantry systems, robotic tracks and high-force linear actuators

• Material handling, assembly systems and precision positioning stages

• Replacement or upgrade projects using existing size-25 slimline long-body high-profile rails
