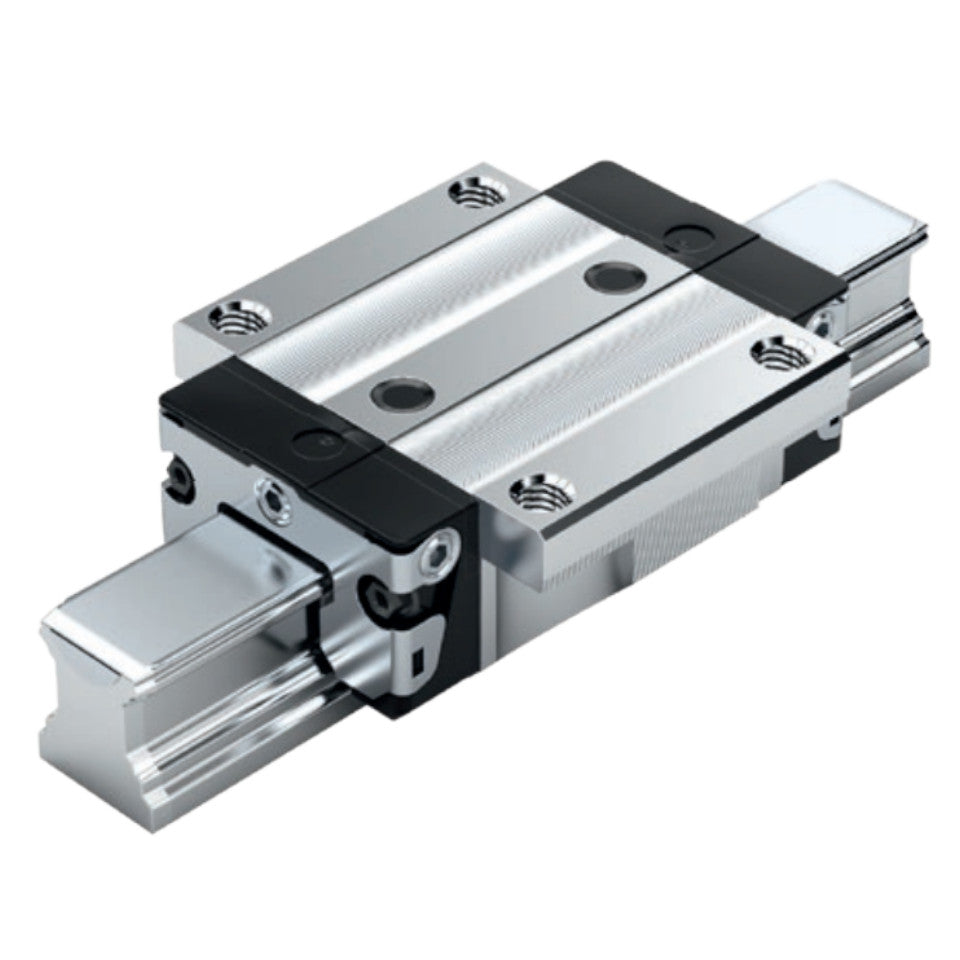

R165119420 KWD-015-FNS-C0-N-1 Bosch Rexroth Ball Runner Block Carriage
Couldn't load pickup availability
Product details
- Quality Premium
- Vendor Bosch Rexroth
- SKU R165119420-REXROTH
- Inside diameter (d) 15mm
The Bosch Rexroth KWD-015-FNS-C0-N-1 is a flange-base ball runner block engineered for reliable, high-rigidity linear motion. Its FNS format (flange width, normal length, standard height) gives a stable mounting base and consistent performance even under heavy or uneven loads. With size 15 and carbon-steel construction,... Read full description ↓ Show less ↑
The Bosch Rexroth KWD-015-FNS-C0-N-1 is a flange-base ball runner block engineered for reliable, high-rigidity linear motion. Its FNS format (flange width, normal length, standard height) gives a stable mounting base and consistent performance even under heavy or uneven loads. With size 15 and carbon-steel construction, this block is suited for demanding automation, machining, and linear-motion applications where strength, stability and smooth travel are required.
Pre-lubricated and factory-sealed, this runner block is designed for long operational life with minimal maintenance — perfect for high-duty environments and industrial systems.
Key Features
-
FNS design (Flange / Normal length / Standard height) — offers a wider mounting footprint and stable rail engagement.
-
Size 15 — compact yet capable of handling significant load for its form-factor.
-
Carbon steel body (CS) — maximises rigidity, durability and resistance to deformation under load.
-
Preload Class C0 (preload-free / clearance type) — provides smooth, low-friction motion and is ideal where preload is not required.
-
Accuracy Class N (standard precision) — gives reliable repeatability and positional accuracy for general automation, CNC and linear-motion systems.
-
Standard seal (SS), ball-chain free version — reduces maintenance needs and simplifies installation while preserving sealing integrity.
-
Pre-lubricated & preserved at factory — ready for installation, suited to long-term operation with minimal maintenance intervals.
Technical Specifications
-
Nominal Size: 15
-
Format: FNS – Flange / Normal length / Standard height
-
Material: Carbon steel (CS)
-
Preload Class: C0 (Preload-free / clearance)
-
Accuracy Class: N (Standard)
-
Block Width: 47 mm (flange width)
-
Block Length: 58.2 mm
-
Block Height with rail: 24 mm
-
Block weight (approx): 0.20 kg
-
Dynamic load capacity (C): 9,860 N
-
Static load capacity (C₀): 12,700 N
-
Load moment capacities (typical): torsional Mt ≈ 95 Nm, longitudinal ML ≈ 68 Nm (static moment capacities higher)
-
Seal: SS – standard seal, no ball chain
-
Lubrication: Factory-pre-lubricated, recommended grease (e.g. Dynalub 510), relubrication via lubrication nipple possible.
Typical Applications
The KWD-015-FNS-C0-N-1 is ideal for:
-
Industrial automation and assembly machinery requiring stable, repeatable linear motion.
-
CNC machines, milling, engraving or routing machines where flange mounting and robust guidance are needed.
-
Pick-and-place, handling or robotic systems needing smooth, low-friction travel without preload.
-
Retrofit or maintenance of existing linear guide systems that use size-15 rails.
-
Applications where load capacity, rigidity and stability across multiple loading directions are more important than preload-induced stiffness.
