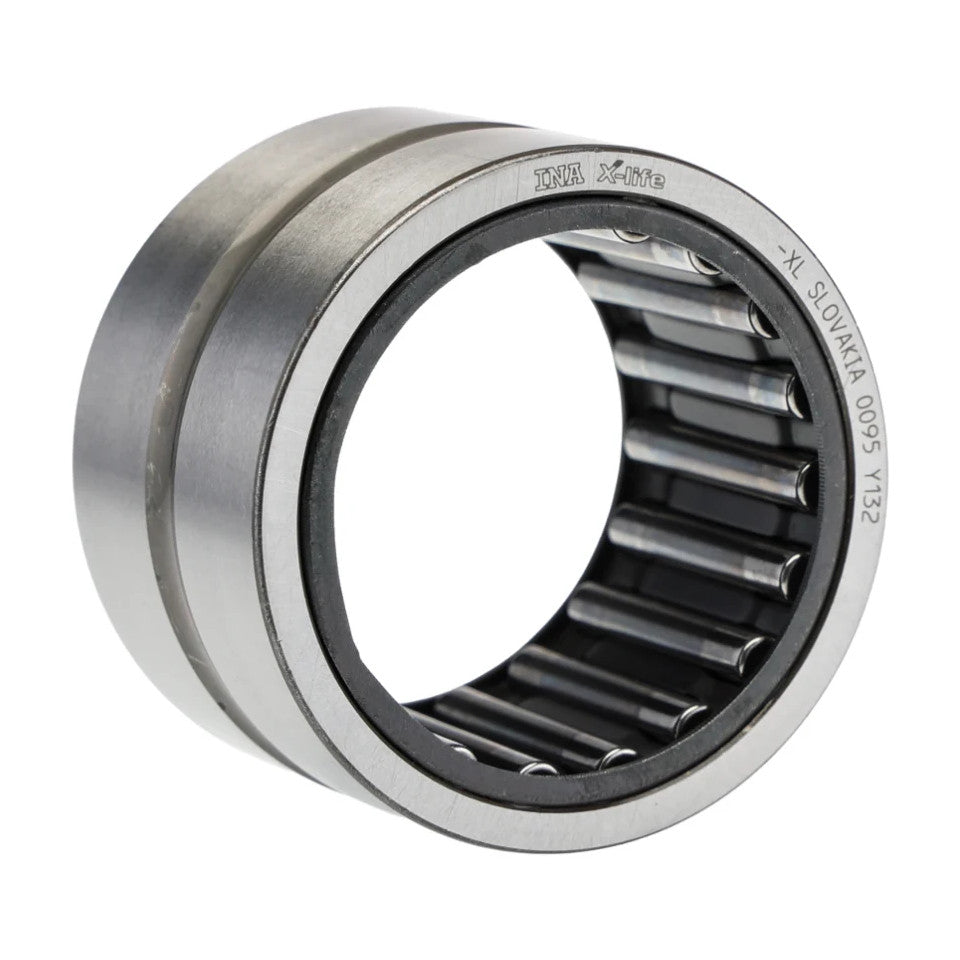

RNA6906-XL INA Needle Roller Bearing without Inner Ring 35x47x30mm
INA Needle roller bearing without inner ring 35mm inside x 47mm outside x 30mm width
Regular price
£51.60
inc.VAT
£43.00 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Needle roller bearings with ribs:
The outer ring forms a self-retaining unit with the needle roller and cage assembly. These radially compact bearings with high load capacity are highly suitable for designs with limited radial space. The bearings are available with and without inner ring and in both sealed and open versions.
Bearings without an inner ring are the best solution for bearing arrangements where the shaft can be hardened and ground.
Needle roller bearings with an inner ring are used if the shaft is not configured as a rolling bearing raceway.
Series RNA49..RSR and NA49..RSR are sealed on one side, the designs RNA49..2RSR and NA49..2RSR have contact seals on both sides.

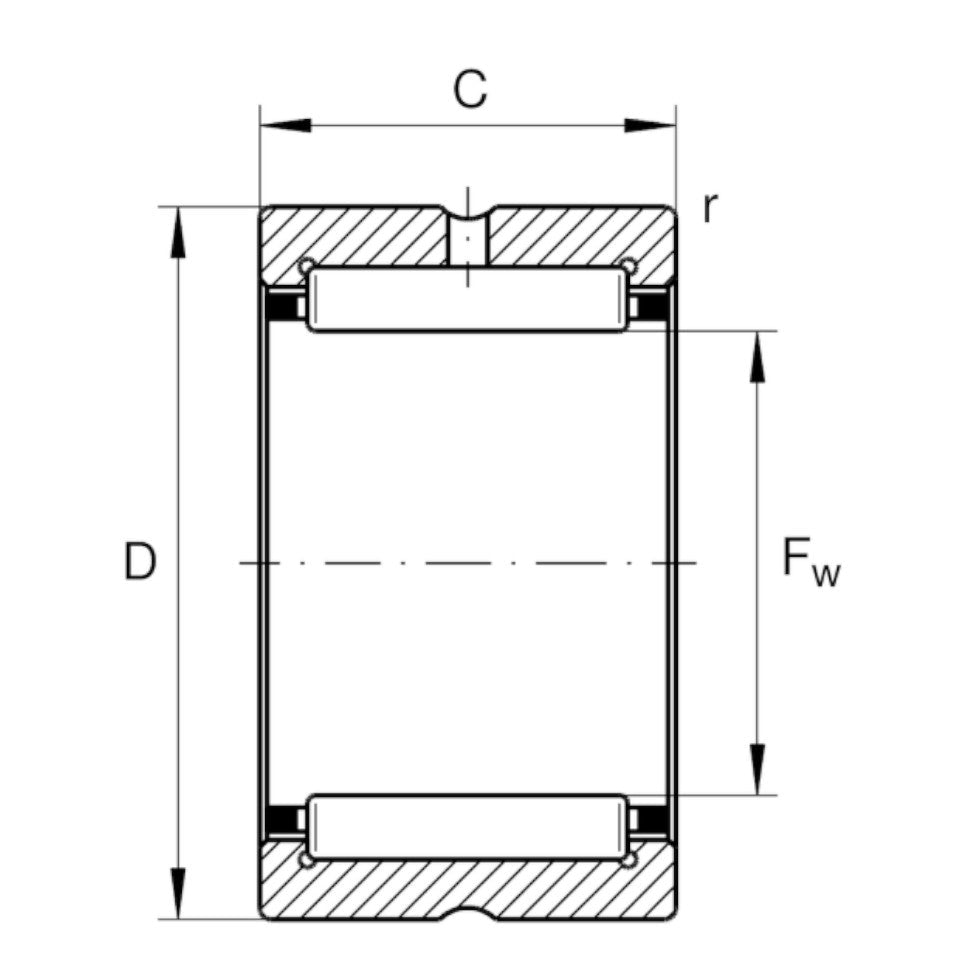

Dimensions:
Fw: 35mm
D: 47mm
C: 30mm
r min: 0.3mm
Basic dynamic load rating, radial: 49000 N
Basic static load rating, radial: 71000 N
Fatigue limit load, radial: 12900 N
Limiting speed: 12000 1/min
Mass: 126.0g
The outer ring forms a self-retaining unit with the needle roller and cage assembly. These radially compact bearings with high load capacity are highly suitable for designs with limited radial space. The bearings are available with and without inner ring and in both sealed and open versions.
Bearings without an inner ring are the best solution for bearing arrangements where the shaft can be hardened and ground.
Needle roller bearings with an inner ring are used if the shaft is not configured as a rolling bearing raceway.
Series RNA49..RSR and NA49..RSR are sealed on one side, the designs RNA49..2RSR and NA49..2RSR have contact seals on both sides.
Dimensions:
Fw: 35mm
D: 47mm
C: 30mm
r min: 0.3mm
Basic dynamic load rating, radial: 49000 N
Basic static load rating, radial: 71000 N
Fatigue limit load, radial: 12900 N
Limiting speed: 12000 1/min
Mass: 126.0g
