S6008-2RSR-HLC FAG Stainless Steel Sealed Deep Groove Ball Bearing 40x68x15mm
FAG Single row deep groove stainless steel ball bearing with two rubber seals 40mm inside x 68mm outside x 15mm width
Regular price
£87.12
inc.VAT
£72.60 exc.VAT
FREE UK MAINLAND DELIVERY ON ORDERS OVER £50
Couldn't load pickup availability
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.

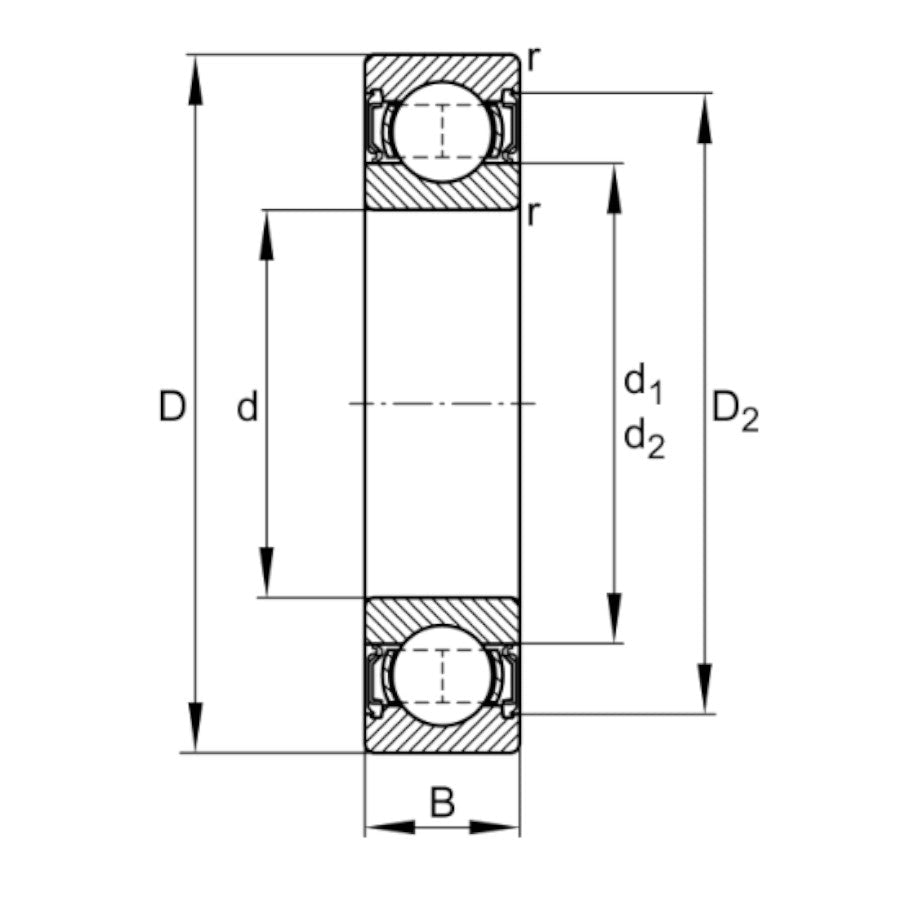

Principal Dimensions
Inside diameter: 40mm
Outside diameter: 68mm
Width: 15mm
Basic Load Ratings
Dynamic: 14.3kn
Static: 9.24kn
Speed Ratings
Reference speed:
9,240 r/min
Limiting speed: 5,400 r/min
Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance free. A sealed bearings seals has contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
Principal Dimensions
Inside diameter: 40mm
Outside diameter: 68mm
Width: 15mm
Basic Load Ratings
Dynamic: 14.3kn
Static: 9.24kn
Speed Ratings
Reference speed:
9,240 r/min
Limiting speed: 5,400 r/min
