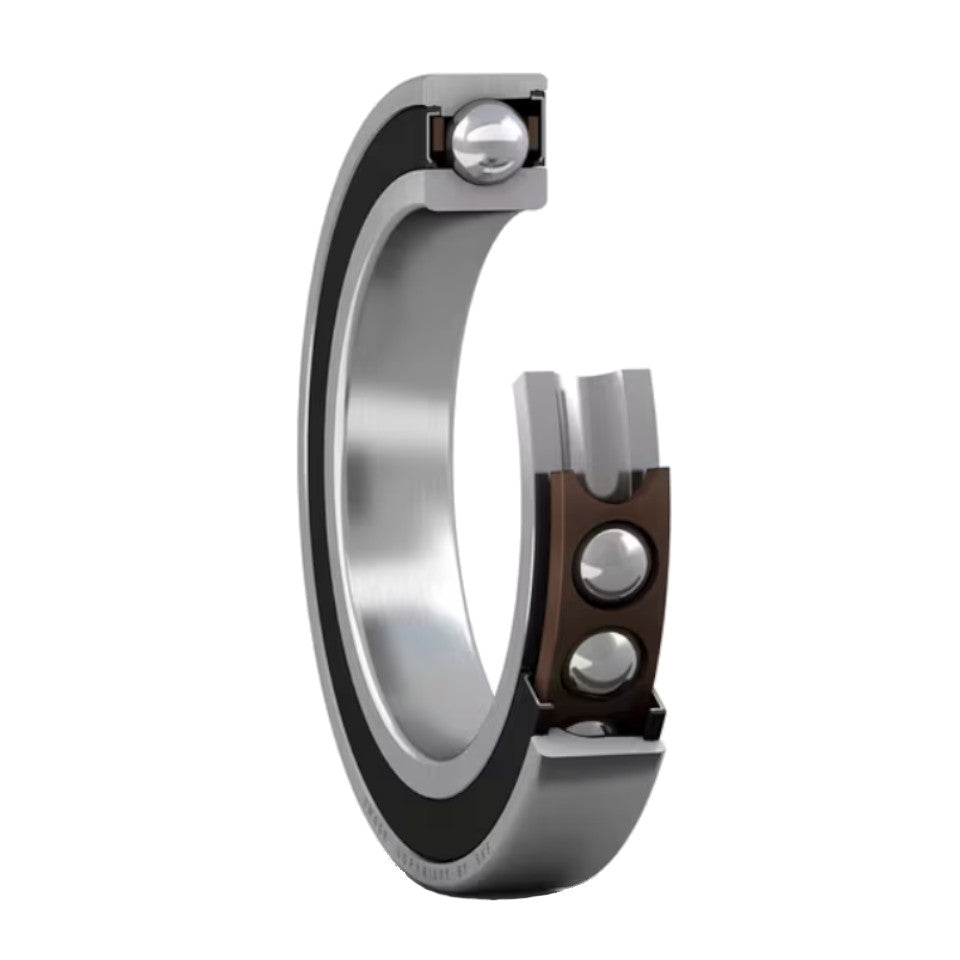

These super-precision, high-capacity, single row angular contact ball bearings, with non-contact seals, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed to accommodate heavy loads at relatively high speeds under low to moderate operating temperatures. Being universally matchable, they can be used together in arrangements to provide effective load sharing, without the use of shims or similar devices.
Very high running accuracy
Very high load carrying capacity
Universally matchable
Non-contact seals
Integral sealing prolongs bearing service life
Dimensions
d 35 mm Bore diameter
D 62 mm Outside diameter
B 14 mm Width
d1 43.7 mm Shoulder diameter of inner ring (large side face)
d2 43.7 mm Shoulder diameter of inner ring (small side face)
D2 55.57 mm Shoulder diameter of outer ring (large side face)
r1,2 min. 1 mm Chamfer dimension
r3,4 min. 0.3 mm Chamfer dimension
a 13.6 mm Distance from side face to pressure point
Calculation data
Basic dynamic load rating C 15.6 kN
Basic static load rating C 9.5 kN
Fatigue load limit P 0.4 kN
Contact angle α 15 °
Ball diameter D 7.938 mm
Number of rows i 1
Number of balls (per bearing) z 16
Universal matching bearing Yes, back-to-back (<>), face-to-face (><) or tandem(>>)
Tolerance class P4A
Sealing Seal on both sides
Product net weight 0.151 kg
