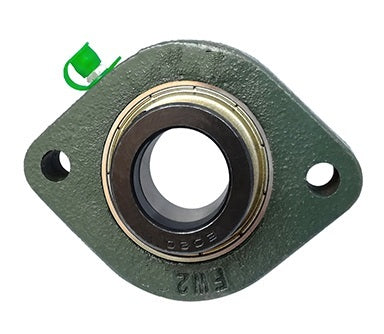

SBFD bearings are a series of light-duty, two-bolt flange bearing units designed for compact installations where space is limited. These units feature a cast iron housing and are equipped with a sealed bearing insert that includes an eccentric locking collar, allowing for secure attachment to the shaft. The design also incorporates a grease nipple for re-lubrication, enhancing the bearing's longevity and performance.
Shaft diameter: 19.05mm
Bearing No: SB204
Housing No: SB204

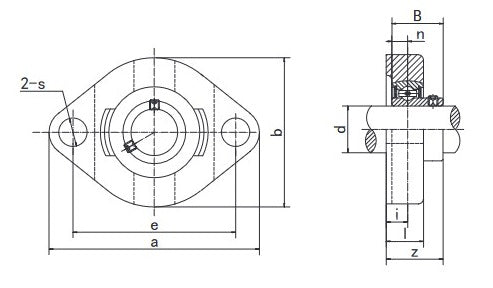

Dimensions (mm)
d: 19.05mm
a: 90mm
e: 71mm
b: 67mm
i: 9.5mm
s: 10mm
I: 17mm
z: 27.5mm
B1: 25mm
n: 7mm
Bolt hole: M8
Mass: 0.37 kg
