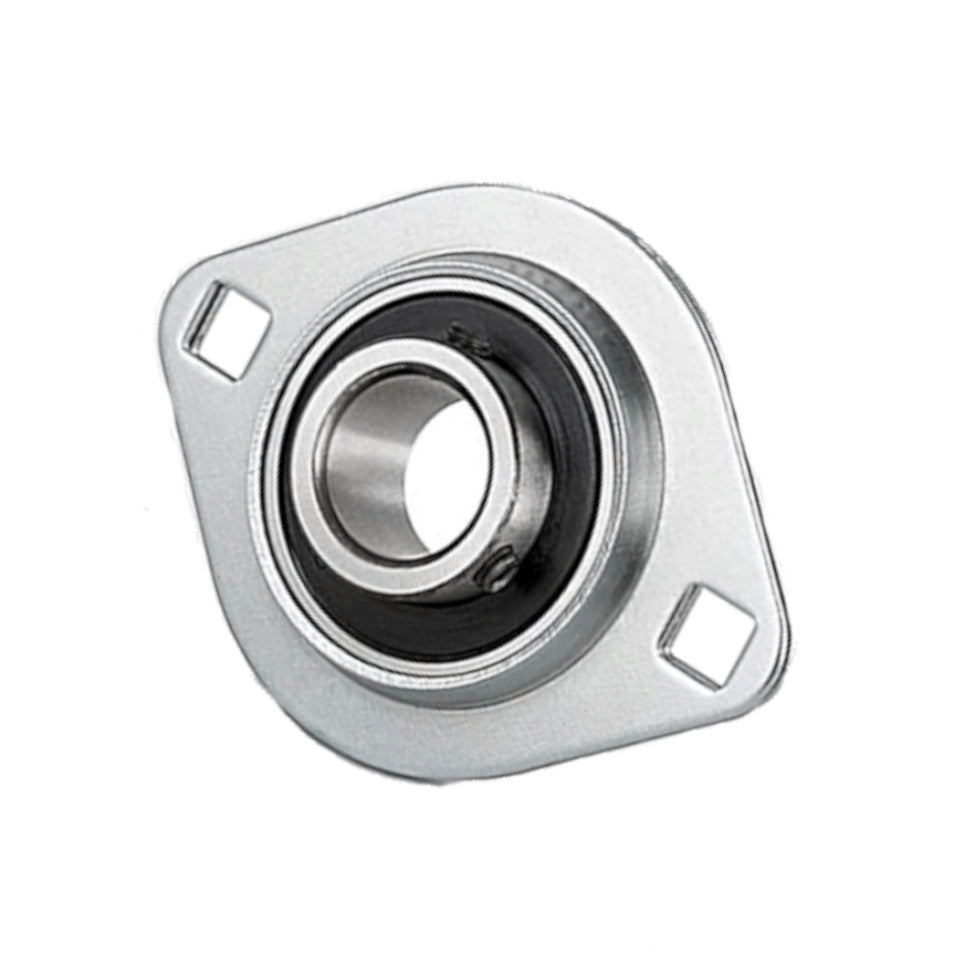

BKL Pressed steel housings are made from mild steel strip and are zinc plated. These units provide simple and effective bearing arrangements capable of accommodating moderate misalignment from mounting errors. They are easily mounted onto commercial shafting and are particularly useful where fabricated machine frames are employed.

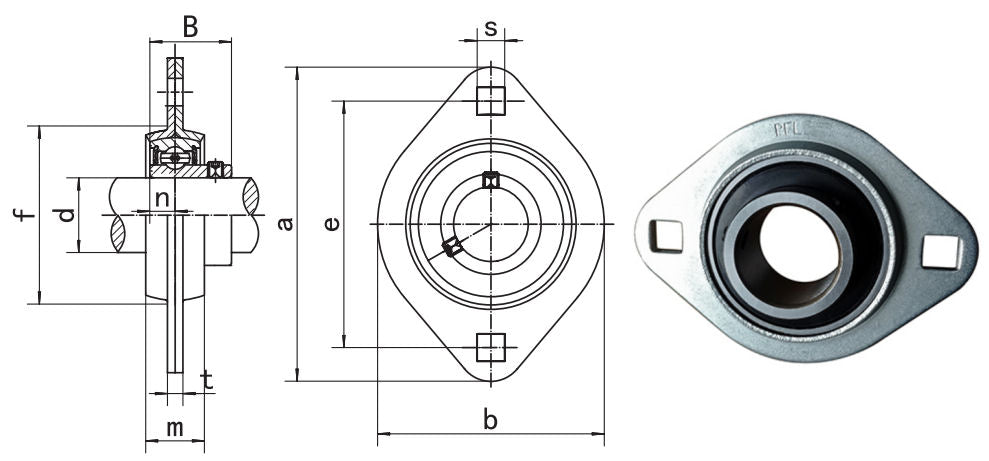

Dimensions: (mm)
d: 1 Inch
a: 95
e: 76
b: 71
m: 18
S: 9
t: 4
f: (min) 60
B1: 27
n: 7.5
Bolt size: M8
Bearing No: SB205
-16
Housing No: PFL205
Features: Set screw locking
Bearing Material: Steel
Housing Material: Pressed steel zinc plated
Lubrication: Standard grease
Sealing: Standard seals
Weight: 0.25kg
Dynamic Load Rating: 14000 N
Static Load Rating: 7850 N
