SBPP207 Budget Brand Pressed Steel Pillow Block Bearing 35mm Bore

In stock

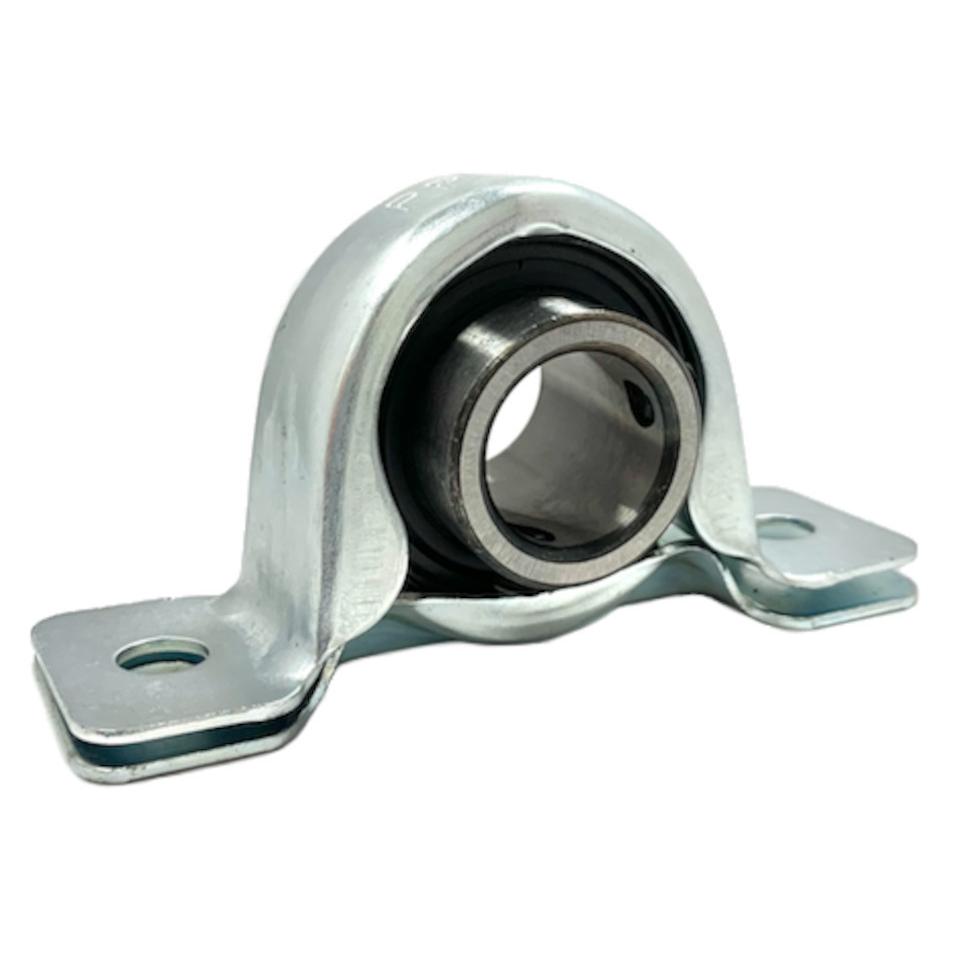

2 Bolt pressed steel pillow block bearing unit with flat back insert 35mm bore, bearing no SB207 , housing no PP207

$15.00 exc.VAT
🚚 Free UK Mainland Delivery Over £50 ex VAT

Product details

  • Quality Budget
  • Vendor BKL Brand
  • SKU SBPP207-BUDGET
  • Inside diameter (d) 35mm
Pressed steel housings are made from mild steel strip and are zinc plated. These units provide simple and effective bearing arrangements capable of accommodating moderate misalignment from mounting errors. They are easily mounted onto commercial shafting and are particularly useful where fabricated machine frames are... Read full description ↓ Show less ↑
Pressed steel housings are made from mild steel strip and are zinc plated. These units provide simple and effective bearing arrangements capable of accommodating moderate misalignment from mounting errors. They are easily mounted onto commercial shafting and are particularly useful where fabricated machine frames are employed.

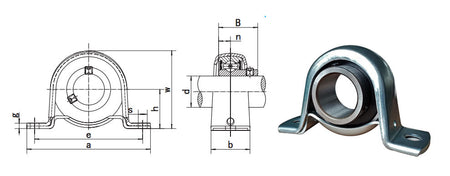

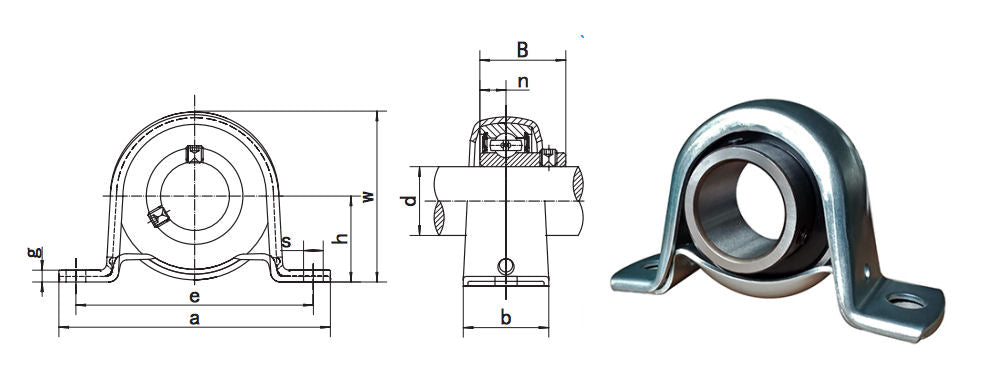

Dimensions: (mm)
d: 35
h: 39.7
a: 129
e: 106
b: 42
S: 11.5
g: 4.6
w: 78.0
B: 32
n: 8.5

Bolt size: M10

Bearing No: SB207
Housing No: PP207

Weight: 0.63kg

Dynamic Load Rating: 25700 N
Static Load Rating: 15200 N
